RCI Conekt (13.56MHz) Credential Series

Name: RCI Conekt (13.56MHz) Credential Series
Brand: dormakaba
SKU: DK_70100

RCI Conekt credentials are dormakaba's high frequency (13.56 MHz) MIFARE DESFire EV2 credential series for RCI Conekt CSR Series high security access control readers. Each RCI Conekt card or fob is ISO 14443-A compliant with 2K memory as standard.

The series is available in clamshell, ISO graphics quality card, magnetic stripe card and key fob styles, plus the CMC-2 mobile credential for Bluetooth Low Energy (BLE) enabled smartphones. The DE2-125 dual technology card combines 13.56 MHz and 125 kHz and functions with both the RCI CSR high frequency and PCR low frequency reader series.

Customized credential numbering and artwork are available.

MIFARE DESFire EV2 smartcard technology at 13.56 MHz
ISO 14443-A compliant with 2K memory standard
Clamshell, ISO graphics quality, magnetic stripe and key fob styles, plus the CMC-2 mobile credential
DE2-125 dual technology card for both 13.56 MHz CSR and 125 kHz PCR readers
Customized credential numbering and artwork available

Product Details

The RCI Conekt 13.56 MHz (DESFire EV2) credential series includes:

CMC-2 mobile credential
CSC-2 clamshell card
CSM-2P ISO graphics quality card
CSM-2S ISO graphics quality card with magnetic stripe
CSK-2 key fob
DE2-125 dual 13.56 MHz and 125 kHz dual technology card (functions with the RCI CSR and PCR high and low frequency reader series)

These RCI Conekt credentials function with these readers:

RCI CSR-35L
RCI CSR-6.2L
RCI CSR-6.4L
K-SMART3 (Rev 19C or newer)

Technical Details

Technology: Smartcard MIFARE DESFire EV2
Frequency: 13.56MHz
Memory: 2K standard
ISO: ISO 14443-A
Material: CSC-2 ABS; CSM-2P and CSM-2S PET composite with PEV core; CSK-2 ABS with stainless steel frame

Components

CMC-2 mobile credential

Mobile credential supporting BLE-enabled smartphones. Read range: up to 15 ft (4.6 m).

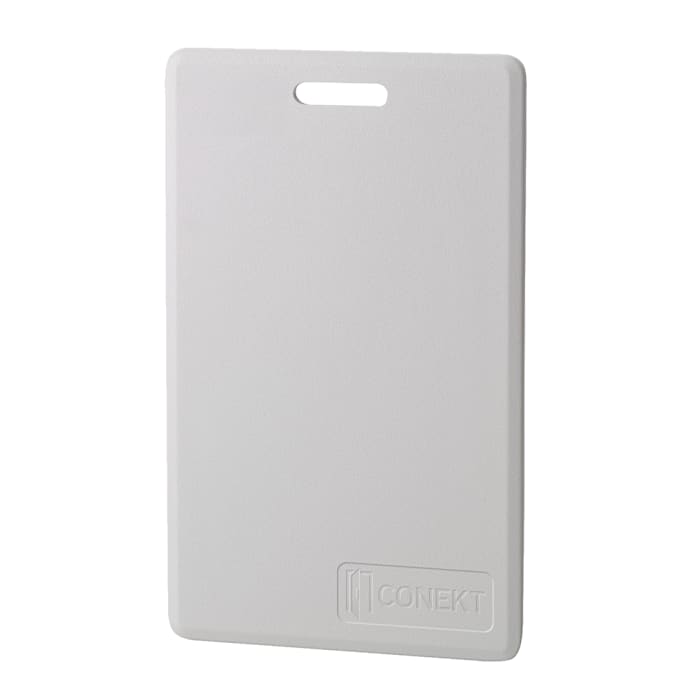

CSC-2

Clamshell-style, printable. ISO 14443 compliant, 2K memory standard. Read range: up to 2.25 in. (57 mm).

CSM-2P

ISO-style composite card. ISO 14443 compliant, 2K memory standard. Read range: up to 2.25 in. (57 mm).

CSM-2S

ISO-style composite card with magnetic stripe. ISO 14443 compliant, 2K memory standard. Read range: up to 2.25 in. (57 mm).

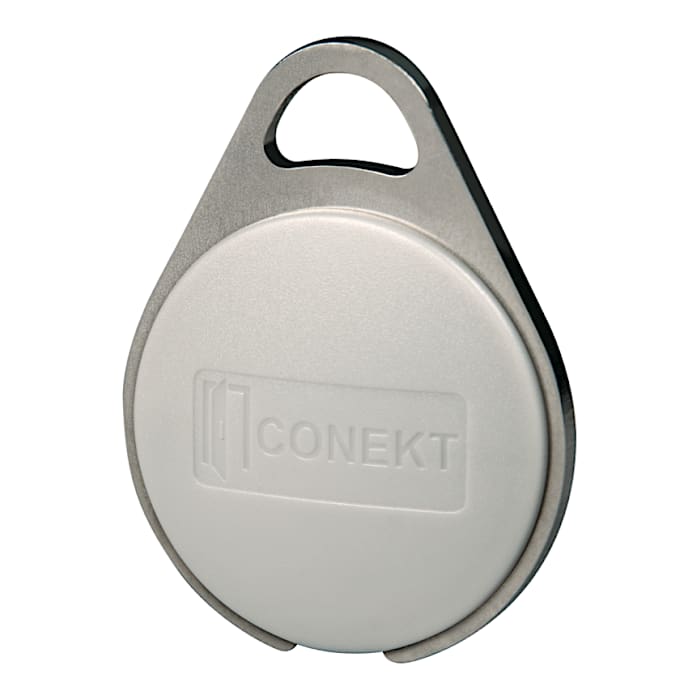

CSK-2

Key fob. ISO 14443 compliant, 2K memory standard. Read range: up to 1 in. (25 mm).

These credentials function with the 13.56 MHz high frequency readers

CSR-35L Mobile (BLE/contactless smartcard reader)
CSR-6.4L Mobile (BLE/contactless smartcard keypad reader)
CSR-6.2L Mobile (BLE/contactless smartcard mullion keypad reader)

Applications

RCI Conekt credentials are suitable for use in a wide range of applications, including retail and commercial, industrial, education and healthcare facilities.
