RCI CSR Series 13.56MHz Mobile-Ready Readers

Name: RCI CSR Series 13.56MHz Mobile-Ready Readers
Brand: dormakaba
SKU: DK_30102

The RCI Conekt CSR Series is a line of 13.56 MHz mobile-ready readers from dormakaba for electronic access control. Each RCI Conekt reader is a contactless smartcard reader with mobile access support: it reads clamshell cards and key tags as well as mobile credentials loaded on Bluetooth Low Energy (BLE) enabled smartphones.

The readers are based on the LEGIC® contactless radio frequency identification (RFID) platform. They interface with a wide range of electronic access control systems through either the legacy Wiegand output or the bi-directional Open Supervised Device Protocol (OSDP).

Security features include MAXSecure™ and ValidID™, and the readers support both sector reads and card serial number (CSN) reads. Three models are available: the CSR-35L mullion or single-gang reader, the CSR-6.4L single-gang keypad reader and the CSR-6.2L mullion keypad reader.

RCI CSR Series 13.56MHz Mobile-Ready Readers

Reads Conekt BLE mobile credentials as well as traditional physical credentials
Smartphone wallet app securely stores mobile credentials, with one-time registration and no disclosure of private information
Cloud-based delivery of mobile credentials
Supports industry standard and custom formats
Readers ordered with OSDP support are OSDP Verified by the Security Industry Association (SIA)
Suitable for indoor and outdoor use
125 kHz standard frequency reader models are also available (see the RCI PCR Series)

Product Details

Technical Details

Frequency: 13.56 MHz
Interface: Wiegand or Open Supervised Device Protocol (OSDP)
Read range, physical credentials: CSR-35L up to 1.5 in. (38 mm); CSR-6.4L and CSR-6.2L up to 2 in. (51 mm)
Read range, mobile credentials: up to 15 ft (4.6 m)
Full specifications: see the fact sheet in Downloads

Components

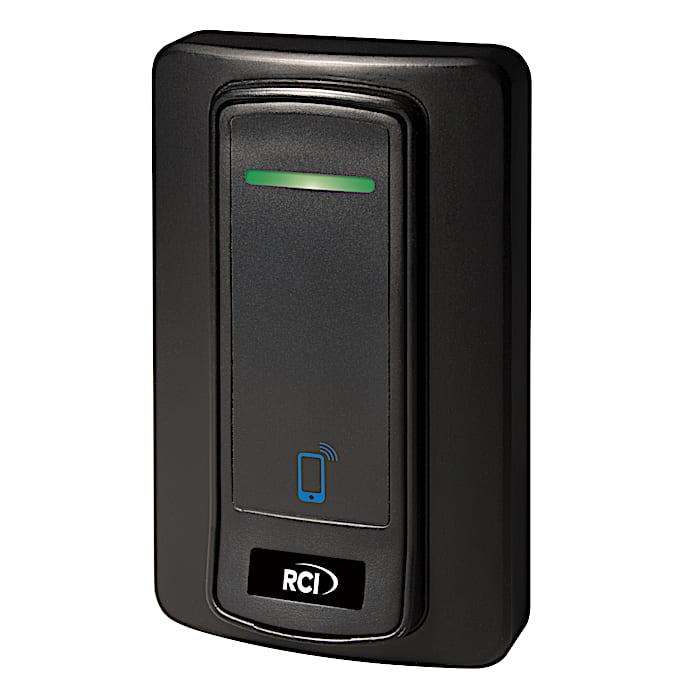

CSR-35L Mobile (BLE/contactless smartcard reader)

Mobile-ready mullion and single-gang wall switch box mount contactless smartcard reader. Read range: physical credentials up to 1.5 in. (38 mm); mobile credentials up to 15 ft (4.6 m).

CSR-6.4L Mobile (BLE/contactless smartcard keypad reader)

Mobile-ready single-gang mount contactless smartcard keypad reader. Read range: physical credentials up to 2 in. (51 mm); mobile credentials up to 15 ft (4.6 m).

CSR-6.2L Mobile (BLE/contactless smartcard mullion keypad reader)

Mobile-ready mullion mount contactless smartcard keypad reader. Read range: physical credentials up to 2 in. (51 mm); mobile credentials up to 15 ft (4.6 m).

Compatible credentials

CMC-2: mobile credential for BLE-enabled smartphones
CSC-2: clamshell-style card
CSM-2: ISO-style composite card
CSM-2S: ISO-style composite card with magnetic stripe
CSK-2: key fob
DE2-125: 13.56 MHz DESFire EV2 and 125 kHz dual frequency credential

Applications

RCI Conekt CSR Series readers are suitable for interior or exterior doors and entrance systems in a wide range of applications, including retail and commercial, industrial, education and healthcare facilities.
