Keyscan K-RX Series Wireless Receivers

The Keyscan K-RX series wireless receivers and transmitters (K-RX and K-RX-1) are gate receiver and fob solutions from dormakaba for parking garages, gates and other long-range access control applications. The Keyscan receivers transmit a signal via hardwired Wiegand for access control panel authentication.

Both the K-RX and the K-RX-1 install and configure with any Keyscan access control unit. When paired with Keyscan access control units and software, the wireless receiver permits tracking, usage reporting and assigning access privileges, including time and day restrictions. The receivers also function in non-Keyscan environments using a Wiegand protocol.

Fobs function from up to 200 ft (61 m). The receivers function with K-TX2 (HID 125 kHz coil), K-INTX2 (Indala 125 kHz coil) and K-TX2-1K (K-SMART 13.56 MHz coil) transmitters, and the transmitters act as a regular fob when used within the facility.

  • Transmits a signal via hardwired Wiegand for access control panel authentication
  • Fobs function from up to 200 ft (61 m)
  • Functions with K-TX2 (HID 125 kHz coil), K-INTX2 (Indala 125 kHz coil) and K-TX2-1K (K-SMART 13.56 MHz coil) transmitters
  • Transmitters act as a regular fob when used within your facility
  • Rolling 40-bit code with a 256-bit encryption key for anti-sniffing and anti-playback protection

Product Details

  • Fast installation with a Keyscan access control unit; simple fob enrollment in Keyscan software; one cardholder number for all radio frequency (RF) activations and proximity activations
  • Allows integration to gate and garage applications without costly trenching or installation of pedestals to mount readers
  • Permits tracking, usage reporting and assigning access privileges (including time and day restrictions) when used with Keyscan access control units and software
  • Fobs work in long-range RF mode as well as standard proximity format for other access controlled doors
  • Fobs may be ordered with Keyscan K-SMART 13.56 MHz (K-TX2-1K), HID 125 kHz (K-TX2) or Indala 125 kHz (K-INTX2) coil sets
  • Employs a rolling 40-bit code combined with a 256-bit encryption key for anti-sniffing and anti-playback protection
  • Available in 4-channel fobs
  • Functions in non-Keyscan environments using a Wiegand protocol

Components

Receivers

  • K-RX wireless receiver
  • K-RX-1 wireless receiver

Functions with these transmitters

  • K-TX2-1K (K-SMART 13.56 MHz)
  • K-TX2 (HID 125 kHz)
  • K-INTX2 (Indala 125 kHz)
  • WRT-2H (two button)
K-RX Series

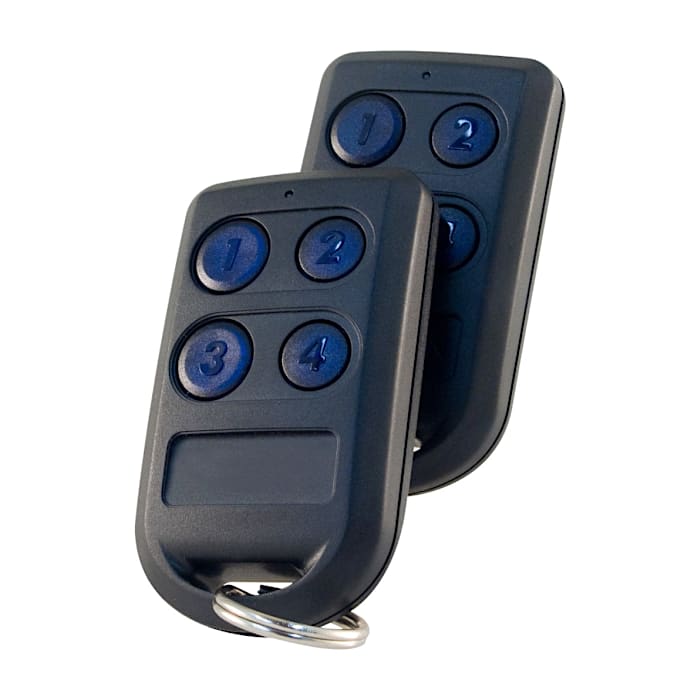

K-TX2 FOBs

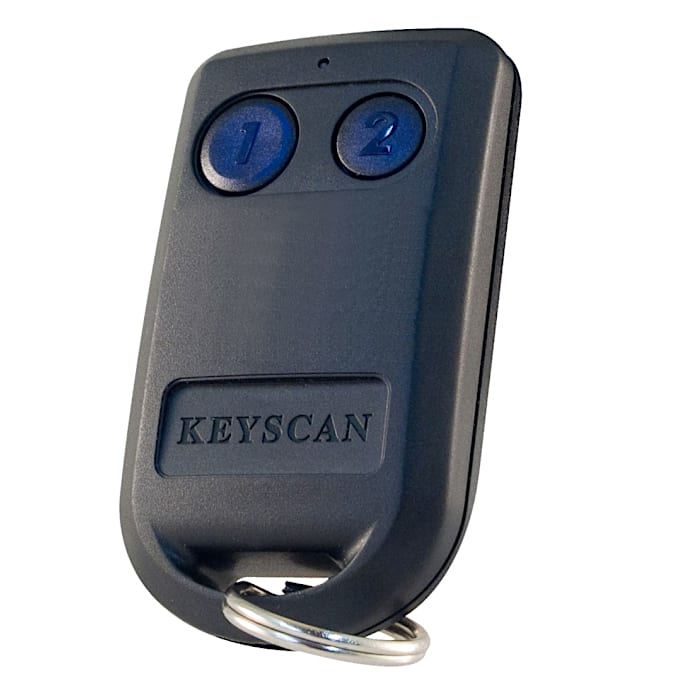

WRT-2H
