RCI 5460/F5460 Series No Cut ANSI Electric Strikes

The RCI 5460 series ANSI "no-cut” electric strikes is an electric strike that can be installed without needing to cut a door frame or perform any type of modification to the existing structure. The RCI 5460 is a retrofit solution best suited for cylindrical locksets and can be installed in hollow metal door frames.

The RCI 5460 features a special keeper ramp allows the latch bolt to enter or exit from the strike cavity without frame cutting. The strikes can be configured to fail-safe or fail-secure on site and are particularly effective for fire rated doors.

5460

Product Details

  • No frame cutting is required – Special ramp design allows the latch bolt to enter or exit from an unmodified frame, allowing for
    quick and easy installation
  • Non-handed fully reversible
  • Field selectable fail-safe or fail-secure
  • Static strength 1,500 lbs (680Kg)
  • Dynamic strength 70 ft-lbs
  • Endurance 250,000 cycles UL tested, 1,000,000 cycles factory tested
  • Brushed stainless steel (US32D) finish available
  • Latch monitor available (5460M; F5460M)
  • Comes with 1 square and 1 radius cornered 4-7/8” faceplate
  • 3 year warranty

Technical Details

Patents, Approvals, and Listings

  • UL 1034 burglary resistant listed: BP10269
  • UL 294 Access Control System listed: BP10269
  • UL 10C 3-hour (F5460)
  • Patent: US8833814B2 (US)

Current draw

  • 300mA/12VDC
  • 150mA/24VDC

Voltage

  • Dual 12/24

Reversible Fail Safe or Fail Secure

  • Yes

Latch throw

  • 9/16”

Components

Models:

  • 5460
  • 5460M (latch monitor)
  • F5460 (fire-rated)
  • F5460M (fire-rated; latch monitor)

5460

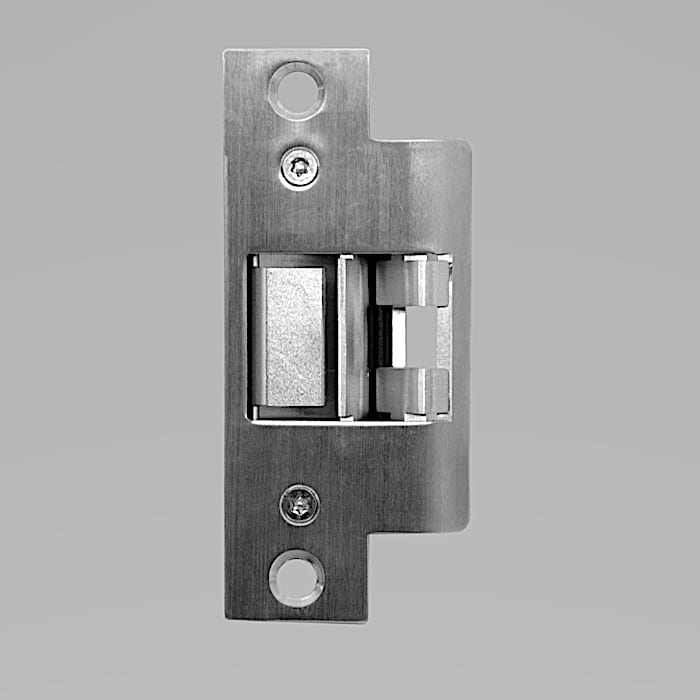

5460M

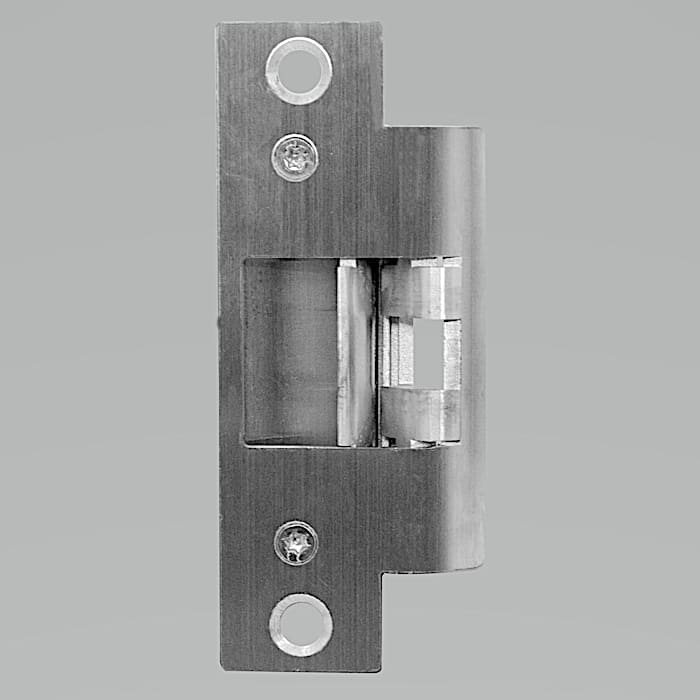

5460-ST
