RCI 7 Series Centerline

The dormakaba RCI 7 Series is a centerline electric strike for 5/8 in. (16 mm) latch projection, with various faceplate options to match most frame types. It works with aluminum, cylindrical and centerline mortise locks and with exit devices, on door thicknesses from 1-3/8 to 2-3/8 in. (35 to 60 mm).

Installation: the cut-out depth is 1-1/2 in. (38 mm), and installers can adjust the strike pivot horizontally by up to 1/8 in. (3.2 mm) for precise alignment. Mounting tabs, fasteners and a trim plate to cover an irregular frame cut-out are included. The strike is non-handed.

Strength and power: 500 lbf (2,224 N) static and 70 ft-lb (95 J) dynamic, 250,000 cycles. The strike draws 280 mA at 12 VDC on 11 to 16 VAC, 12 VDC or 24 VAC/VDC, and is available in fail-secure (locked without power) and fail-safe (unlocked without power) versions. It is UL 1034 (Underwriters Laboratories) burglary-resistant listed and carries a 5 year limited warranty.

  • Accommodates 5/8 in. (16 mm) latch projection; faceplate options for most frame types
  • 1-1/2 in. (38 mm) cut-out depth; 1/8 in. (3.2 mm) horizontal adjustment
  • Door thicknesses 1-3/8 to 2-3/8 in. (35 to 60 mm)
  • 500 lbf (2,224 N) static and 70 ft-lb (95 J) dynamic; 250,000 cycles
  • Available in fail-secure and fail-safe; non-handed
  • 280 mA at 12 VDC; 11 to 16 VAC, 12 VDC or 24 VAC/VDC
  • UL 1034 burglary-resistant listed; 5 year limited warranty

Product Details

  • Accommodates 5/8" in. (16mm) latch projection
  • 1/8" in. (3.2mm) horizontal adjustment
  • 1-1/2" in. (38mm) cut-out depth
  • Use with a wide range of door thicknesses, 1-3/8" to 2-3/8" in. (35 to 60mm)
  • Mounting tabs, fasteners and trim plate included
  • Non-handed
  • Trim plate covers an irregular frame cut-out
  • 280mA,11-16 VAC, 12 VDC or 24VAC/VDC (at 12VDC)
  • 500 lbf (2,224 N) static, 70 ft-lb (95 J) dynamic
  • 250,000 cycles
  • Available in fail-secure and fail-safe

Technical Details

  • Insert depth: 1-1/2 in. (38 mm)
  • Latch projection: 5/8 in. (16 mm)
  • Door thickness: 1-3/8 to 2-3/8 in. (35 to 60 mm)
  • Strength: 500 lbf (2,224 N) static, 70 ft-lb (95 J) dynamic
  • Endurance: 250,000 cycles
  • Voltage: 11 to 16 VAC, 12 VDC or 24 VAC/VDC; 280 mA at 12 VDC
  • Mode: fail-secure or fail-safe
  • Finish: Brushed Stainless Steel (32D)
  • UL 1034 burglary-resistant listed

Components

Accessories

  • 4/7JIG: standard profile frame prep jig, aluminum
  • LEK01: 1 in. (25 mm) lip extension kit for retrofit applications, black finish
  • LEK02: 2 in. (51 mm) lip extension kit for retrofit applications, black finish
  • LEK03: 3 in. (76 mm) lip extension kit for retrofit applications, black finish
  • SMT-01: strike marking template kit, aluminum
  • TP-47-5PK: trim plates, 5 pack, black finish
  • 930-LG: standard profile latch guard, 32D

Applications

  • Commercial Centers
  • Industrial Buildings
  • Educational Facilities
  • Retail Outlets
  • Health Care Facilities
  • Office Complexes
7 Series 7104 7304 Electric Strikes RCI EAD

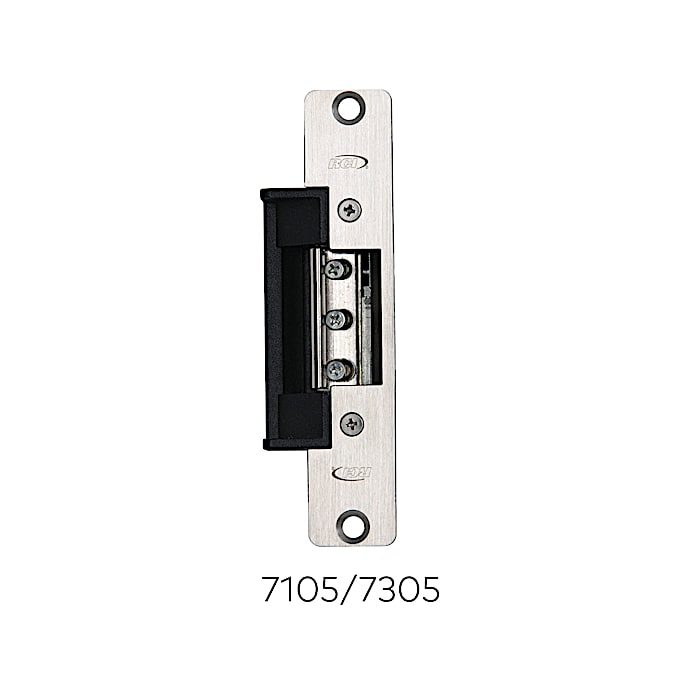

7 Series 7105 7305 Electric Strikes RCI EAD

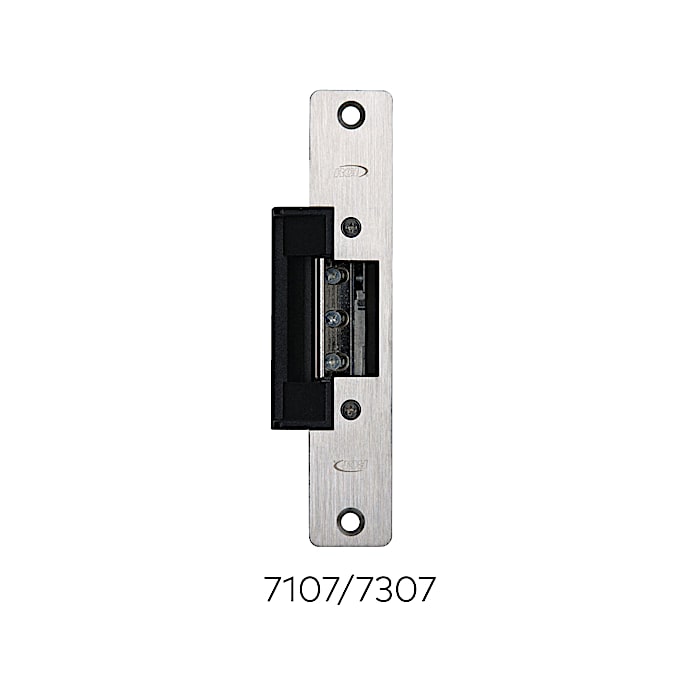

7 Series 7107 7307 Electric Strikes RCI EAD

Product Downloads
