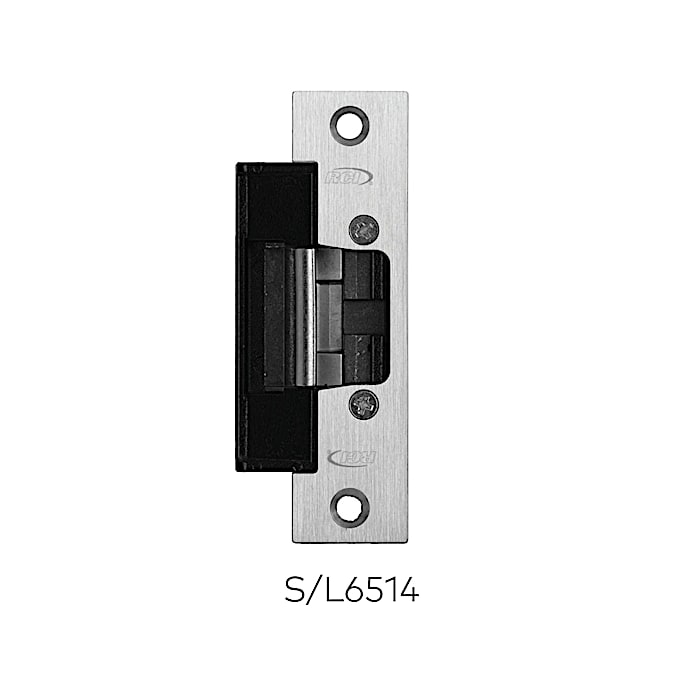

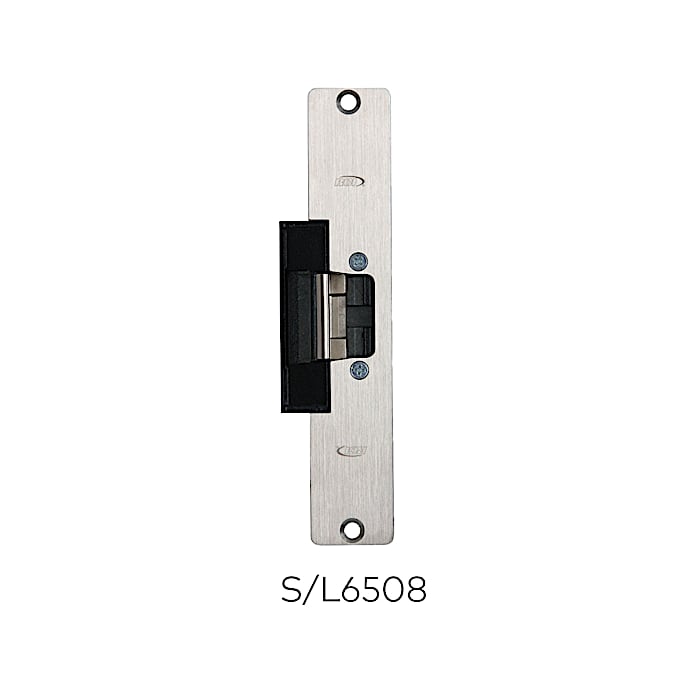

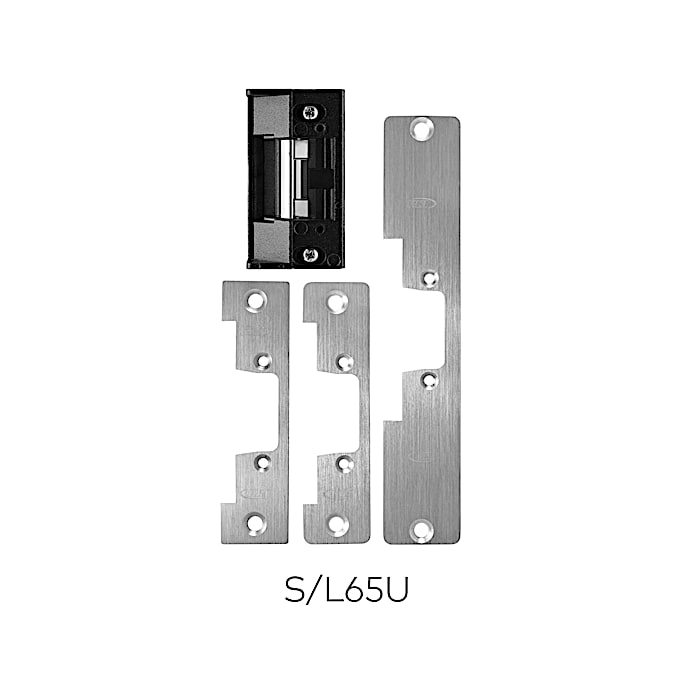

RCI 6 Series Centerline

The dormakaba RCI 6 Series is a heavy duty electric strike for centerline latches, available in a standard profile for 3/4 in. (19 mm) latch projection and a low profile for 1/2 in. (12.7 mm) or 5/8 in. (16 mm) latch projection. The series combines several frequently requested features in one strike: a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment and plug-in wire connectors.

Installation: 1/4 in. (6.4 mm) horizontal adjustment makes installations faster and easier, and a trim plate covers an irregular frame cut-out. The strike is non-handed. Because one strike covers both lock modes and several voltages, installers can carry less strike inventory.

Strength and power: 1,500 lbf (6,672 N) static and 70 ft-lb (95 J) dynamic, 500,000 cycles, certified to ANSI/BHMA A156.31, Grade 1 with the 04 and 14 faceplates; Grade 2 with 1,000 lbf (4,448 N) static for the 05, 07 and 08 faceplates. The strike is factory tested to over 1 million cycles and draws 375 mA at 12 VDC on field-selectable 12/24 VDC or 12 to 24 VAC. Lock mode is field-selectable fail-secure (stays locked without power) or fail-safe (unlocks without power).

Monitoring and listings: optional latch and keeper monitor models are available. The 6 Series is UL 294 (Underwriters Laboratories, 6th edition) listed as an access control unit accessory and UL 1034 burglary-resistant listed. 10 year limited warranty.

  • Standard profile for 3/4 in. (19 mm) latch projection; low profile for 1/2 in. (12.7 mm) or 5/8 in. (16 mm)
  • Field-selectable fail-secure or fail-safe, no tools necessary
  • 1,500 lbf (6,672 N) static and 70 ft-lb (95 J) dynamic, 500,000 cycles (Grade 1, 04 and 14 faceplates); Grade 2, 1,000 lbf (4,448 N) static for 05, 07 and 08 faceplates
  • Multi-voltage single solenoid: 375 mA at 12 VDC; field-selectable 12/24 VDC or 12 to 24 VAC
  • 1/4 in. (6.4 mm) horizontal adjustment; plug-in wire connectors; non-handed
  • Optional latch and keeper monitor models
  • UL 294 and UL 1034 listed; 10 year limited warranty

Product Details

  • Standard profile accommodates 3/4 in. (19 mm) and low profile accommodates 1/2 in. (12.7 mm) or 5/8 in. (16 mm) latch projections
  • 1/4 in. (6.4 mm) horizontal adjustment
  • Plug-in wire connectors
  • Trim plate included to cover an irregular frame cut-out
  • Non-handed
  • 375 mA, field-selectable 12/24 VDC or 12 to 24 VAC (at 12 VDC)
  • 1,500 lbf (6,672 N) static, 70 ft-lb (95 J) dynamic (04 and 14 faceplates only; Grade 2, 1,000 lbf (4,448 N) static for 05, 07 and 08 faceplates)
  • 500,000 cycles (04 and 14 faceplates only)
  • Field-selectable fail-secure and fail-safe
  • Optional latch and keeper monitor models available

Technical Details

  • Standard insert depth: 1-3/16 in. (30 mm)
  • Low profile insert depth: 1-1/16 in. (27 mm)
  • Latch projection: standard profile 3/4 in. (19 mm); low profile 1/2 in. (12.7 mm) or 5/8 in. (16 mm)
  • Strength: 1,500 lbf (6,672 N) static, 70 ft-lb (95 J) dynamic (04 and 14 faceplates); 1,000 lbf (4,448 N) static (05, 07 and 08 faceplates)
  • Endurance: 500,000 cycles (04 and 14 faceplates)
  • Voltage: field-selectable 12/24 VDC or 12 to 24 VAC; 375 mA at 12 VDC
  • Mode: field-selectable fail-secure and fail-safe
  • Monitoring: optional latch and keeper monitor models
  • Finish: Brushed Stainless Steel (32D)
  • Factory tested to over 1 million cycles of operation
  • UL 294 listed for Access Control Unit Accessory (6th edition)
  • UL 1034 burglary-resistant listed
  • Certified to ANSI/BHMA A156.31, Grade 1; endurance 500,000 cycles (04 and 14 faceplates only; Grade 2, 1,000 lbf (4,448 N) static for 05, 07 and 08 faceplates)
  • Patents: US 6,874,830 and 7,144,053; Canada 2,405,642

Components

Accessories

  • S6JIG: standard profile frame prep jig, aluminum (for S6504 and S6514)
  • L6JIG: low profile frame prep jig, aluminum (for L6504 and L6514)
  • LEKS601: 1 in. (25 mm) lip extension kit for retrofit applications, black finish (standard profile)
  • LEKS602: 2 in. (51 mm) lip extension kit for retrofit applications, black finish (standard profile)
  • LEKS603: 3 in. (76 mm) lip extension kit for retrofit applications, black finish (standard profile)
  • LEKL601: 1 in. (25 mm) lip extension kit for retrofit applications, black finish (low profile)
  • LEKL602: 2 in. (51 mm) lip extension kit for retrofit applications, black finish (low profile)
  • LEKL603: 3 in. (76 mm) lip extension kit for retrofit applications, black finish (low profile)
  • S/L6504DD: lip bracket and radius faceplate for aluminum double doors with flat astragal (for S/L6504)
  • S/L6507DD: lip bracket and radius faceplate for aluminum double doors with flat astragal (for S/L6507)
  • SMT-01: strike marking template kit, aluminum
  • TP-S6-5PK: trim plates, 5 pack, black finish (standard profile)
  • TP-L6-5PK: trim plates, 5 pack, black finish (low profile)
  • 940-LG: high profile latch guard, 32D

Applications

  • Commercial Centers
  • Industrial Buildings
  • Educational Facilities
  • Retail Outlets
  • Health Care Facilities
  • Office Complexes
6 Series SL6504 Electric Strikes RCI EAD

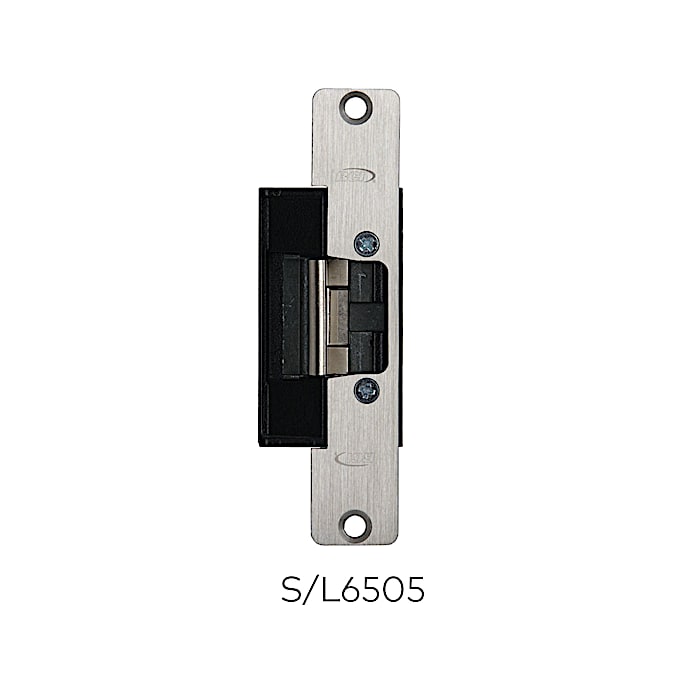

6 Series SL6505 Electric Strikes RCI EAD

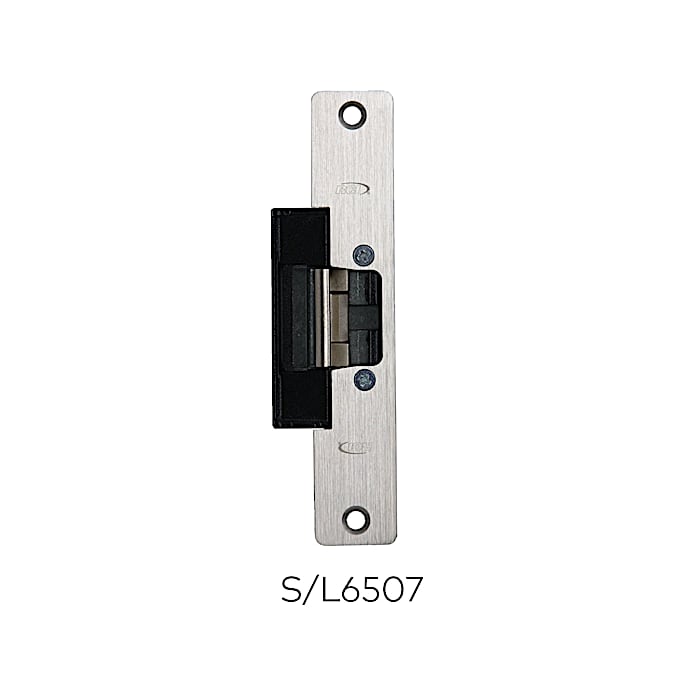

6 Series SL6507 Electric Strikes RCI EAD
