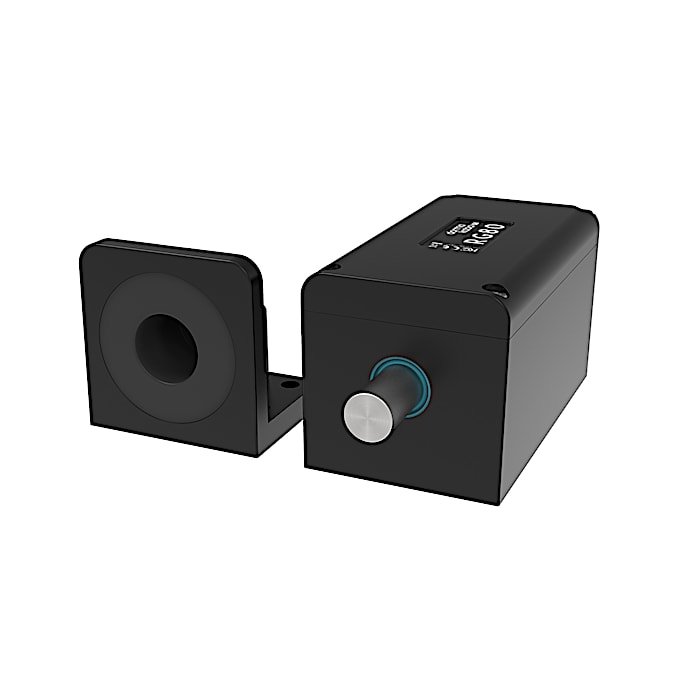

RG80 Weatherproof Lock

The RG80 is the foremost high-strength lock designed for securing gates, roller doors, shipping containers and any other commercial door or entry way.
Designed with weatherproofing as one of its critical features the RG80 offers an impressive IP67 weather rating an E-coated aluminium lock body and strike for excellent corrosion resistance.
With full monitoring outputs including tamper-proof detection along with user configurable control settings, the RG80 is the perfect indoor and outdoor locking solution.

Product Details

Technical Details

Dimensions
Lock – RG80 150L x 80W x 70D(mm)
L Strike - RG303A 80L x 80W x 60D(mm)

Door Gap: 15mm Maximum
Dynamic Strength: 200 Joules
Holding Force: 39,000N (4000Kg)
Weather Rating: IP67
Cycle Tested: 300,000 cycles
Voltage at Lock: 12-24VDC +/-15%

Current Usage
Standby: 40mA/12VDC, 30mA/24VDC
Initial Power Up: 1.0A/12VDC, 0.5A/24VDC
Heater On (24VDC only): 2.0A/24VDC

Monitors Switches: 24VDC, 0.25A
Operating Temperature: -35oC ~ +70oC
Operating Mode: Fail Secure/Fail Secure
Bolt Pin: Stainless Steel, ø18mm, 30mm stroke

Material
Lock/Strike Body: Aluminium: A383
Bolt Pin: Stainless steel: 304
Strike Ring: UV Stabilized ABS

Functionalities

Extreme Security
• Automatic deadbolting, 18mm diameter stainless steel bolt pin
• 39,000N holding force (4,000Kg)

Varied Voltage Input
• Input voltage from 12VDC - 24VDC

Complete Monitoring
• Door position switch
• Bolt locked monitor
• Bolt unlocked monitor
• Anti-tamper detection monitor

Integrated Access Control
• Multiple attempts to lock and unlock
• User selectable fail safe / fail secure operation
• 3 user selectable control methods

Versatile Installation
• Horizontal or vertical installation

Security System Compatible
• Integrate with access control and alarm systems

Low Current Consumption
• With heater disabled, the RG80 will draw as little as 30mA in standby and only 300mA in operation at 12VDC
