RCI 913 Microwave Motion Switch

The dormakaba RCI 913 Microwave Motion Switch is a contact-free microwave motion sensor door switch that controls automatic doors and openings. The touchless switch uses Doppler radar technology, which makes it suited to sterile environments such as healthcare and food processing.

Because it can be mounted behind a non-reflective surface in a room or hallway, the RCI 913 can blend into the interior as a clean, non-visible solution. The detection pattern depth is adjustable from 4 to 24 in. (102 to 610 mm).

The RCI 913 is available in black or white, operates on 12 to 24 VDC/VAC with a contact rated at 1 A, and includes a water-resistant gasket for durability when exposed to water or cleaning products.

  • Doppler radar technology allows touchless use in sterile environments such as healthcare and food processing plants
  • Mounts behind a non-reflective surface for a clean, non-visible installation
  • Adjustable pattern depth from 4 to 24 in. (102 to 610 mm)
  • No wearing parts, for longer product life
  • Water-resistant foam gasket for exposure to water or cleaning products
  • 3 year limited warranty

Product Details

  • Doppler radar technology allows for use in sterile environments (healthcare, food processing plants)
  • Can be placed unobtrusively in a room or hallway when mounted behind a non-reflective surface, for a clean non-visible solution
  • Includes single and double gang plate
  • Variable adjustment of pattern depth from 4 to 24 in. (102 to 610 mm)
  • No wearing parts, for increased product life
  • Water-resistant foam gasket provides increased durability when the product is exposed to water or cleaning products
  • 12 to 24 VDC/VAC
  • Contact rated at 1 A
  • Available in black or white finish
  • 3 year limited warranty

Technical Details

  • Dimensions: 4-5/8 in. W x 4-5/8 in. H (117 mm x 117 mm) and 2-3/4 in. W x 4-5/8 in. H (70 mm x 117 mm)
  • Certifications: EMC, FCC, IC


Applications

  • Sterile environments (clean rooms, operating rooms, pharmaceutical manufacturing)
  • Healthcare facilities (hospitals, assisted living)
  • Food processing plants (helps eliminate cross-contamination)
  • Architectural applications where aesthetics are required
913 Black double gang plate

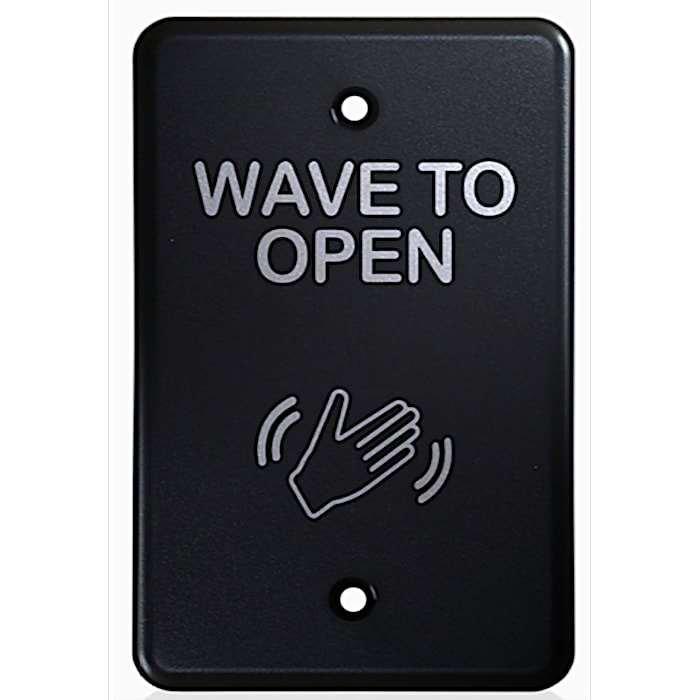

913 single gang plate
