RCI 9RCT433/9DRCR433 Transmitters and Receivers

The dormakaba RCI 9RCT433 and 9DRCR433 are transmitters and receivers for automatic door remote control. This wireless push plate receiver system is compatible with multiple automatic door remote control applications, including the RCI 9LP36 push plate, with delay or no delay programming.

The transmitters and receivers operate securely as a rolling code remote door system: a unique rolling code is generated each time the switch is activated. They are designed for operator flexibility and control: 100 transmitters can be programmed into a single receiver, a single transmitter code can be removed, and up to four separate wireless receivers can be activated by a single transmitter (4-button).

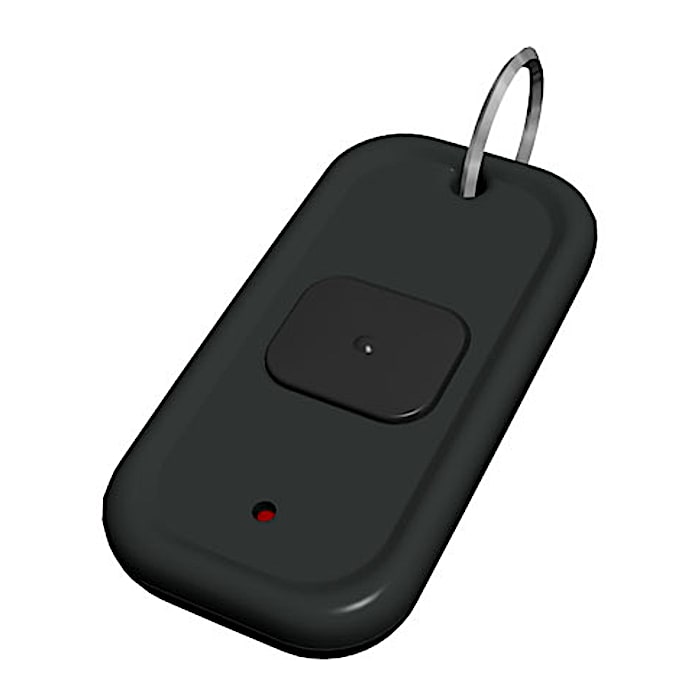

A red light-emitting diode (LED) indicator on the transmitter confirms transmission and battery life. The system is rated 12/24 VAC/VDC; the transmitter runs on 3 V or 9 V battery power and includes the terminals required to adapt to push plate switch terminals. Certifications: FCC, IC, CE.

  • Unique rolling code each time the switch is activated, for secure operation
  • Delay or no delay programming for multiple automatic door applications
  • 100 transmitters per receiver; single transmitter codes can be removed
  • Up to 4 separate wireless receivers activated by a single transmitter (4-button)
  • Red LED on the transmitter confirms transmission and battery life; FCC, IC and CE certified

Product Details

  • Operates with a unique rolling code each time the switch is activated
  • Multiple applications with delay or no delay programming
  • 100 transmitters can be programmed into a single receiver
  • Removal of a single transmitter code
  • Up to 4 separate wireless receivers can be activated by a single transmitter (4-button)
  • Red LED indicator on transmitter confirms transmission and battery life
  • 12/24 VAC/VDC
  • 3 year limited warranty

Technical Details

9RCT433/9DRCR433 Transmitters and Receivers

  • Dimensions: 2-3/4 in. W x 2-1/8 in. H x 1 in. D (70 mm x 54 mm x 25 mm)
  • Power: 3 V or 9 V battery (transmitter); 12/24 VAC/VDC
  • Interface: for use with push plates; includes the terminals required to adapt to the switch terminals
  • Certifications: FCC, IC, CE
  • Warranty: 3 year limited warranty

Applications

  • Low energy doors
  • Vestibule applications
433 Module Transmitters and Receivers Switches RCI EAD

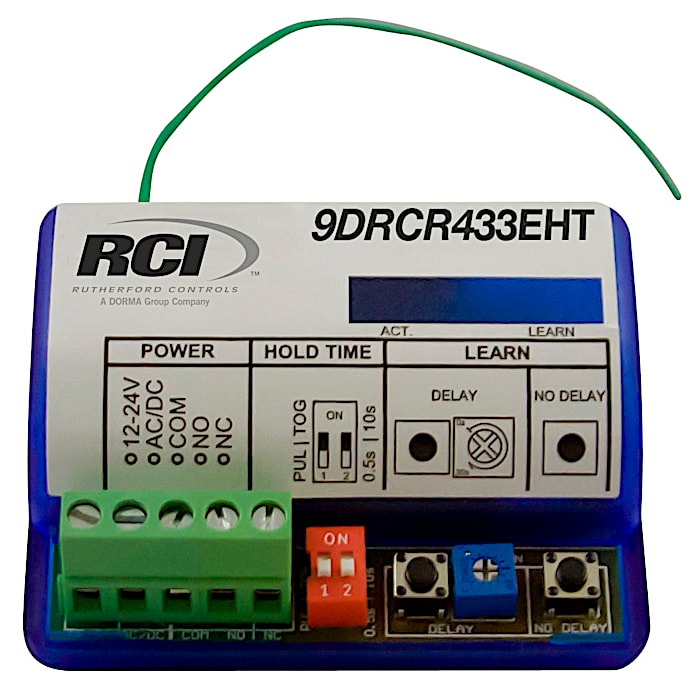

9DRCR433EHT Transmitters and Recievers Switches RCI EAD

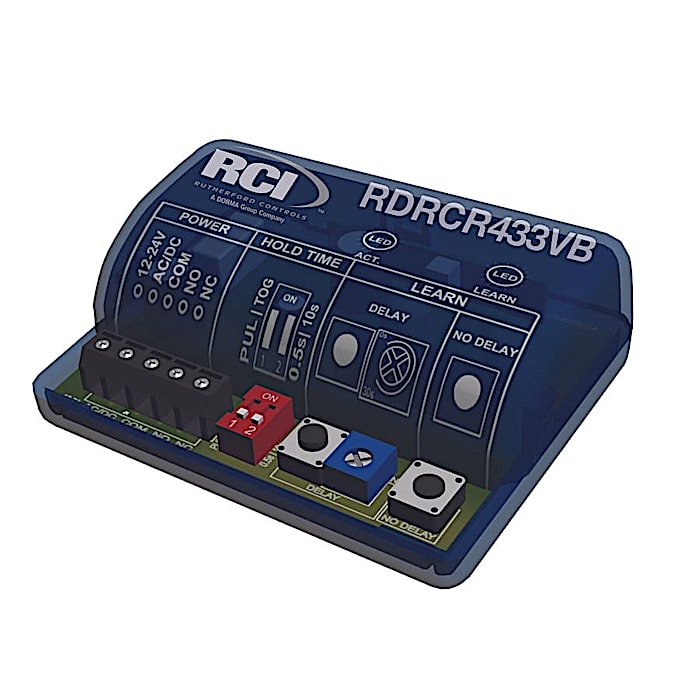

9DRCR433VB Transmitters and Recievers Switches RCI EAD
