Properties

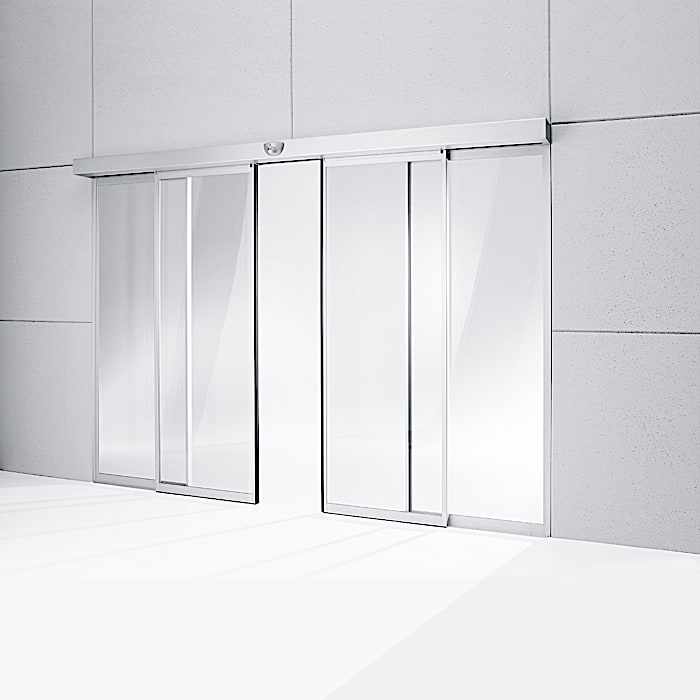

• The ES 200 T is the telescope version of the ES 200 and is modular.
• The basic mechanism is combined with different drive units (Drive Unit), which consist of control, motor and power supply.
• The model for escape and rescue routes is equipped with a redundant motor and control system and requires no rubber bands or clutch systems.
• The principle of operation makes the drives function very safe and easy to maintain.
• The drives are tested according to DIN 18650 / EN 16005 or AutSchR

Fields of application

• Double- or four-panel telescopic siding doors.
• As standard version (ES 200 T) or with approval for application in emergency exits and escape routes (ES 200 T-2D).

Technical specifications

• Opening widths: 800 to 4000 mm
• Door-panel weights: 2 x 75 kg or 4 x 75 kg

Supplementary equipment/options

• Various electromechanical locking devices
• Modules with special functions
• Electronic safeguarding of secondary closing edges

Technical specifications for escape-route version ES 200 T-2D:

• Opening width: 1000 to 4000 mm
• Door-panel weight: 2 x 75 kg or 4 x 65 kg
