Product Details
- Illuminated Keypad with separate controller to prevent unauthorized access by keypad tampering
- Multi-color LED and Built-in buzzer for status programming feedback or visual PIN entry confirmation
- All features are programmed entirely from the keypad
- Blue backlit keys for better visibility and operation in the dark
- Non-volatile EEPROM protects codes and instructions in case of power loss
- Suitable replacement for 9212 series
- 1 year warranty
Technical Details
- Voltage: 12-24 VAC/VDC
- Current: 103 mA Pull in, 50 mA Holding at 12VDC; 56 mA Pull in, 31 mA Holding at 24VDC
- Inputs: 2 REX inputs, 1 Door sensor input, 1 Tamper input
- Door sensor input for anti-tailgating operation to ensure higher security access control
- External tamper input for additional security
- Outputs: 2 Relays (NC/COM/NO) 10A/30VDC
- Dual relays to control door lock and other security devices
- PIN Codes: 1000 + 10 Users / 4, 5, or 6 digit
- Single gang surface mount
- Indoor/Outdoor application: Zinc alloy housing, Epoxy-sealed, IP65 compliant
- Dimensions:
- Keypad: 3-1/16” (78.5 mm) x 4-13/16” (122.8 mm) x 7/8” (22.8 mm)
- Control Module: 2-1/2”W x 2-7/8”H x 1/4”D (63mm x 73mm x ¼” (6 mm))
- Adjustable relay output time from 1 to 99 seconds or toggle (on/off)
- Operating temperature: -4°~140°F (-20°~60°C)
Components

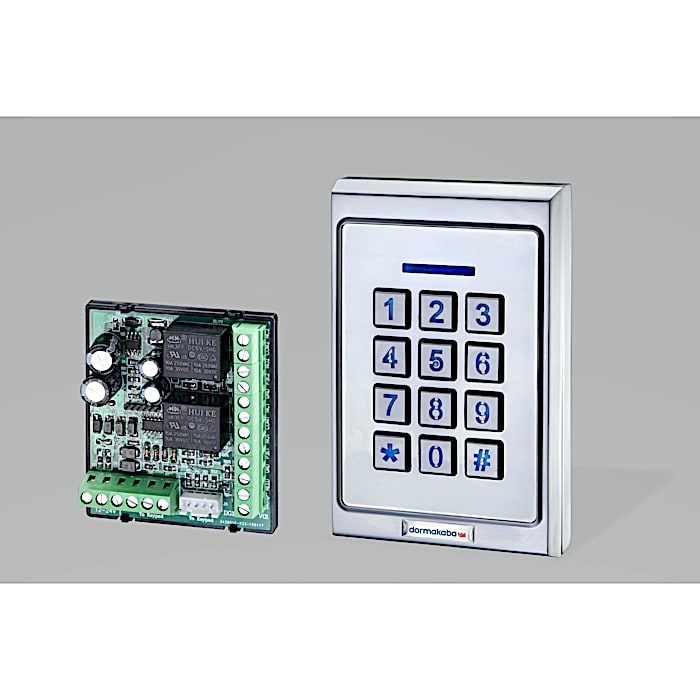

1 keypad with an attached 6ft wire harness
1 controller
1 hardware pack
1 installation guide
Applications
Most commonly used in low risk areas of access control to allow authorized entry based on the input of a code or PIN.
Some typical locations and scenarios where a keypad would be used, include:
- Closets and supply rooms
- Storage rooms
- Guest rooms
- Common areas
