RCI PCR 125kHz Mobile-Ready Readers

RCI Conekt comprises a contactless reader solution with mobile access support. Based upon the proven LEGIC® contactless digital radio frequency identification (RFID) platform, RCI Conekt readers interface with a wide range of electronic access control systems by complying with legacy Wiegand or the latest bi-directional Open Supervised Device Protocol (OSDP).

They offer value-add security features such as MAXSecure™ and ValidID™, and support both sector and card serial number (CSN) reads.

In addition to traditional contactless access credentials, such as clamshell cards and key tags, the platform also offers the option of mobile access credentials loaded on Bluetooth Low Energy (BLE)-enabled smartphones.

Smartphone wallet app securely stores mobile credentials
One-time registration without disclosure of private information
Cloud-based delivery of mobile credentials
Readers read Conekt BLE mobile credentials as well as traditional physical credentials
Supports industry standard and custom formats
Readers ordered with OSDP support are OSDP Verified by the Security Industry Association (SIA)
Suitable for indoor and outdoor use
Also available contactless smartcard 13.56MHz reader models (CSR Series)

Product Details

Technical Details

See fact sheet

Components

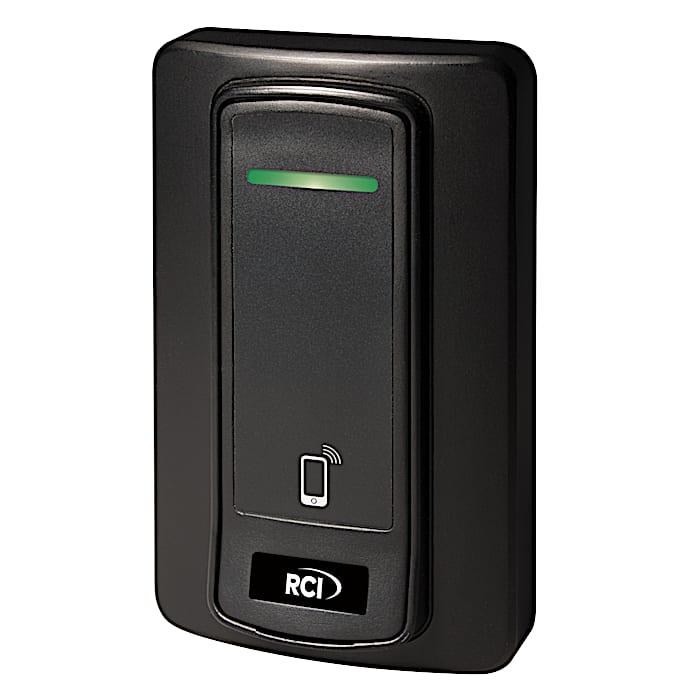

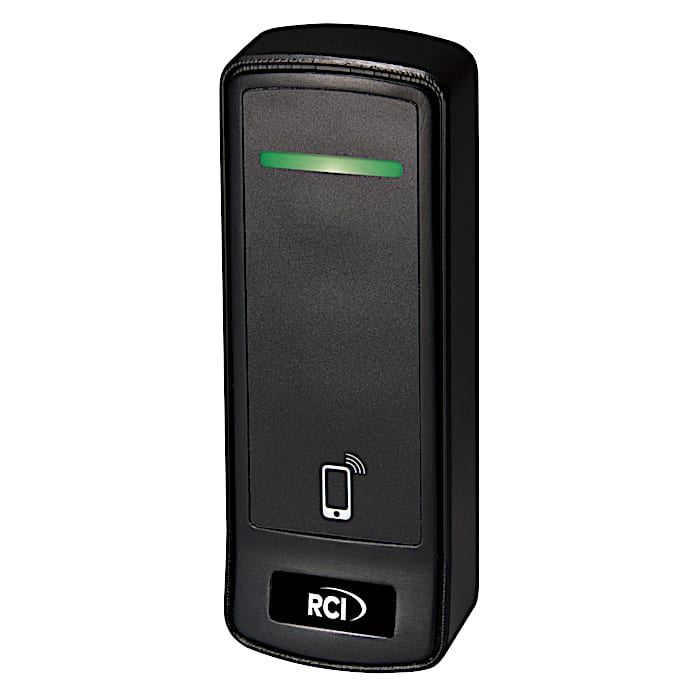

PCR-35L Mobile (BLE/Contactless Reader)
Mobile-ready mullion and single-gang wall switch box mount contactless reader.

Read Range:
Physical Credentials: Up to 1.5 inches (38 mm)
Mobile Credentials: Up to 15 feet (4.6 m)

PCR640L Mobile (BLE/Contactless Keypad Reader)
Mobile-ready single-gang mount contactless reader.

Read Range:
Physical Credentials: Up to 4 inches (102 mm)
Mobile Credentials: Up to 15 feet (4.6 m)

PCR-620L Mobile (BLE/Contactless Mullion Keypad Reader)
Mobile-ready mullion mount contactless reader.

Read Range:
Physical Credentials: Up to 4 inches (102 mm)
Mobile Credentials: Up to 15 feet (4.6 m)

Readers will function with these credentials:

CMC-2: Mobile credential supporting BLE-enabled smartphones
PSC-1-H: 125kHz clamshell credential
PSI-4-H: 125kHz image technology credential
PSK-3-H: 125kHz fob credential
PSM-2P-H: 125kHz ISO imageable credential
PSM-2S-H: 125kHz ISO imageable credential with magnetic stripe
PDT-1-H: 125kHz disc tag
DE2-125: 13.56MHz DESFire EV2 & 125kHz dual frequency credentials

Applications

These readers are suitable for interior or exterior doors and entrance systems in virtually all applications Retail and Commercial; Industrial; Education, Healthcare facilities and more.
