RCI 125kHz Keypad Reader Series

The dormakaba RCI 125kHz Keypad Reader Series includes the RCI Pyramid P-620-H-A and P-640-H-A, each a 125 kHz proximity keypad reader that combines a standard security proximity reader with a keypad. The P-620-H-A is a mullion mount 125 kHz keypad reader; the P-640-H-A is a single gang mount model.

Based on proven contactless digital radio frequency identification (RFID) technology, RCI Pyramid readers interface with a wide range of electronic access control systems by complying with either the legacy Wiegand protocol or the bi-directional Open Supervised Device Protocol (OSDP). They offer value-add features such as MAXSecure™ and fleaPower™ and can support several proximity card and tag technologies.

Both readers have a contactless read range up to 7 in. (178 mm), a four-state light-emitting diode (LED) indicator, 8-bit burst keypad output with 26-bit Wiegand standard, and are suitable for indoor and outdoor use.

  • MAXSecure™ security feature
  • Contactless read range up to 7 in. (178 mm)
  • Mullion mount (P-620-H-A) or single gang mount (P-640-H-A)
  • Wiegand or OSDP output interface
  • fleaPower™ energy conservation technology
  • Suitable for indoor and outdoor use
  • Limited lifetime warranty

Product Details

Technical Details

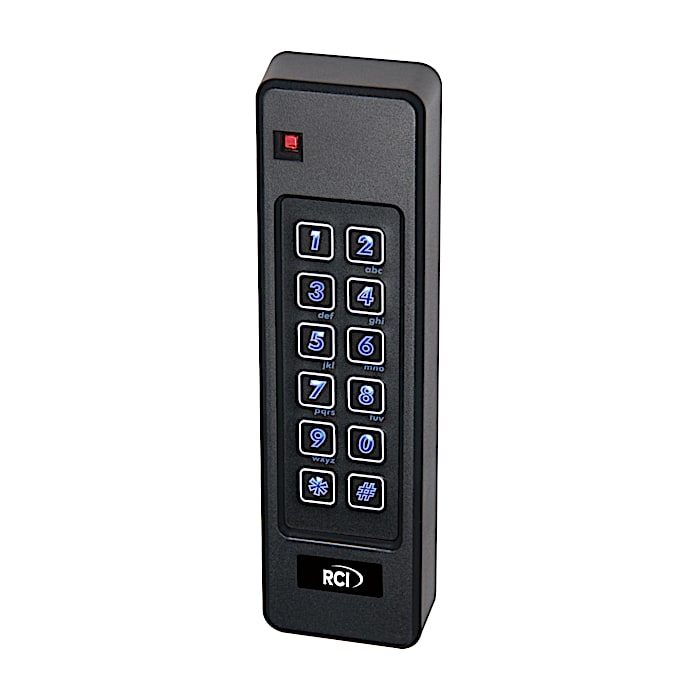

P-620-H-A

  • Technology: 125 kHz standard security mullion keypad reader
  • Dimensions: 1.78 in. W x 6.1 in. H x 0.91 in. D (45 mm x 155 mm x 23 mm)
  • Weight: 4 oz (113 g)
  • Current draw: 70 mA typical, 110 mA peak at 12 VDC
  • Voltage: +5 to 16 VDC
  • LED: four-state standard (red, green, amber and off)
  • Certifications: FCC, ICC, CE, C-Tick, UL Standard 294, ULC 60839-11-1
  • Keypad output: 8-bit burst; 26-bit Wiegand standard

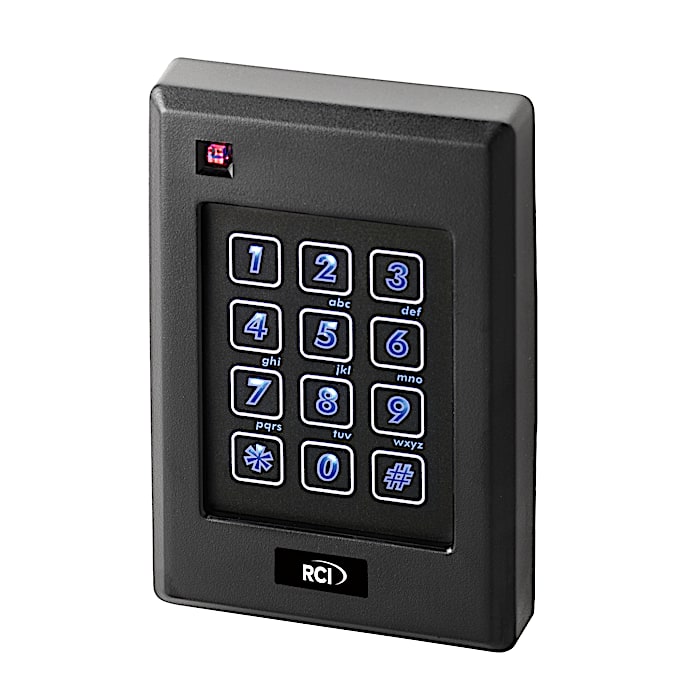

P-640-H-A

  • Technology: 125 kHz standard security keypad reader
  • Dimensions: 3 in. W x 4.6 in. H x 0.75 in. D (76 mm x 117 mm x 19 mm)
  • Weight: 4 oz (113 g)
  • Current draw: 70 mA typical, 110 mA peak at 12 VDC
  • Voltage: +5 to 16 VDC
  • LED: four-state standard (red, green, amber and off)
  • Certifications: FCC, ICC, CE, C-Tick, UL Standard 294, ULC 60839-11-1
  • Keypad output: 8-bit burst; 26-bit Wiegand standard

Components

  • P-620-H-A: 125 kHz standard security mullion keypad reader
  • P-640-H-A: 125 kHz standard security keypad reader

Readers will function with these credentials:

  • PSC-1-H: 125 kHz clamshell credential
  • PSI-4-H: 125 kHz image technology credential
  • PSK-3-H: 125 kHz fob credential
  • PSM-2P-H: 125 kHz ISO imageable credential
  • PSM-2S-H: 125 kHz ISO imageable credential with magnetic stripe
  • PDT-1-H: 125 kHz disc tag
  • DE2-125: 13.56 MHz DESFire EV2 and 125 kHz dual frequency credential

Applications

These readers are suitable for interior or exterior doors and entrance systems in a wide range of applications: retail and commercial, industrial, education, healthcare facilities and more.
