RCI 125kHz Medium Range & Long Range Readers

Name: RCI 125kHz Medium Range & Long Range Readers
Brand: dormakaba
SKU: DK_31103

The dormakaba RCI 125kHz Medium Range & Long Range Readers are two 125 kHz proximity readers for medium and long range access control: the RCI P-710-H-A medium range reader (up to 15 in. (381 mm)) and the RCI P-900-H-A long range reader (up to 20 in. (508 mm)), a long range rfid reader suited to parking gates and entrances.

Based on proven contactless digital radio frequency identification (RFID) technology, RCI Pyramid readers interface with a wide range of electronic access control systems by complying with either the legacy Wiegand protocol or the bi-directional Open Supervised Device Protocol (OSDP). They offer value-add features such as MAXSecure™ and fleaPower™ and can support several proximity card and tag technologies.

Both readers operate on +5 to 16 VDC, have a four-state light-emitting diode (LED) indicator, carry FCC, ICC, CE, C-Tick, UL Standard 294 and ULC 60839-11-1 certifications and are suitable for indoor and outdoor use.

Contactless read range from 15 in. (381 mm) (P-710-H-A) to 20 in. (508 mm) (P-900-H-A)
MAXSecure™ security feature
Wiegand or ODSP output interface
fleaPower™ energy conservation technology
Suitable for indoor and outdoor use
Limited lifetime warranty

Product Details

Technical Details

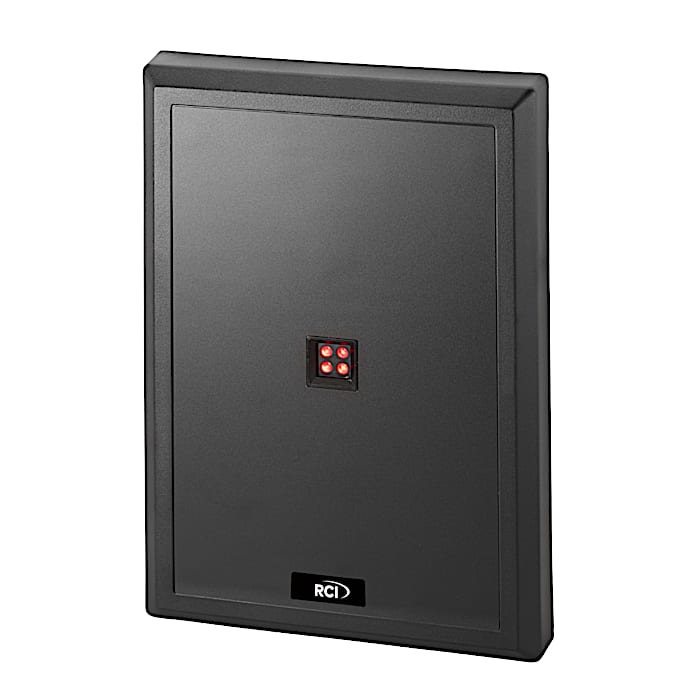

P-710-H-A

Technology: 125 kHz standard security medium range reader
Read range: up to 15 in. (381 mm)
Dimensions: 6 in. W x 8.5 in. H x 1 in. D (152 mm x 216 mm x 25.4 mm)
Weight: 22.4 oz (635 g)
Current draw: 215 mA typical, 600 mA peak at 12 VDC
Voltage: +5 to 16 VDC
LED: four-state standard (red, green, amber and off)
Certifications: FCC, ICC, CE, C-Tick, UL Standard 294, ULC 60839-11-1
Mount: US single gang

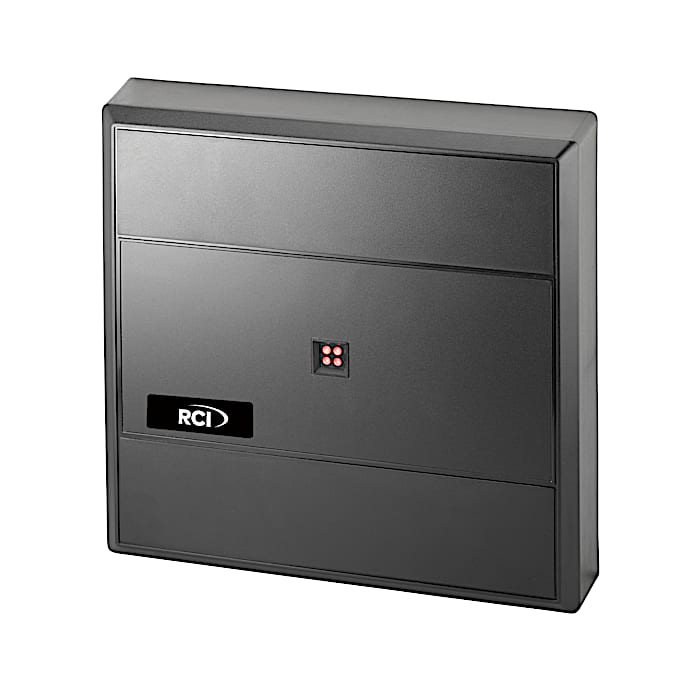

P-900-H-A

Technology: 125 kHz standard security long range reader
Read range: up to 20 in. (508 mm)
Dimensions: 10.5 in. H x 10.5 in. W x 2 in. D (267 mm x 267 mm x 51 mm)
Weight: 46.4 oz (1,315 g)
Current draw: 290 mA typical, 500 mA peak at 12 VDC
Voltage: +5 to 16 VDC
LED: four-state standard (red, green, amber and off)
Certifications: FCC, ICC, CE, C-Tick, UL Standard 294, ULC 60839-11-1
Mount: US single gang or double gang

Components

P-710-H-A: 125 kHz standard security medium range reader
P-900-H-A: 125 kHz standard security long range reader

Readers will function with these credentials:

PSC-1-H: 125 kHz clamshell credential
PSI-4-H: 125 kHz image technology credential
PSK-3-H: 125 kHz fob credential
PSM-2P-H: 125 kHz ISO imageable credential
PSM-2S-H: 125 kHz ISO imageable credential with magnetic stripe
PDT-1-H: 125 kHz disc tag
DE2-125: 13.56 MHz DESFire EV2 and 125 kHz dual frequency credential

Applications

These readers are suitable for interior or exterior doors, parking gates and entrance systems in a wide range of applications: retail and commercial, industrial, education, healthcare facilities and more.
