RCI DE2-125 Dual Technology Credential

Name: RCI DE2-125 Dual Technology Credential
Brand: dormakaba
SKU: DK_31101

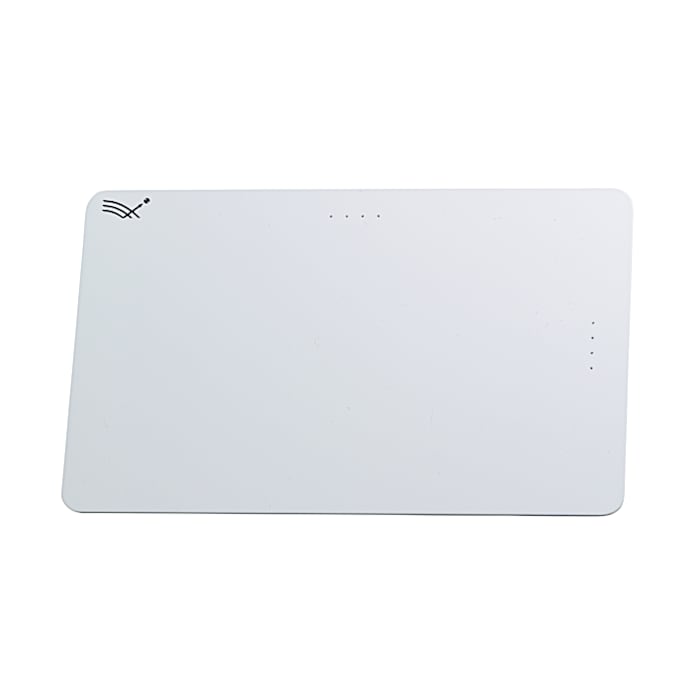

The dormakaba RCI DE2-125 Dual Technology Credential is a dual technology credential that combines 13.56 MHz DESFire EV2 and 125 kHz proximity in one card. Like the other RCI Pyramid credentials, the RCI DE2-125 is a passive device that needs no battery, which eliminates maintenance, and it can be ordered to support several proximity reader technologies.

Based on proven contactless digital radio frequency identification (RFID) technology, RCI Pyramid readers and credentials interface with a wide range of electronic access control systems by complying with either the legacy Wiegand protocol or the bi-directional Open Supervised Device Protocol (OSDP).

Security features include MAXSecure™ and ValidID™ fraud data protection, with a 26-bit Wiegand output and slot punch indicators.

Dual frequency: 13.56 MHz DESFire EV2 and 125 kHz in one credential
MAXSecure™ security feature
ValidID™ fraud data protection
Wiegand output (26-bit)
Slot punch indicators
One year warranty

Product Details

Technical Details

Technology: dual frequency 13.56 MHz and 125 kHz high security credential
Format: Wiegand (26-bit)
Material: PVC
Available with robust read ranges

Components

DE2-125: DESFire EV2 13.56 MHz and 125kHz dual frequency credential

Credentials will function with these RCI readers:

P-300-H-A
P-500-H-A
P-640-H-A
P-710-H-A
P-900-H-A
CSR35L mobile-ready 13.56 MHz
CSR620L mobile-ready 13.56 MHz
CSR640L mobile-ready 13.56 MHz
PCR35L mobile-ready 125 kHz
PCR620L mobile-ready 125 kHz
PCR640L mobile-ready 125kHz

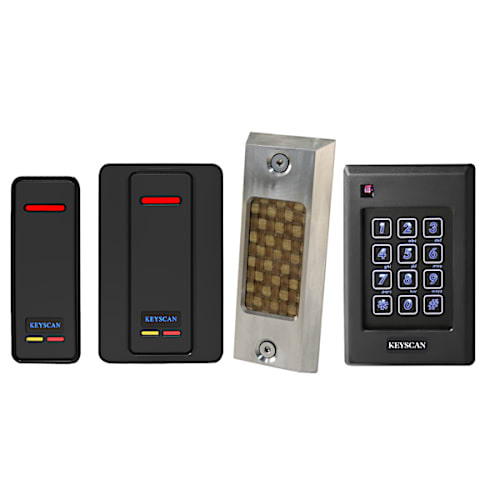

Keyscan (26-bit format):

K-PROX3
K-KPR
K-VAN

They will also function with a host of other125 kHz products, including:

HID 6005B ProxPoint Plus
HID 5365 MiniProx®
HID 5395 ThinLine II®
HID 5455 ProxPro II
HID5455KP ProxPro II with keypad
HID 5375 MaxiProx long range

Applications

These credentials are suitable for use in a wide range of applications: retail and commercial, industrial, education, healthcare facilities and more. They are suited to upgrade transitions from 125 kHz standard security to 13.56 MHz high security migration projects.
