Keyscan 125 kHz Reader Series

The dormakaba Keyscan 125 kHz Reader Series is a line of robust Keyscan readers for standard security (125 kHz) proximity access control. Keyscan readers suit access control systems with 125 kHz reader requirements and feature multiple mounting options and anti-tamper capability for dependable performance.

Models: the K-PROX3 standard reader (single gang or mullion mounting), the K-KPR standard keypad reader and the K-VAN vandal resistant reader. Each 125 kHz reader Keyscan offers works with Keyscan 36-bit and standard 26-bit credential formats (see Components).

Keyscan-specific features: heartbeat technology triggers an alarm at the Keyscan control panel if the reader wiring is interrupted (when enhanced features are activated), and dedicated light-emitting diode (LED) indicators support Keyscan Present3 and facility lockdown functions. The K-PROX3 and K-VAN can also be used with non-Keyscan access control systems.

  • Heartbeat technology: if the signal is interrupted by a wiring fault or damage, an alarm condition is triggered by the Keyscan control panel when enhanced features are activated
  • Dedicated LED indicators for Keyscan Present3 and facility lockdown features (requires firmware 9.39 and the K-PC1 programming card)
  • On-board beeper generates audible tones or a local 'door held open' alert
  • Versatile 2-in-one mounting: mullion or single gang electrical box
  • Epoxy-encased electronics, durable and weather resistant for interior or exterior use, including harsh environments
  • Read range up to 5 in. (12.7 cm) off metal (K-PROX3)
  • Limited lifetime warranty

Product Details

K-PROX3

The K-PROX3 is a standard security reader that is easy to install and features multiple mounting options and anti-tamper capability for dependable performance.

  • Heartbeat technology alerts if the signal is interrupted
  • On-board beeper to generate audible tones or sound a local 'door held open' alert
  • Versatile mounting options with 2-in-one, mullion or single gang, electrical box mounting applications
  • Read range up to 5 in. (12.7 cm) off metal
  • Durable, weather-resistant construction for reliable operation even in harsh environments
  • Functional with non-Keyscan access control systems (advanced Keyscan-specific features must be toggled off using the included K-PC2)
  • Dedicated LED indicators for Keyscan Present3 and facility lockdown features (requires firmware 9.39 and K-PC1 programming card)
  • Limited lifetime warranty

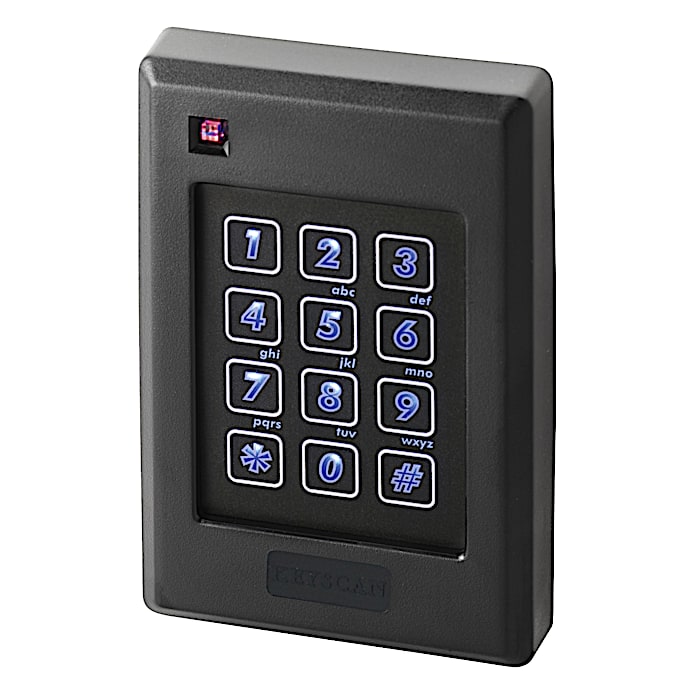

K-KPR

The K-KPR is an integrated proximity and keypad reader using RFID technology. The Keyscan K-KPR offers the reliability of a 125 kHz proximity reader with an additional layer of security when needed with the keypad.

  • Suited to applications that require enhanced security by enforcing both card presentation and PIN entry for secured areas
  • Where cards may be supplemented, users can be assigned a temporary or permanent PIN with designated access privileges
  • PIN entry outputs an 8-bit burst
  • Buttons provide audible feedback
  • Blue backlighting for easy use in low-light areas
  • Single gang mount
  • Membrane-style keypad surface prevents malfunction due to dust and debris accumulation
  • Keypad surface does not leave fingerprint smudges

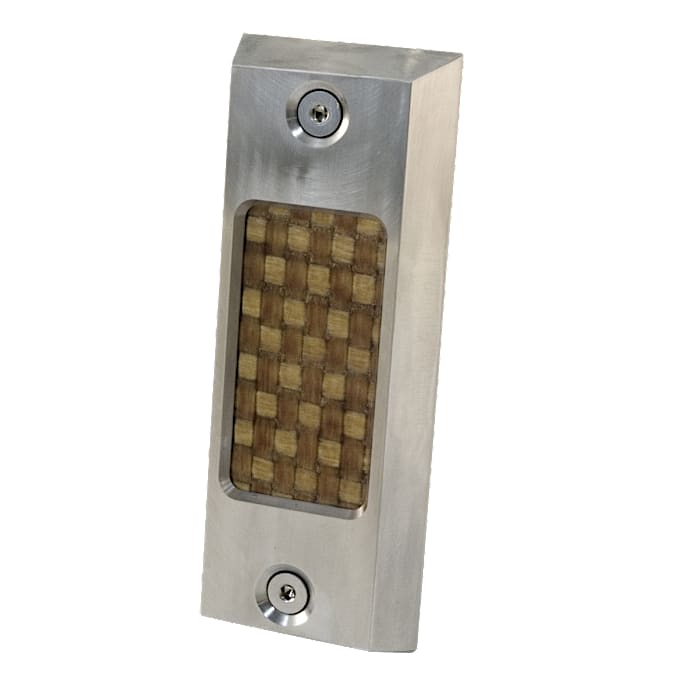

K-VAN

The K-VAN proximity reader is suited to access control in rough or hostile environments: indoor or outdoor applications where aggressive behavior, vandalism, crime or high-threat conditions can be expected. The Keyscan K-VAN vandal resistant proximity reader is constructed of a solid stainless steel body and Fibertex® insert.

  • Solid stainless steel bezel with Fibertex® insert provides a high level of vandal resistance
  • Fibertex® material is UL 752 listed for bullet-resistant integrity
  • May be used on non-Keyscan systems with many HID 125 kHz card protocols
  • Pass-through Wiegand output standard
  • Suitable for outdoor applications in all weather conditions
  • Non-contact read range of up to 1 in. (25 mm)
  • Limited lifetime warranty against defects in materials and workmanship
  • Robust construction for the toughest applications
  • Mounting options include two countersunk 0.25 in. (6.4 mm) through-holes and four 1/4-20 tapped holes in the back for tamper-proof blind mount installation

Technical Details

K-PROX3

  • Dimensions, mullion: 4-7/16 in. x 1-11/16 in. x 11/16 in. (11.3 cm x 4.3 cm x 1.7 cm)
  • Dimensions, switch plate: 4-3/4 in. x 3 in. x 5/8 in. (12 cm x 7.6 cm x 1.6 cm)
  • Physical credential read range, off metal: up to 5 in. (12.7 cm)
  • Physical credential read range, on metal: up to 4 in. (10.2 cm)
  • Input voltage: 12 VDC at reader
  • Typical current draw: 80 mA
  • Operating temperature: -40°F to 150.8°F (-40°C to 66°C)
  • Certifications: ANSI/UL 294:1990 Ed. 5; CAN/ULC S319-05; FCC and ICC; Canadian industrial design certificates of registration 169,198 and 169,199

K-KPR

  • Dimensions: 4.6 in. x 3 in. x 0.7 in. (11.7 cm x 7.6 cm x 1.8 cm)
  • Read range, off metal: up to 6 in. (15.2 cm)
  • Read range, on metal: up to 4 in. (10.2 cm)
  • Power requirements: 12 VDC
  • Typical current draw: 115 mA
  • Cabling: Wiegand interface 500 ft (152 m); 6-conductor shielded 22 AWG
  • Operating temperature: -40°F to 149°F (-40°C to 65°C)
  • Installation: secured in a rugged, tamper-resistant epoxy potting designed to withstand harsh weather conditions

K-VAN

  • Dimensions: 5.25 in. x 2.0 in. x 0.75 in. (13.4 cm x 5.1 cm x 1.9 cm)
  • Read range: up to 1 in. (25 mm)
  • Power requirements: 12 VDC
  • Typical current draw: 90 mA
  • Cabling: 6-conductor shielded 22 AWG, 12 in. (30 cm) pigtail standard
  • Operating temperature: -40°F to 149°F (-40°C to 65°C)

Components

  • K-PROX3 standard reader (single gang or mullion mounting)
  • K-KPR standard keypad reader
  • K-VAN vandal resistant reader

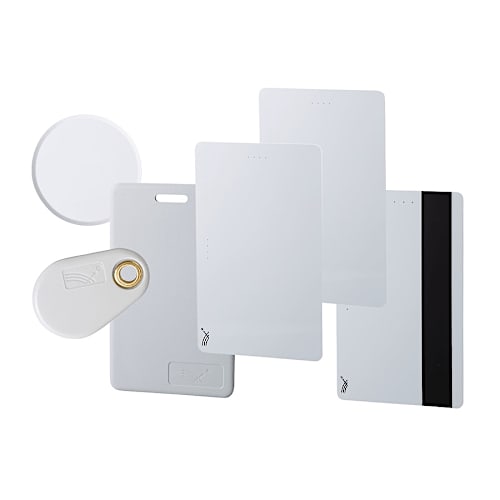

Keyscan 125 kHz readers will function with 125 kHz 36-bit (Keyscan) or 26-bit (standard) credential formats, including:

  • Keyscan CS125-36 clamshel
  • PSM-2P-H, PSK-3-H, PDT-1-H
  • HID C1325, HID C1386, HID C1391 and PROXKEYIII
