RCI 9322/9323 Easy Read Prox Micro Readers

The 9322/9323 easy read prox micro readers are single door standalone access control solutions for flush mount applications. The RCI 9322 is a self-contained unit with a standalone reader, whereas the RCI 9323 is two separate components with a reader and controller. The readers are designed for subtly – the reader measures only 1-3/16"W x 1-7/8"H x 5/16"D and is flush mounted with black or white snap-on covers that can blend with any décor.

Energy: 1,000mA 12VDC (Max)
Users: Supports Up To 10,000 Users
Read Range: Up To 2-3/8" (60mm) (Using 932-10CP Card, 1-9/16" (40mm) using 932-10KP Fob)
Warranty: 2 Year Limited Warranty
Environment: Rugged, Weather-Resistant Design
Mode: Field-Selectable Fail-Safe & Fail-Secure

Product Details

Easy to install
Supports up to 10,000 users
Aesthetically pleasing ﬂush mount design
Access validation – Silent (9322 only)/Audible
Deny access without retrieving user’s card or fob
No separate programmer required
Input trigger for request-to exit or other open circuit contact
Includes black & white snap-on covers
Proximity cards and fobs are available in packs of 10 (sold separately)

Technical Details

Dimensions: 1-3/16"W x 1-7/8"H x 5/16"D (29.5mm x 48mm x 8.5mm)

9322 Reader + Stand Alone
One Self-Contained Unit

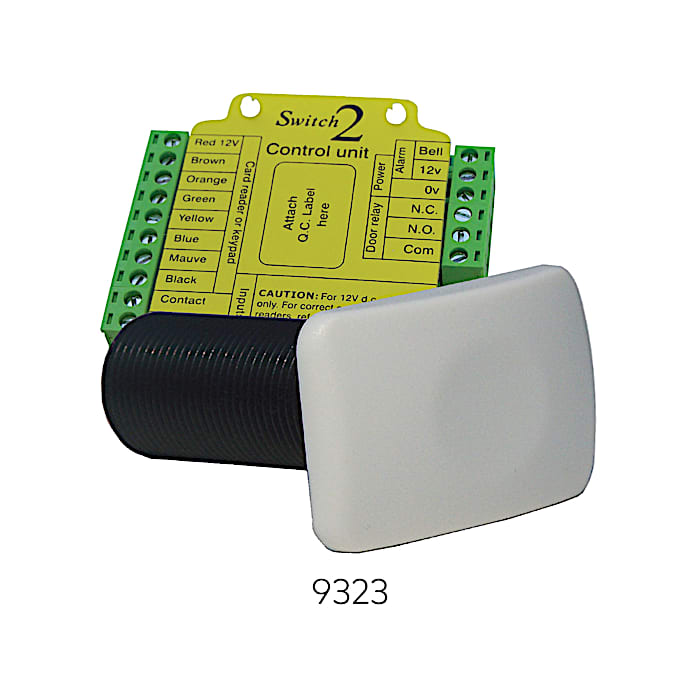

9323 Reader + Controller
Two Separate Components

Components

Accessories

932-10CP - Encoded card starter pack, 10 pack, includes wallet and programming cards
932-10KP - Encoded fob starter pack, 10 pack, includes wallet and programming cards
