Keyscan 125 kHz mobile-ready readers

The dormakaba Keyscan 125 kHz mobile-ready readers are Keyscan mobile ready readers for 125 kHz proximity access control that also read Keyscan K-MOB or K-BLE mobile access credentials loaded on Bluetooth Low Energy (BLE)-enabled smartphones. Each 125 kHz mobile ready reader offers MAXSecure™, heartbeat signal interruption technology, facility lockdown and Present3.

Models: the K-PROX3KM mullion keypad reader, the K-PROX3KW keypad reader and the K-PCR mount reader with 2-in-one mounting. All three operate at 125 kHz (proximity) and 2.4 GHz (BLE), with a Wiegand output.

Read range is up to 4 in. (102 mm) for physical credentials and up to 15 ft (4.6 m) for mobile credentials. The readers suit new Keyscan installations as well as upgrades and retrofits of existing systems.

  • Models function with Keyscan K-MOB and K-BLE mobile credentials as well as physical 125 kHz credentials
  • Heartbeat technology alerts if the signal is interrupted
  • On-board beeper generates audible tones or a local 'door held open' alert
  • Wiegand output
  • Versatile 2-in-one mounting: mullion or single gang electrical box
  • Read range up to 4 in. (102 mm) for physical credentials and up to 15 ft (4.6 m) for mobile credentials
  • Durable, weather-resistant construction for reliable operation even in harsh environments; limited lifetime warranty

Product Details

These readers offer Present3 and facility lockdown functions, multiple mounting options, heartbeat intelligence and anti-tamper capability for dependable performance. They function with both physical credentials and Keyscan K-BLE or K-MOB mobile credentials, and suit new Keyscan installations as well as existing system upgrades and retrofits.

Technical Details

K-PROX3KM / K-PROX3KW

  • Dimensions, K-PROX3KM: 1.78 in. x 6.1 in. x 0.9 in. (45 mm x 155 mm x 23 mm)
  • Dimensions, K-PROX3KW: 3 in. x 4.6 in. x 0.4 in. (76 mm x 117 mm x 10 mm)
  • Frequency: 125 kHz (proximity) and 2.4 GHz (BLE)
  • Read range, physical credentials: up to 4 in. (102 mm)
  • Read range, mobile credentials: up to 15 ft (4.6 m)
  • Input voltage: 12 VDC at reader
  • Typical current draw: 80 mA
  • Cabling: 12 in. (305 mm) wire pigtail standard; Wiegand interface 500 ft (152 m); 6-conductor shielded 22 AWG
  • Operating temperature: -40°F to 150.8°F (-40°C to 66°C)
  • Audio tone: beeper included standard
  • Certifications: ANSI/UL 294:1990 Ed. 5; CAN/ULC S319-05; FCC and ICC; Canadian industrial design certificates of registration 169,198 and 169,199

K-PCR

  • Dimensions, mullion: 1.7 in. W x 4.7 in. H x 1.2 in. D (43 mm x 119 mm x 30 mm)
  • Dimensions, switch plate: 3 in. W x 5.1 in. H x 1.2 in. D (76 mm x 130 mm x 30 mm)
  • Frequency: 125 kHz (proximity) and 2.4 GHz (BLE)
  • Read range, physical credentials: up to 4 in. (102 mm)
  • Read range, mobile credentials: up to 15 ft (4.6 m)
  • Input voltage: +8 to 14 VDC
  • Typical current draw: 60 mA
  • Cabling: 12 in. (305 mm) wire pigtail standard; Wiegand interface 500 ft (152 m); 6-conductor shielded 22 AWG
  • Operating temperature: -40°F to 150.8°F (-40°C to 66°C)
  • Audio tone: beeper included standard
  • Certifications: ANSI/UL 294:1990 Ed. 5; CAN/ULC S319-05; FCC and ICC; Canadian industrial design certificates of registration 169,198 and 169,199

Components

  • K-PROX3KM mullion keypad reader
  • K-PROX3KW keypad reader
  • K-PCR mount reader (with 2-in-one mounting)

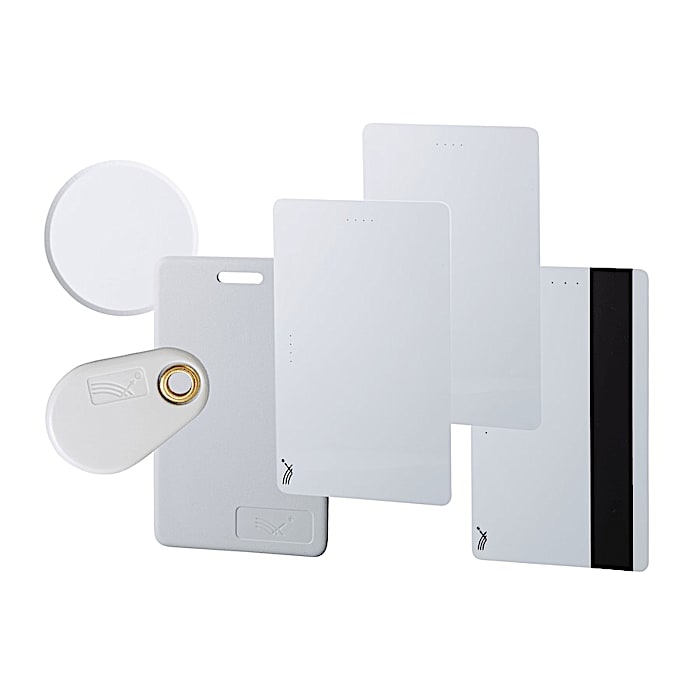

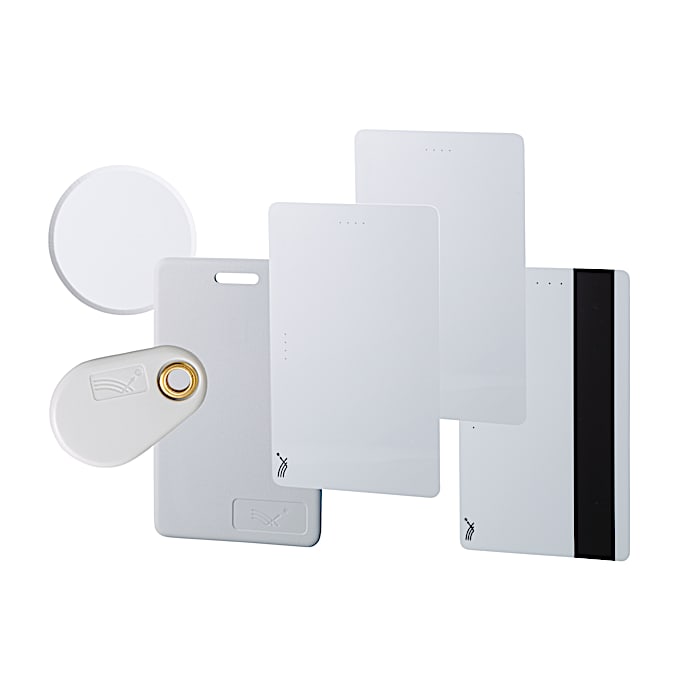

Functions with 125 kHz 36-bit (Keyscan) or 26-bit (standard) credential formats, including:

  • Keyscan CS125-36 clamshell
  • Farpointe PSM-2P-H, PSK-3-H, PDT-1-H
  • HID C1325, HID C1386, HID C1391 and PROXKEYIII
  • Keyscan K-MOB and K-BLE (mobile credentials)
dormakaba Keyscan 125kHz Mobile series

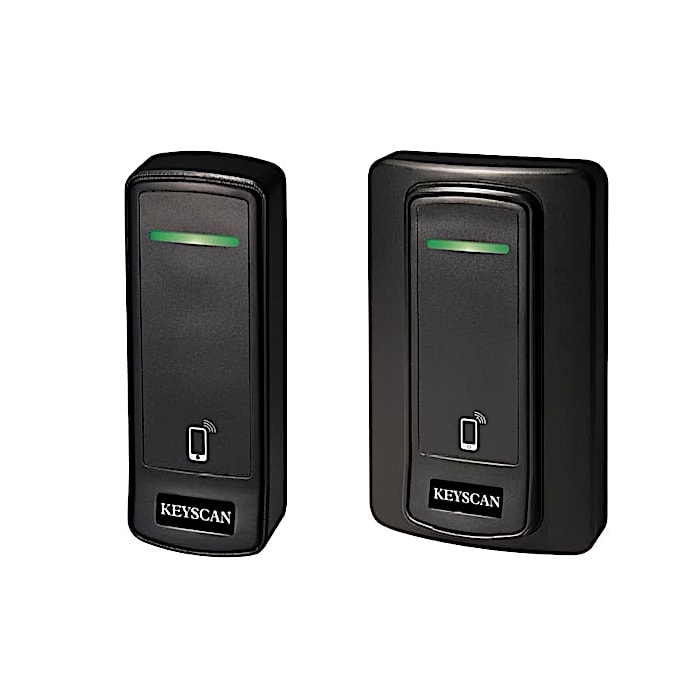

dormakaba K-PCR series

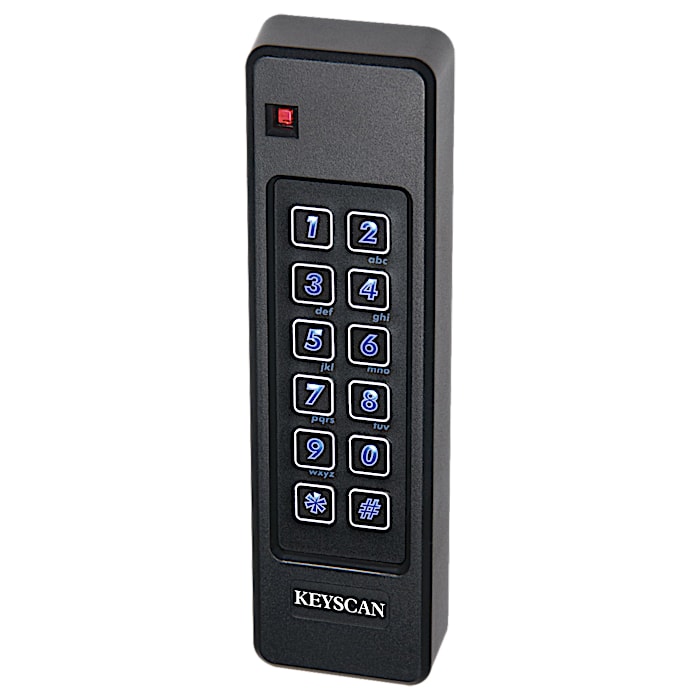

K-PROX3KM
