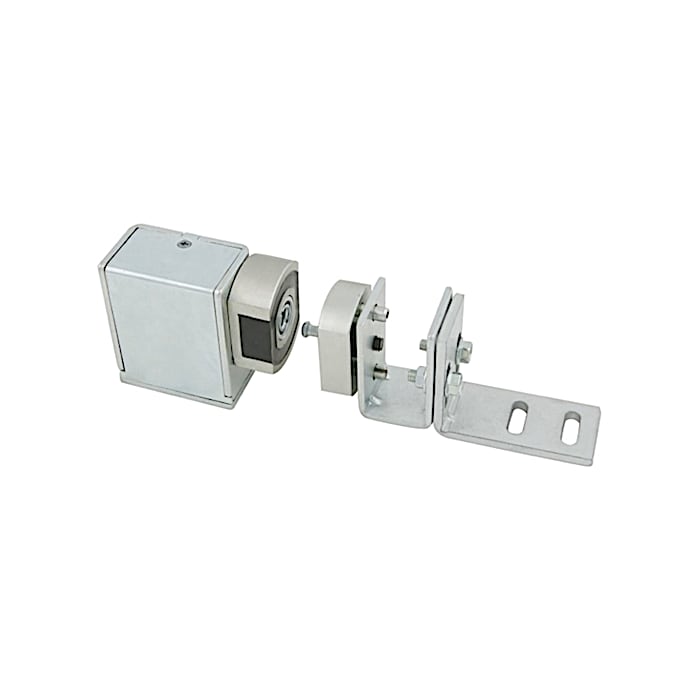

RCI MEM4400 Compact Electromechanical

The dormakaba RCI MEM4400 Compact Electromechanical is a very compact sliding door electromechanical lock for automatic sliding doors and small enclosures. The lock installs on or within the door track of automatic sliding doors.

Monitoring: the RCI MEM4400 has lock and door status sensors with an early warning alarm, and no residual magnetism.

Power and strength: fail-safe operation at 260 mA on 12 or 24 VDC (see the voltage note in Technical Data), with a holding force of 880 lbf (3,914 N).

  • Holding force: 880 lbf (3,914 N)
  • Very compact design for installation on or within the door track of automatic sliding doors
  • Fail-safe; lock and door status sensors with early warning alarm
  • Power: 260 mA, 12 or 24 VDC (12 to 24 VDC with the circuit board; 12 VDC coil without it)
  • No residual magnetism; 3 Year Limited Warranty

Product Details

  • Very compact design
  • Low power consumption
  • Easy installation
  • Early warning alarm
  • No residual magnetism
  • For automatic sliding doors (lock located on or within the door track)
  • 260 mA, 12 or 24 VDC (see note in Technical Data)
  • 880 lbf (3,914 N) holding force
  • Fail-safe
  • Lock and door status sensors
  • 3 Year Limited Warranty

Technical Details

  • Dimensions: 1-3/4 in. W x 1-3/16 in. H x 21/32 in. D (44 mm x 30 mm x 16.5 mm)
  • Armature plate: 1-3/4 in. W x 1-3/16 in. H x 1/2 in. D (44 mm x 30 mm x 12.5 mm)

Note: when used with the circuit board the MEM4400 accepts 12 to 24 VDC; without the circuit board it is a 12 VDC coil. The circuit board has a voltage regulator that accepts the higher voltage and reduces it to 12 VDC for the lock.

Applications

Sliding doors and small enclosures
