RCI 3513/3513DM Cabinet Lock

The dormakaba RCI 3513 and 3513DM Cabinet Locks are compact, surface-mounted electromechanical cabinet locks for small enclosures where power is available. The RCI 3513DM adds dual monitoring to the standard RCI 3513, making it the cabinet lock with monitoring option in the series.

Mounting and mode: the locks are versatile for side or top mounting, and the position of the solenoid determines the lock mode, field-selectable fail-safe or fail-secure.

Power and strength: field-selectable 12 or 24 VDC, drawing 200 mA maximum at 12 VDC or 100 mA at 24 VDC, with a holding force of 440 lbf (1,957 N). Heavy-duty metal construction, black finish.

  • Holding force: 440 lbf (1,957 N)
  • Field-selectable fail-safe or fail-secure, set by the position of the solenoid
  • Optional dual monitoring model (3513DM)
  • Power: field-selectable 12 or 24 VDC; 200 mA maximum at 12 VDC, 100 mA at 24 VDC
  • Compact surface-mounted design for side or top mounting; 3 Year Limited Warranty

Product Details

  • Surface-mounted compact electric lock
  • Heavy-duty metal construction
  • Versatile side or top mounting
  • Low energy consumption
  • Positioning of the solenoid determines the lock mode
  • Black finish
  • Field-selectable 12 or 24 VDC; 200 mA maximum at 12 VDC, 100 mA at 24 VDC
  • 440 lbf (1,957 N) holding force
  • Field-selectable fail-safe and fail-secure
  • Optional dual monitoring model available
  • 3 Year Limited Warranty

Technical Details

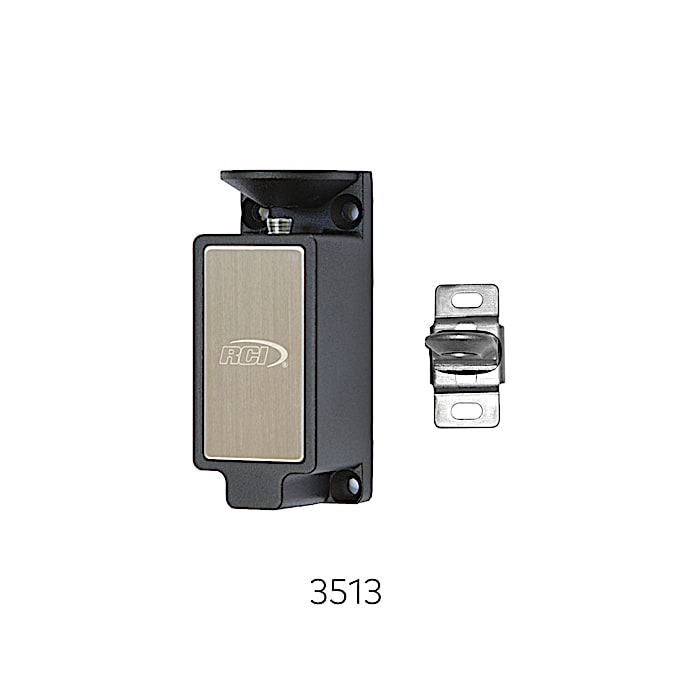

3513 Electromechanical Cabinet Lock

  • Dimensions: 1-3/16 in. W x 2-7/8 in. H x 1-1/8 in. D (30 mm x 73 mm x 29 mm)

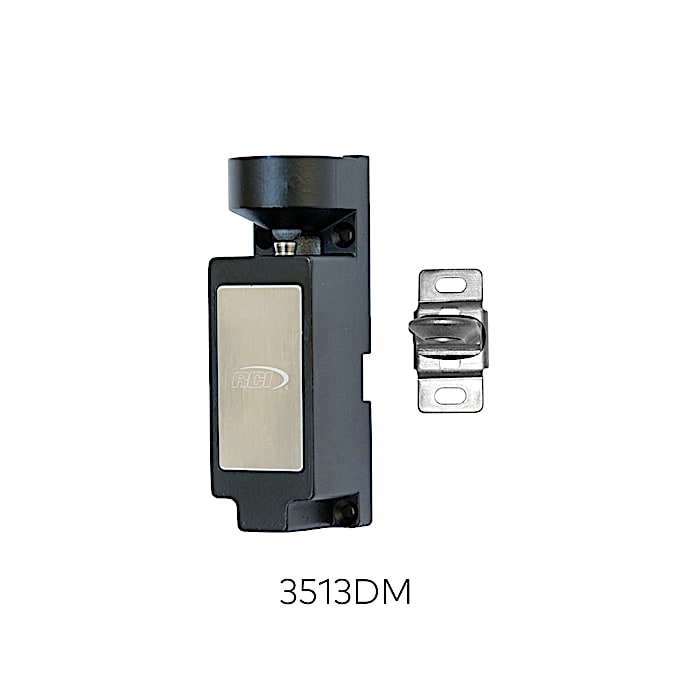

3513DM Electromechanical Cabinet Lock with Monitoring

  • Dimensions: 1-3/16 in. W x 3-11/16 in. H x 1-1/4 in. D (30 mm x 94 mm x 32 mm)

Applications

  • Small interior enclosures
  • Filing cabinets
  • Drug cabinets
  • Jewelry cases
  • Showcases
  • Key cabinets
  • Desk drawers
  • Cash drawers
  • Machine access covers
  • Vending machines
3513 Cabinet Lock Specialty Locks RCI EAD
3513DM Cabinet Lock Specialty Locks RCI EAD
