RCI 3525 Rack Handle Lock Series

The dormakaba RCI 3525 Rack Handle Lock Series is a rack handle lock that delivers electronic locking and monitoring for rack-mount enclosure cabinets. Each model combines the function of a manual latching system with electronic locking for physical and remote access control, making it a server rack lock electronic integrators can connect to an access control system.

Monitoring and integration: integrated lock sensors provide local light-emitting diode (LED) indication and generate output signals for remote monitoring. The series pairs with any access control device for a basic, self-contained electronic access solution, and a Wiegand output enables connection to a standalone or networked access control system, such as Keyscan, for remote control, monitoring and reporting.

Key override and options: for higher security applications the handle supports a DIN lock or a Small Format Interchangeable Core (SFIC) for mechanical key override, with 6 or 7 pin cores (6 pin requires a spacer; cores and keys sold separately). Reader versions with 125 kHz, 13.56 MHz iCLASS or dual frequency radio frequency identification (RFID) readers are available, and a Security Integration Kit (SSIK) simplifies installation.

  • RCI 3525: standard electronic and mechanical rack handle lock; an independent reader can be used

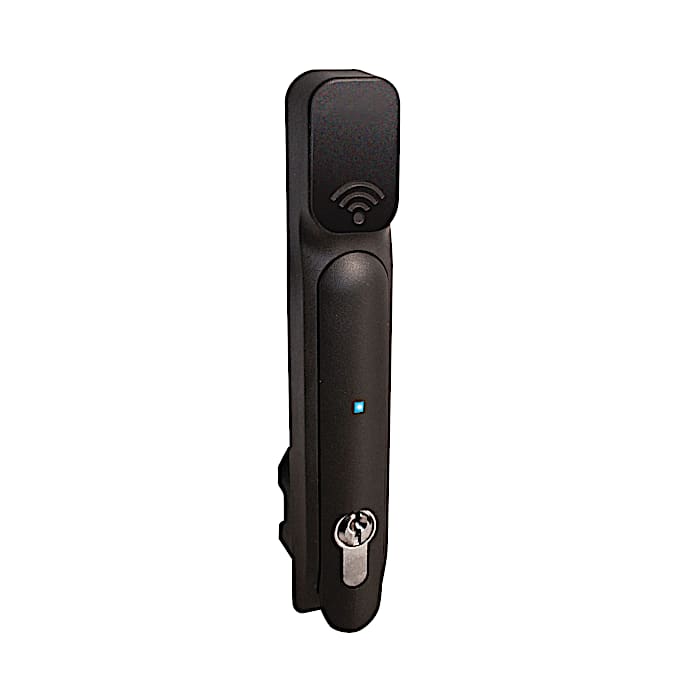

  • RCI 3525PRX: standard frequency 125 kHz RFID rack handle lock that functions with 125 kHz employee RFID credentials

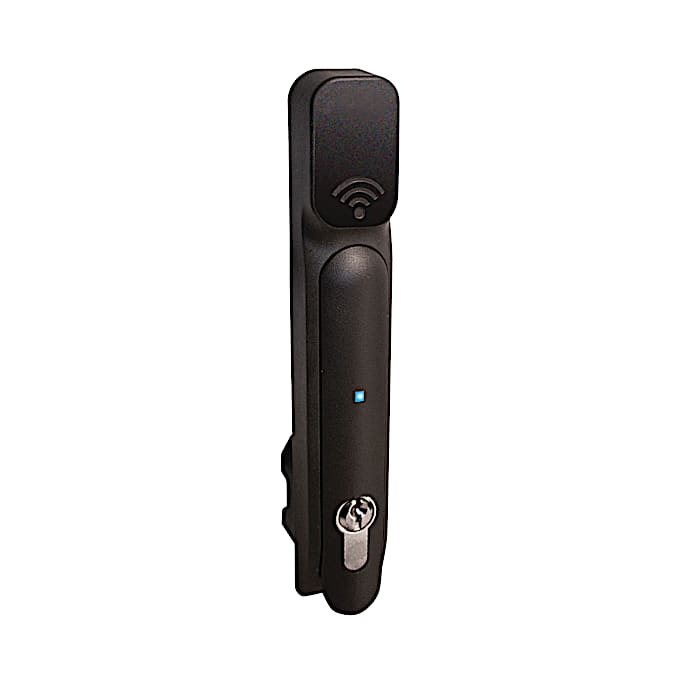

  • RCI 3525ICL: high frequency 13.56 MHz iCLASS rack handle lock that functions with iCLASS Classic (UID), MIFARE Classic 4K (UID), MIFARE Classic 2K (UID) and MIFARE DESFire 4K (UID) credentials
  • RCI 3525DFR: dual frequency (125 kHz and 13.56 MHz) RFID rack handle lock that functions with a wide range of standard and high frequency employee RFID credentials
  • Security Integration Kit (SSIK) available to simplify installation

Product Details

  • Electronic locks for high-tech and IT environments
  • Local monitoring with multi-color LED indicator
  • Wiegand output allows connectivity with Keyscan or another access control system
  • Remote lock and unlock control
  • Single or multi-point locking
  • Low power, gear motor driven mechanism
  • Momentary or continuous lock actuation
  • High security DIN lock for mechanical key override
  • SFIC option available (cores and keys sold separately)
  • Non-handed
  • Wire harness and hardware kit included
  • 1 Year Limited Warranty
  • Security integration kit module (sold separately)

Technical Details

  • Energy: field-selectable 12 to 24 VDC; typical less than 200 mA at 12 VDC; max/stall 1 A; standby 50 mA max
  • Output signal: 100 mA max load; card reader module: 60 mA max
  • Monitoring: lock and handle status
  • Mode: fail secure
  • PoE: Power over Ethernet (PoE) friendly
  • Dimensions: 1-1/2 in. W x 8-1/4 in. H x 1 in. D (37 mm x 210 mm x 24.5 mm)

Components

  • RCI 3525: standard electronic and mechanical rack handle lock
  • RCI 3525PRX: electronic locking swing handle with 125 kHz proximity reader for standard frequency 125 kHz RFID credentials
  • RCI 3525ICL: electronic locking swing handle with iCLASS reader for high frequency 13.56 MHz iCLASS RFID credentials
  • RCI 3525DFR: electronic locking swing handle with 125 kHz and 13.56 MHz dual technology reader for both standard frequency (125 kHz) and high frequency (13.56 MHz) RFID credentials
  • SFIC option for interchangeable 6 or 7 pin cores (6 pin requires spacer); cores and keys sold separately
  • Security Integration Kit (SSIK) available to simplify installation

Applications

Designed to secure a wide range of rack-mount enclosure cabinets for:

  • Data centers
  • Industrial enclosures
  • Secure storage
  • Medical equipment cabinets

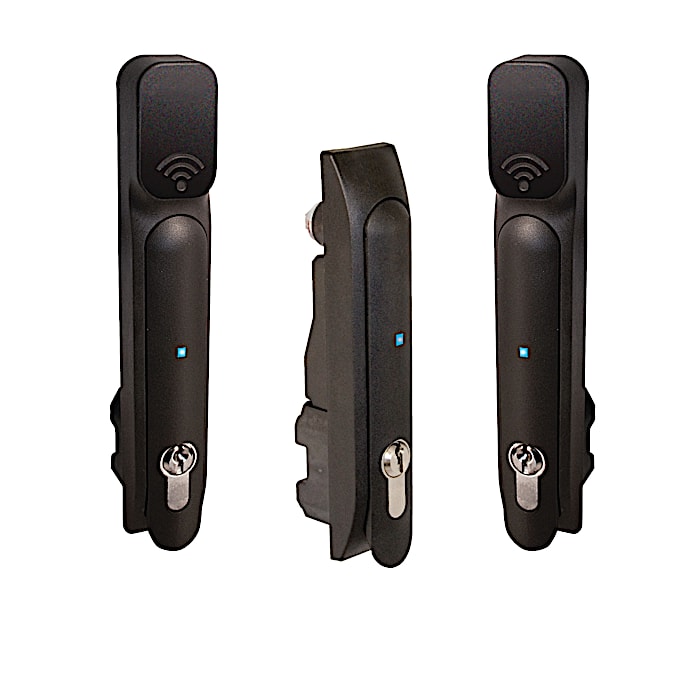

RCI 3525 Summary

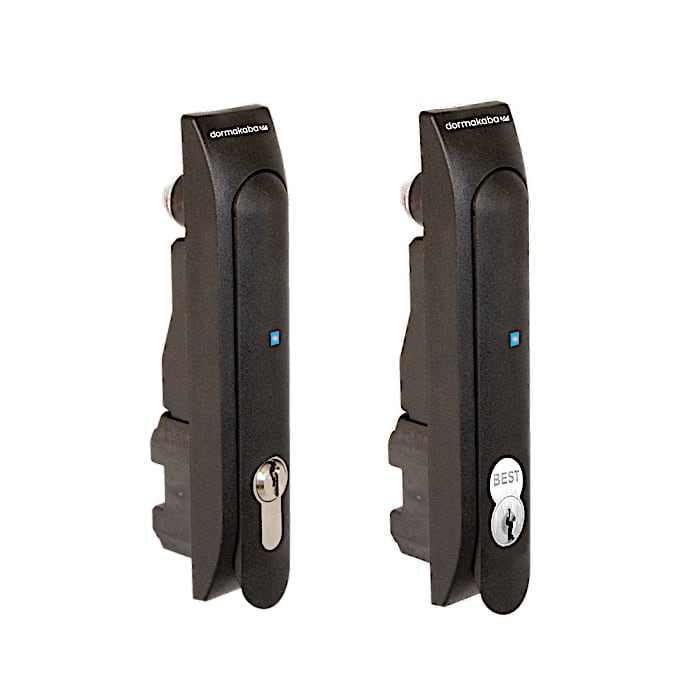

3525 group

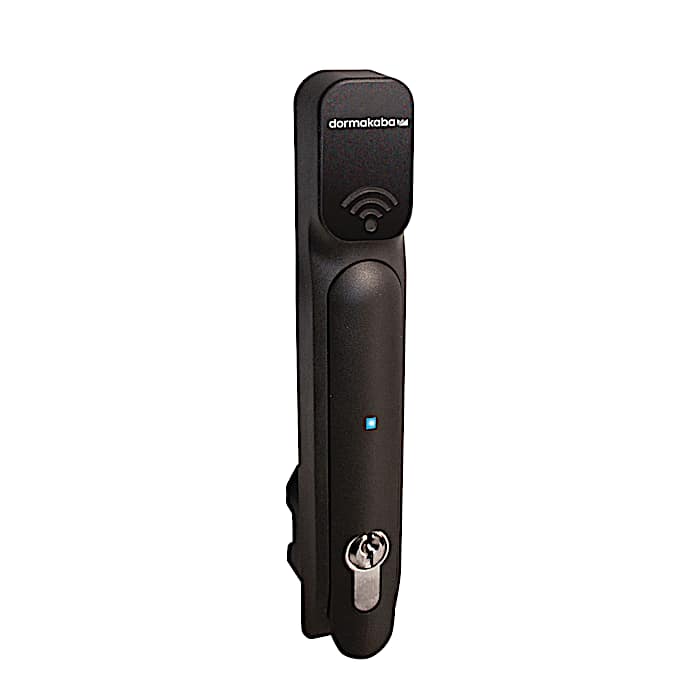

3525DFR
