RCI EM-MAG1500 Compact

Name: RCI EM-MAG1500 Compact
Brand: dormakaba
SKU: KA_500311

The dormakaba RCI EM-MAG1500 Compact is a compact electromechanical lock designed for outswinging doors and small enclosures. The RCI EM-MAG1500 is significantly smaller than standard electromagnetic locks yet provides a holding force of 1,500 lbf (6,672 N).

Status and security: the lock includes a bi-color light panel that indicates lock status, an early warning alarm, lock and door status sensors and an anti-tamper security plate. It releases under a side load of up to 130 lb (60 kg) and has no residual magnetism.

Power and construction: fail-safe operation on field-selectable 12 or 24 VDC, drawing 240 mA at 12 VDC or 120 mA at 24 VDC. The anodized aluminum housing is zinc plated for corrosion resistance, and the lock is factory tested to over 1 million cycles.

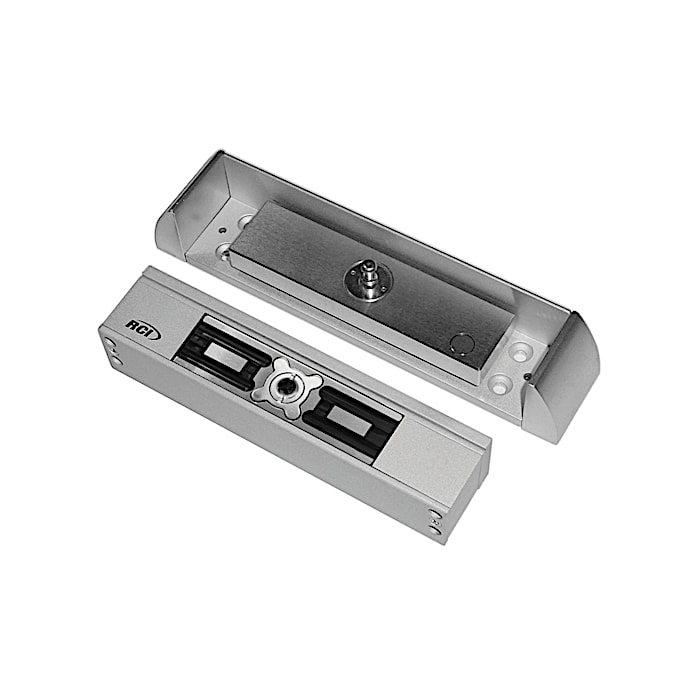

EM MAG1500 Compact Electromagnetic Specialty Locks RCI EAD

Holding force: 1,500 lbf (6,672 N)
Slim design, significantly smaller than standard electromagnetic locks
Fail-safe; releases under a side load of up to 130 lb (60 kg)
Lock and door status sensors, bi-color light panel and early warning alarm
Power: field-selectable 12 or 24 VDC; 240 mA at 12 VDC, 120 mA at 24 VDC; 3 Year Limited Warranty

Product Details

Slim design; significantly smaller than standard electromagnetic locks
Bi-color light panel indicates lock status
Releases under side load of up to 130 lb (60 kg)
Early warning alarm
Includes anti-tamper security plate
Anodized aluminum housing; zinc plated for corrosion resistance
No residual magnetism
Low energy consumption
Factory tested to over 1 million cycles
Field-selectable 12 or 24 VDC; 240 mA at 12 VDC, 120 mA at 24 VDC
1,500 lbf (6,672 N) holding force
Fail-safe
Lock and door status sensors
3 Year Limited Warranty

Technical Details

Dimensions: 6-7/32 in. W x 1-7/16 in. H x 1-3/8 in. D (158 mm x 36 mm x 35 mm)
Armature plate: 4-3/4 in. W x 1-3/16 in. H x 1/2 in. D (121 mm x 30 mm x 12.5 mm)
