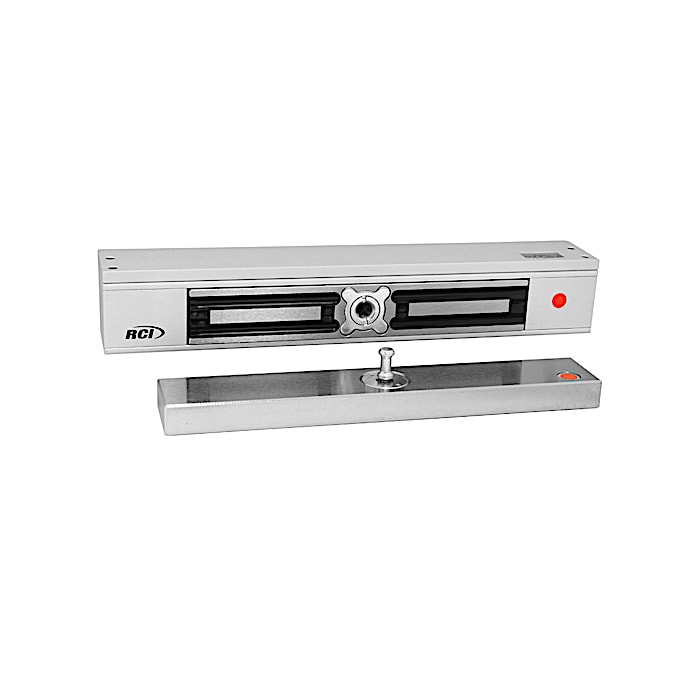

RCI MEM2400 Compact Electromagnetic

The dormakaba RCI MEM2400 Compact Electromagnetic is an inswing door electromagnetic lock designed for inswinging doors and small enclosures. The RCI MEM2400 is a patented electromagnetic lock with early warning detectors and bi-color light-emitting diode (LED) lights to indicate lock status.

Release under pre-load: the lock is capable of releasing under door back pressure (pre-load) of up to 150 lb (70 kg) and includes an adjustable L and Z bracket.

Power and construction: fail-safe operation on field-selectable 12 or 24 VDC, drawing 350 mA at 12 VDC or 175 mA at 24 VDC, with a holding force of 1,500 lbf (6,672 N). Aluminum extrusion casing with anodized coating and high-grade zinc plating on the magnet and plate; no residual magnetism.

MEM2400 Compact Electromagnetic Specialty Locks RCI EAD
  • Holding force: 1,500 lbf (6,672 N)
  • Releases under door back pressure (pre-load) of up to 150 lb (70 kg)
  • Patented compact surface-mount electromagnetic lock with early warning detectors
  • Fail-safe; lock and door status sensors with bi-color LED status indication
  • Power: field-selectable 12 or 24 VDC; 350 mA at 12 VDC, 175 mA at 24 VDC; 3 Year Limited Warranty

Product Details

  • Patented electromagnetic lock with early warning detectors
  • Bi-color LED light indicates lock status
  • Compact surface-mount design
  • Includes adjustable L and Z bracket
  • Capable of releasing under door back pressure (pre-load) of up to 150 lb (70 kg)
  • Aluminum extrusion casing, anodized coated, with high-grade zinc plating on magnet and plate
  • No residual magnetism
  • Low energy consumption
  • Field-selectable 12 or 24 VDC; 350 mA at 12 VDC, 175 mA at 24 VDC
  • 1,500 lbf (6,672 N) holding force
  • Fail-safe
  • Lock and door status sensors
  • 3 Year Limited Warranty

Technical Details

  • Dimensions: 8-5/8 in. W x 1-7/16 in. H x 1-3/8 in. D (218 mm x 36 mm x 35 mm)
  • Armature plate: 7-1/8 in. W x 1-3/16 in. H x 1/2 in. D (181 mm x 30 mm x 12.5 mm)

Applications

Inswing doors and small enclosures
