Product Summary

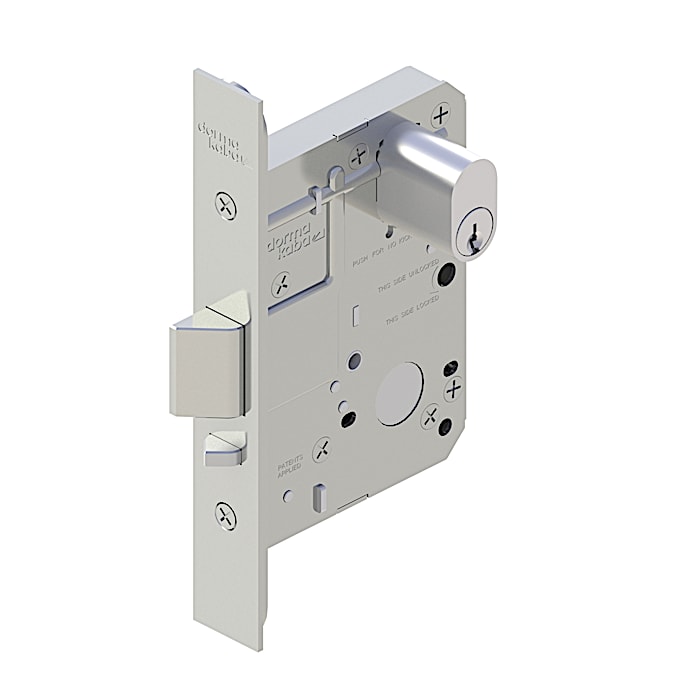

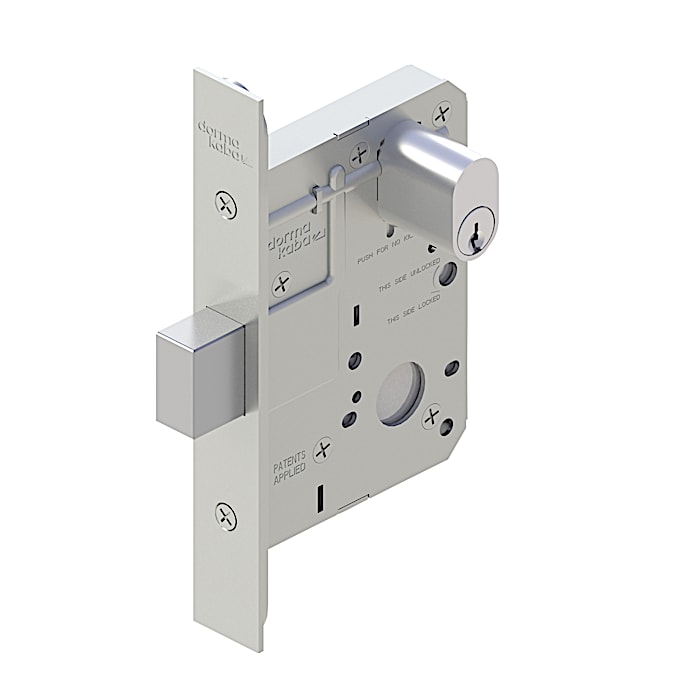

The new dormakaba MS2600 & MS2900 Series Mortice Locks brings together the former Dorma & Kaba mortice locks into a refined mortice lock offering with improved benefits. The MS2600 & MS2900 Series are heavy duty stainless steel mortice locks, designed, engineered and built for optimal performance across a full range of applications including education, healthcare, office, retail, municipal buildings and residential projects. Â Â
Product Details
Construction
The mortice case, cover and faceplate are constructed of 304 grade stainless steel providing greater security than die cast mortice locks and better corrosion resistance. Moreover, the lock spindle hubs, latchbolt, deadbolt and dead latch are constructed of high grade sintered stainless steel. Springs are of high grade spring steel.
SCEC Approved
The MS2602, MS2601 & MS2601B mortice locks and has been certified to comply with the SL3 rating from SCEC.
Security
dormakaba MS2600 Series locks conform to level SL8 (Physical Security) in accordance with Australian lock standard AS4145.2·2008.
Durability
dormakaba MS2600 Series mortice locks conform to level D8 (Durability) in accordance with Australian lock standard AS4145.2·2008.
Strikes
Universal "T" shape strike plate as standard.
Anti-Lockout (Kick Off)
This function is built into the MS2602 & MS2902 Series Mortice Locks and can be easily activated or de-activated. Primary lock is supplied de-activated; refer to functions for further information.
Hold Back
The MS2602 & MS2902 offers a latch hold back function via a 130 cylinder with a hold back cam (CAM KH) ordered separately, with or without cylinder.
Rebate Kits
Rebate kits are available as accessory to convert the MS2600 & MS2900 Series Mortice Locks into a rebated unit.
Fabricator Kits
Fabricator kits are available as an accessory to accommodate installation on metal/aluminium doors and frames.
Technical Details
Backset
Standard 60mm backset & 95mm backset
Door Thickness
32mm to 50mm as standard. Thicker door kits are available on application.
Door Preparation
The MS2600 Series fits a standard 120mm x 90mm x 20mm (175mm x 25mm faceplate) mortice. The MS2900 Series fits a 120mm x 125mm x 20mm (175mm x 25mm faceplate) mortice.
Latchbolt
14mm latchbolt. including a separate auxiliary dead latch with a 8mm projection.
Door Gap
To facilitate latch retraction and maintain lock security the gap between the faceplate and the strike plate should not be less than 3mm or greater than 6.0mm.
Note: Fire doors require a 3mm gap to meet AS1905.1
Cylinder
Standard dormakaba 130 type oval shaped cylinder (refer to cam options for functions). Cylinders are not supplied as standard.
Electric Strikes
The Kaba MS2 M Series with latch is compatible with most common electric strikes.
Functionalities
Handing and Functions
The MS2600 & MS2900 Series lock body is non-handed to suit left hand or right-hand open in or open out doors and functions are easily changeable on site. Cylinders and furniture sold separately.
Â
Lock functions
The dormakaba MS2600 & MS2900 Series range is complete with Nightlatch, Deadbolt, Vestibule, Sliding Deadbolt and Combination Lock functions.
