Simplex 7100

The Simplex 7100 Series from dormakaba is a mechanical pushbutton deadbolt and auxiliary lock. It provides fully mechanical primary or auxiliary access control by exterior combination while allowing free egress at all times by the interior thumbturn. Deadbolt models must be manually relocked; deadlocking latch models relock automatically each time the door closes.

Simplex mechanical pushbutton locks remove the cost and effort of issuing, controlling and collecting keys and cards. The Simplex 7100 is fully mechanical, so there is no material or labor expense for battery replacements. It uses a single access code and is programmed at the keypad without removing the lock from the door.

Three locking devices are offered: a 1 in. (25 mm) tubular deadbolt, a 1/2 in. (13 mm) deadlocking latch, and a 5/8 in. (16 mm) rim deadlocking latch with latch holdback (model 7106). The field reversible lock fits wood or metal doors from 1-3/8 in. (35 mm) to 2-1/4 in. (57 mm) thick, is weather resistant and is covered by a 1-year warranty.

  • Fully mechanical: no batteries and no battery replacement costs
  • Single access code, programmed at the keypad without removing the lock from the door
  • Deadbolt with manual relock, or deadlocking latch and rim deadlocking latch with automatic relock
  • Latch holdback on model 7106; field reversible handing
  • Vandal resistant solid metal pushbuttons, weather resistant, 1-year warranty

Product Details

No battery: fully mechanical lock eliminates the material and labor expense of battery replacements

Number of codes: single access code, one easy-to-manage code for all users

Programming: programmed at the keypad without removing the lock from the door

Handing: field reversible

Economical: a cost effective access control solution

Locking device options

  • Deadbolt: must be manually relocked
  • Deadlocking latch: relocks automatically when the door closes
  • Rim locking latch: relocks automatically when the door closes; also has latch holdback

Operation modes

  • Pushbutton access
  • Latch holdback (7106 only)

Technical Details

Construction: all metal cast front housing; force-resistant, clutch-protected exterior thumbturn

Numeric keypad: vandal resistant, solid metal pushbuttons

Handing: field reversible

Latch

  • 1 in. (25 mm) tubular deadbolt
  • 1/2 in. (13 mm) deadlocking latch
  • 5/8 in. (16 mm) rim deadlocking latch

Backset: 2-3/4 in. (70 mm) or 2-3/8 in. (60 mm)

Strike

  • Models 7102 and 7108: flat deadbolt strike plate
  • Model 7104: curved lip strike plate
  • Model 7106: box strike for in-swing doors and flat strike for out-swing doors

Minimum stile required: 4 in. (102 mm)

Installation

  • 1-3/8 in. (35 mm) diameter through bore
  • 1 in. (25 mm) diameter cross bore
  • 3/4 in. (19 mm) through bore
  • 2 x 1/4 in. (6 mm) through bores

Door thickness: 1-3/8 in. (35 mm) to 2-1/4 in. (57 mm); wood or metal

Durability: weather resistant

Warranty: 1-year warranty

Finishes

For all models except 7106:

  • Bright Brass 03 (605)
  • Satin Chrome 26D (626)
  • Antique Copper (AC) (059)
  • Gold Vein (GV) (060)
  • Antique White (AW) (062)
  • Silver Vein (SV) (061)
  • Black 19 (676), inside trim Satin Chrome
  • Antique Brass 05 (609)

Model 7106: inside trim Black only

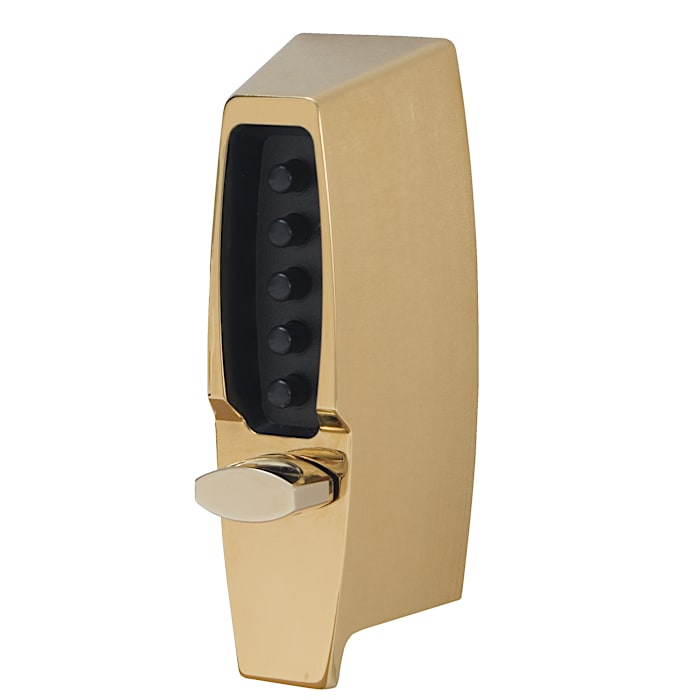

Simplex 7100 Series 7102/8/4-26D Bright Brass

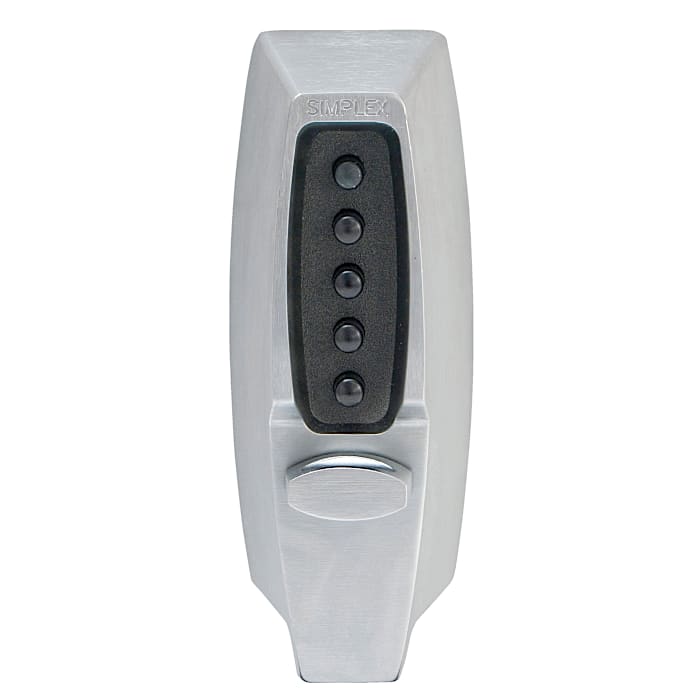

Simplex 7100 Series 7102/8/4-26D Satin Chrome

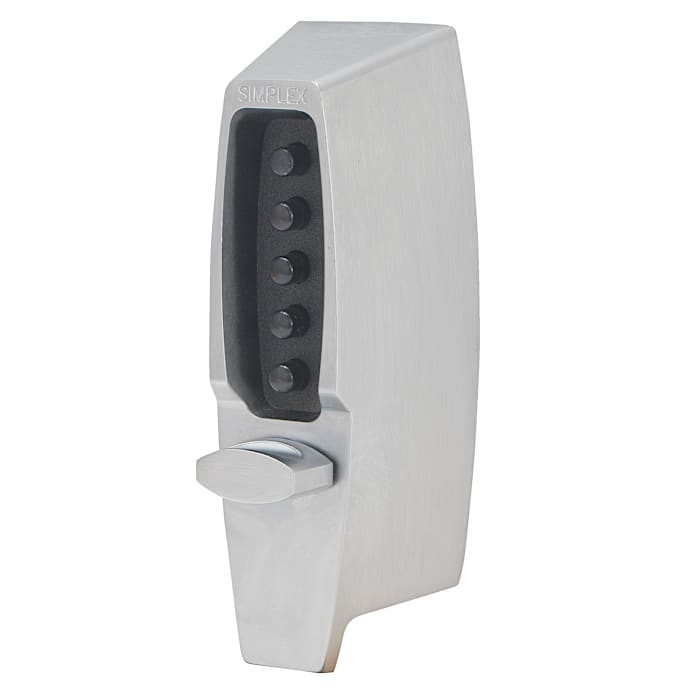

Simplex 7100 Series 7102/8/4-26D Satin Chrome
