Simplex 900

The Simplex 900 from dormakaba is a mechanical combination door lock that provides fully mechanical access control by pushbutton code while allowing free egress at all times by the interior thumbturn. Deadbolt models with a 1 in. (25 mm) throw must be manually relocked; deadlocking spring latch models with a 5/8 in. (16 mm) throw relock automatically each time the door closes.

Simplex mechanical pushbutton locks remove the cost and effort of issuing, controlling and collecting keys and cards. The Simplex 900 is fully mechanical, so there is no material or labor expense for battery replacements. It uses a single access code and is programmed at the keypad without removing the lock from the door.

An optional key override lets facilities start or maintain a master-keyed system (keyed alike or keyed differently); override models can be ordered with or without a cylinder. Options on select models include a panic bar release kit, latch holdback and a 2-1/2 in. (64 mm) inside lever in place of the thumbturn. The lock is weather resistant and covered by a 1-year warranty.

  • Fully mechanical: no batteries and no battery replacement costs
  • Single access code, programmed at the keypad without removing the lock from the door
  • Choice of 1 in. (25 mm) deadbolt with manual relock or 5/8 in. (16 mm) deadlocking latch with automatic relock
  • Optional key override for keyed alike or master-keyed systems, with or without cylinder
  • Field reversible latch; invert the lock for right-hand doors (pushbutton roman numerals read in either orientation)

Product Details

No battery: fully mechanical lock eliminates the material and labor expense of battery replacements

Number of codes: single access code, one easy-to-manage code for all users

Programming: programmed at the keypad without removing the lock from the door

Handing: field reversible latch; invert the lock for right-hand doors; roman numerals on the pushbuttons are easily read in either orientation

Optional key override: can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently). Override models can be ordered with or without a cylinder.

Economical: a cost effective access control solution

Locking device options

  • Deadbolt: 1 in. (25 mm) throw, manual relock
  • Deadlocking latch: 5/8 in. (16 mm) throw with automatic relock

Options

  • Add panic bar release kit (select models)
  • Keyed alike option available (select models)
  • Latch holdback (select models)
  • D.O.D. compliant (select model)
  • Substitute a 2-1/2 in. (64 mm) lever in place of the standard inside thumbturn (select models)

Operation modes

  • Pushbutton access
  • Latch holdback: keeps the latch retracted to allow access with the combination (select models)

Technical Details

Construction: all metal cast front housing; force-resistant, clutch-protected thumbturn; metal exterior trim plate

Numeric keypad: vandal resistant, solid metal pushbuttons

Handing: field reversible latch; invert the lock for right-hand doors; roman numerals are easily read in either orientation

Backset: 2-9/16 in. (65 mm) for outswing doors; 2-1/2 in. (64 mm) for inswing doors

Door thickness

  • 1-3/8 in. (35 mm) to 1-1/2 in. (38 mm)
  • 1-3/4 in. (44 mm) to 2-1/8 in. (54 mm)
  • Model 929: lockset for D.O.D. standards, 1-3/4 in. (44 mm) to 2-1/8 in. (54 mm) only
  • Model 927: lockset for D.O.D. standards, 1-3/8 in. (35 mm) to 1-1/2 in. (38 mm) only

Latch: 1 in. (25 mm) deadbolt; 5/8 in. (16 mm) deadlocking spring latch

Strike: includes strike plate for outswing doors and cast box strike for inswing doors; metal door frames require the optional surface mortise box strike or use of an adapter kit

Durability: weather resistant

Warranty: 1-year warranty

Finishes

  • 04 (606) Satin Brass
  • 26D (626) Satin Chrome
  • Model 929/927: 26D (626) Satin Chrome only
Simplex 900 Series 902/4/7/19-04 Satin Brass

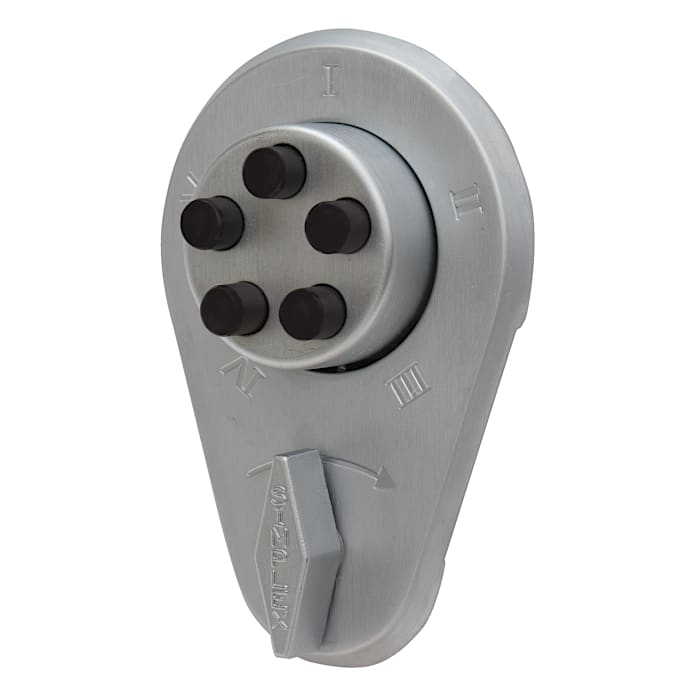

Simplex 900 Series 902/4/7/19-26D Satin Chrome
Simplex 900 Series 902/4/7/19-04 Satin Brass
