Simplex 1000

The Simplex 1000 Series from dormakaba is a mechanical pushbutton lock with a knob handle. It controls exterior access by combination while allowing free egress, and its cylindrical latch carries a 3-hour UL/ULC fire rating on "A" labeled doors.

Simplex mechanical pushbutton locks remove the cost and effort of issuing, controlling and collecting keys and cards. As a mechanical keyless door lock, the Simplex 1000 needs no batteries or power, so there is no material or labor expense for battery replacements. It uses a single access code and is programmed at the keypad without removing the lock from the door.

Passage and lockout modes are available on select models. The key override accepts small format interchangeable cores and large format removable cores (core not included). The lock is weather resistant, D.O.D. Compliant 5220.22M for supplemental access control and covered by a 3-year warranty.

  • Fully mechanical: no batteries, no power and no battery replacement costs
  • Single access code, programmed at the keypad without removing the lock from the door
  • Cylindrical latch with a 3-hour UL/ULC fire rating on "A" labeled doors
  • Passage and lockout modes on select models; key override accepts small format interchangeable cores and large format removable cores
  • Vandal resistant solid metal pushbuttons, weather resistant, 3-year warranty

Product Details

  • Locking device: cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Number of codes: single access code, one easy-to-manage code for all users
  • Programming: programmed at the keypad without removing the lock from the door
  • Handing: factory-handed for left-hand doors; easily field reversible
  • Economical: a cost effective access control solution

Operation modes

  • Pushbutton access
  • Passage (select models): allows access without using the lock entry code. Activated from the inside with a thumbturn or key (included with all passage feature models).
  • Lockout (select models): disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.

Technical Details

Construction: heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs

Numeric keypad: vandal resistant, solid metal pushbuttons

Handing: factory-handed for left-hand doors; easily field reversible

Backset: 2-3/4 in. (70 mm), 2-3/8 in. (60 mm)

Latch: 1/2 in. (13 mm) throw latch; 3/4 in. (19 mm) throw latch (optional)
Minimum stile recommended: 5 in. (127 mm)

Strike: standard strike plate; ASA strike plate

Key override

  • Interchangeable cores: small format interchangeable core (SFIC), Best and equivalents (6 or 7-pin length); core not included
  • Removable cores: large format interchangeable core (LFIC), Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage and Sargent; core not included

Door preparation: installs on wood or metal doors; ASA 161 door preparation with additional through bore holes required

Door thickness: 1-3/8 in. (35 mm) to 2-1/4 in. (57 mm); pre-assembled to accommodate 1-5/8 in. (41 mm) to 2 in. (51 mm)

Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant

Fire rating: 3-hour UL/ULC fire rating for "A" labeled doors

Warranty: 3-year warranty

Standard finishes

  • Satin Chrome 26D (626)
  • Antique Brass 05 (609)
  • Optional finishes
  • Bright Brass 03 (605)
  • Bright Chrome 026 (625)
Simplex 1021*-26D / 1041*-26D Satin Chrome

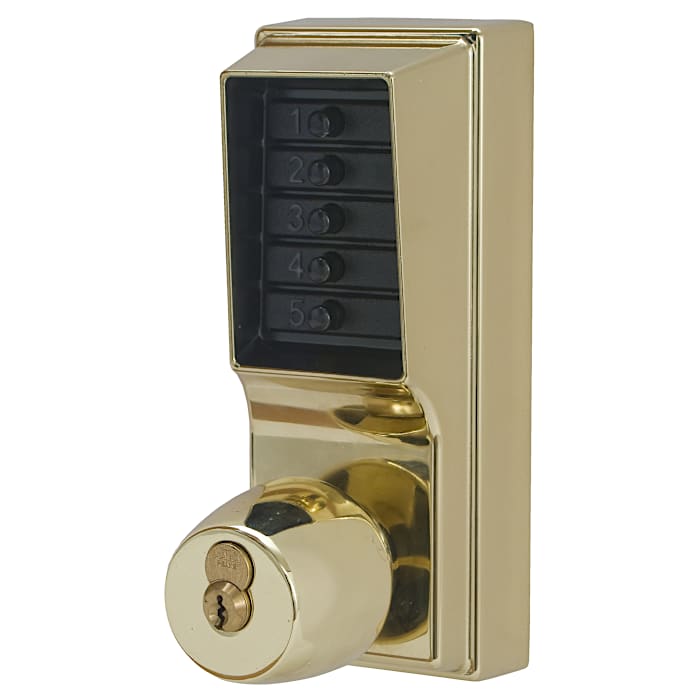

Simplex 1021* / 1041*-03 Bright Brass

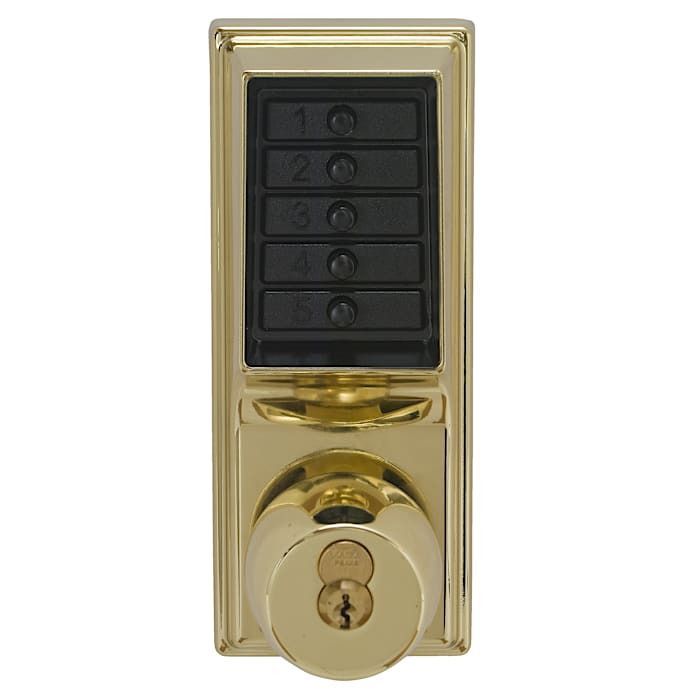

Simplex 1021* / 1041*-03 Bright Brass
