QET Series Exit Trims

The dormakaba Commercial Hardware QET Series is a range of exit device trims designed to work with the QED100, QED200 and QED300 commercial hardware exit devices. Four trim collections cover heavy duty and standard duty applications and give more customization options to fit a wider range of openings, with the same quality and reliability as the rest of the dormakaba Commercial Hardware line.

Across the four collections, the trims offer dummy, passage, keyed and night latch functions in lever escutcheon, pull plate, thumb piece, flat plate or round rose styles, with a choice of keyways (including BEST BF small format interchangeable core, SFIC), finishes and Sierra, Summit or Slate lever styles.

  • Four trim collections: QET100 and QET200 heavy duty, QET300 and QRT300 standard duty
  • Dummy, passage, keyed and night latch functions, identified by ANSI function number
  • Keyways: BEST BF (SFIC), Kwikset, Weiser, Schlage C, Yale GA, Sargent LA, or less cylinder
  • Finishes by collection: 605 Bright Brass, 613 Oil Rubbed Bronze, 626 Satin Chrome, 689 Painted Aluminum, 690 Painted Duranodic Bronze
  • Lifetime mechanical warranty and three-year finish warranty (613 carries no finish warranty)

Product Details

QET100 exit trims for QED100 exit devices

Exit trims

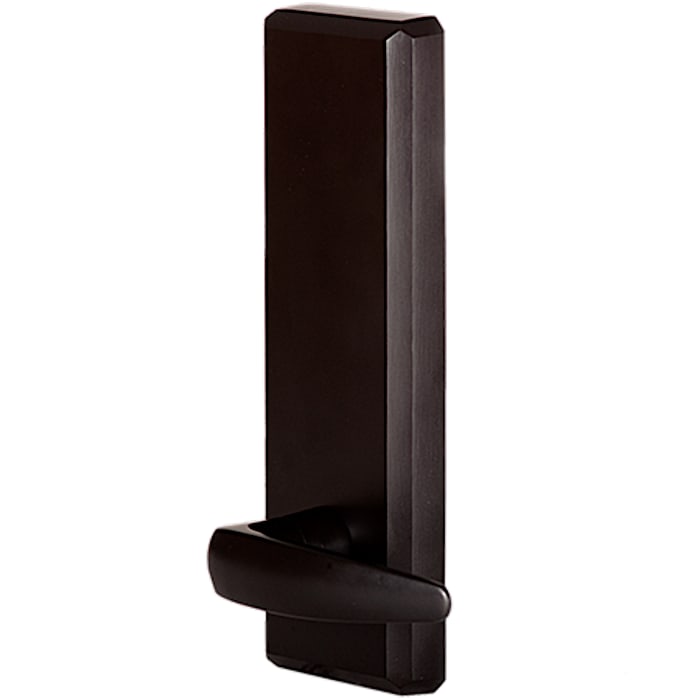

  • QET120: Dummy Lever Escutcheon, ANSI 02
  • QET125: Dummy Pull Plate, ANSI 02
  • QET130: Passage Lever Escutcheon, ANSI 14

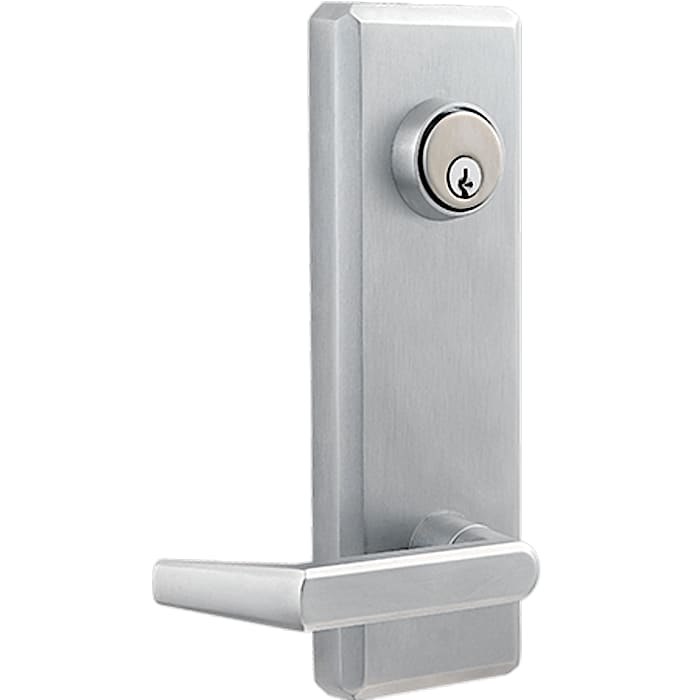

  • QET160: Keyed Lever Escutcheon, ANSI 08
  • QET165: Thumb Piece, ANSI 05
  • QET167: Dummy Thumb Piece, ANSI 02
  • QET170: Night Latch Lever Escutcheon, ANSI 09
  • QET175: Night Latch Pull, ANSI 03
  • QET190: Flat Plate, ANSI 01

Keyways

  • BF: BEST "BF" (SFIC)
  • KW: Kwikset "KW" (6-pin standard; 5-pin also available)
  • WE: Weiser "E" (6-pin standard; 5-pin also available)
  • SC: Schlage "C" (6-pin standard; 5-pin also available)
  • GA: Yale "GA"
  • LA: Sargent "LA"
  • LC: Less Cylinder

Finishes

  • 605: Bright Brass
  • 613: Oil Rubbed Bronze
  • 626: Satin Chrome
  • 690: Painted Duranodic Bronze

Lever styles

  • Escutcheon trims: Sierra (E)
  • Escutcheon trims: Summit (M)
  • Escutcheon trims: Slate (A)
  • Pull plate (L)

Series dimensions

  • Lever: 9.78 in. (248.4 mm) x 3.28 in. (83.3 mm)
  • Flat/pull plate: 14 in. (355.6 mm) x 3 in. (76.2 mm)

Warranty

  • Lifetime mechanical
  • Three-year finish (613 carries no finish warranty)

QET200 exit trims for QED200 narrow stile exit devices

Exit trims

  • QET220: Dummy Lever Escutcheon, ANSI 02
  • QET225: Dummy Pull Plate (for rim and SVR), ANSI 02
  • QET226: Dummy Pull Plate (for CVR), ANSI 02
  • QET230: Passage Lever Escutcheon, ANSI 14
  • QET260: Keyed Lever Escutcheon, ANSI 08
  • QET270: Night Latch Lever Escutcheon, ANSI 03
  • QET275: Night Latch Pull, ANSI 03
  • QET280: Night Latch Lever Escutcheon, ANSI 09
  • QET290: Flat Plate (for rim and SVR), ANSI 01
  • QET291: Flat Plate (for CVR), ANSI 01

Keyways

  • BF: BEST "BF" (SFIC)
  • KW: Kwikset "KW" (6-pin standard; 5-pin also available)
  • WE: Weiser "E" (6-pin standard; 5-pin also available)
  • SC: Schlage "C" (6-pin standard; 5-pin also available)
  • GA: Yale "GA"
  • LA: Sargent "LA"
  • LC: Less Cylinder

Finishes

  • 605: Bright Brass
  • 613: Oil Rubbed Bronze
  • 626: Satin Chrome
  • 690: Painted Duranodic Bronze

Lever styles

  • Escutcheon trims: Sierra (E)
  • Escutcheon trims: Summit (M)
  • Escutcheon trims: Slate (A)
  • Pull plate (L)

Series dimensions

  • Lever: 7.83 in. (198.9 mm) x 1.69 in. (42.9 mm)
  • Flat/pull plate: 13.88 in. (352.6 mm) x 1.76 in. (44.7 mm)

Warranty

  • Lifetime mechanical
  • Three-year finish (613 carries no finish warranty)

QET300 exit trims for QED300 exit devices

Exit trims

  • QET320: Dummy Lever Escutcheon, ANSI 02
  • QET325: Dummy Pull Plate, ANSI 02
  • QET330: Passage Lever Escutcheon, ANSI 14
  • QET360: Keyed Lever Escutcheon, ANSI 08
  • QET365: Thumb Piece, ANSI 05
  • QET367: Dummy Thumb Piece Pull Escutcheon, ANSI 02
  • QET370: Night Latch Lever Escutcheon, ANSI 03
  • QET375: Night Latch Pull, ANSI 03
  • QET377: Gull Wing Pull Escutcheon
  • QET390: Flat Plate Escutcheon, ANSI 01

Keyways

  • BF: BEST "BF" (SFIC)
  • KW: Kwikset "KW" (6-pin standard; 5-pin also available)
  • WE: Weiser "E" (6-pin standard; 5-pin also available)
  • SC: Schlage "C" (6-pin standard; 5-pin also available)
  • GA: Yale "GA"
  • LA: Sargent "LA"
  • LC: Less Cylinder

Finishes

  • 689: Painted Aluminum
  • 690: Painted Duranodic Bronze

Lever styles

  • Escutcheon trims: Sierra (E)
  • Escutcheon trims: Summit (M)
  • Escutcheon trims: Slate (A)
  • Pull plate (L)

Series dimensions

  • Lever: 8.0625 in. (204.8 mm) x 2.625 in. (66.7 mm)
  • Flat/pull plate: 14 in. (355.6 mm) x 3 in. (76.2 mm)

Warranty

  • Lifetime mechanical
  • Three-year finish

QRT300 exit rose trims for QED300 exit devices

Exit trims

  • QRT320: Dummy Round Rose Lever, ANSI 02
  • QRT330: Passage Round Rose Lever, ANSI 14
  • QRT360: Keyed Round Rose Lever, ANSI 08
  • QRT361: Keyed Round Rose Lever, SFIC, ANSI 08
  • QRT370: Night Latch Round Rose Lever, ANSI 03
  • QRT371: Night Latch Round Rose Lever, SFIC, ANSI 03

Keyways

  • BF: BEST "BF" (SFIC)
  • KW: Kwikset "KW" (6-pin standard; 5-pin also available)
  • WE: Weiser "E" (6-pin standard; 5-pin also available)
  • SC: Schlage "C" (6-pin standard; 5-pin also available)
  • GA: Yale "GA"
  • LA: Sargent "LA"
  • LC: Less Cylinder

Finishes

  • 626: Satin Chrome
  • 689: Painted Aluminum
  • 690: Painted Duranodic Bronze

Lever styles

  • Escutcheon trims: Sierra (E)
  • Escutcheon trims: Summit (M)

Series dimensions

  • Sierra: 4.98 in. (126.5 mm) x 3.15 in. (80.0 mm); base 3.12 in. (79.3 mm) x 0.52 in. (13.2 mm)
  • Summit: 4.95 in. (125.7 mm) x 3.45 in. (87.6 mm); base 3.12 in. (79.3 mm) x 0.52 in. (13.2 mm)

Warranty

  • Lifetime mechanical
  • Three-year finish

Components

  • QET100: heavy duty exit trims, for QED100 exit devices
  • QET200: heavy duty narrow stile exit trims, for QED200 exit devices
  • QET300: standard duty exit escutcheon trims, for QED300 exit devices
  • QRT300: standard duty exit rose trims, for QED300 exit devices

Applications

Designed to work in schools, factories, hotels, offices, and retail applications with QED100, QED200 and QED300 commercial hardware exit devices.
