QED100

The dormakaba Commercial Hardware QED100 Series is a heavy duty exit device available as a rim, surface vertical rod (SVR) or concealed vertical rod (CVR) exit device, ANSI/BHMA Grade 1 certified. It is designed to accommodate a wide range of uses: with many device types, functions and options available, the QED100 fits more applications, and its trim and finish options are compatible with other Commercial Hardware components so you can design a visually consistent, complete access control solution.

The QED100 Series is engineered with a thru bolt design and offers options including hurricane compliance and fire rating, for security, strength and durability whichever trim, finish or configuration you choose.

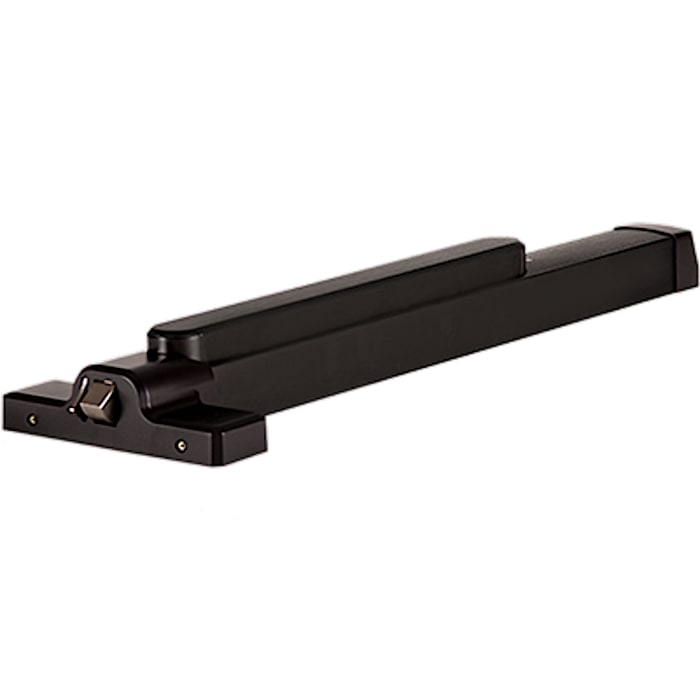

QED100 image
  • Available in rim, surface vertical rod (SVR) and concealed vertical rod (CVR) types
  • ANSI/BHMA A156.3 Grade 1 certified, with a thru bolt design for security and durability
  • Finishes: 313AN Anodized, Duranodic Bronze, 605 Bright Brass, 626 Satin Chrome
  • Five electrified options available
  • Optional hurricane compliance and fire rating
  • Fits 1-3/4 in. thick doors as standard and doors up to 2-3/4 in. thick with a thick door kit
  • Non-handed, field reversible and field sizeable

Product Details

Consistent styling

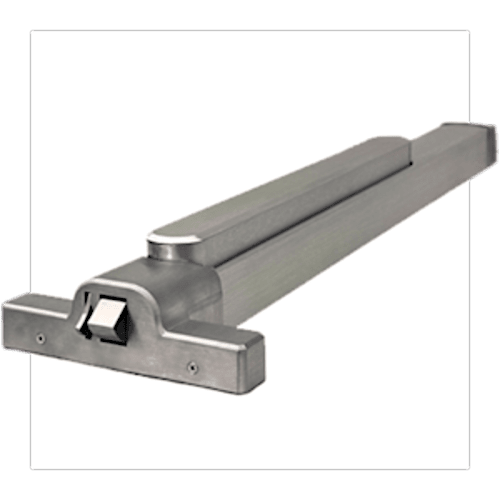

The QED100 Series shares the same aesthetic features as the QED200 narrow stile exit devices, so it is easy to maintain consistent styling throughout your facility.

Safety and security

The QED100 Series is ANSI/BHMA Grade 1 certified. Available options include hurricane compliance and fire rating. The series includes a thru bolt design for enhanced security and durability.

Easy installation

The QED100 Series is non-handed and field reversible, and is field sizeable to fit nonstandard doors.

Warranty

  • Lifetime mechanical warranty
  • 3 year finish warranty
  • 1 year warranty on electrical components

Technical Details

Certifications

  • ANSI/BHMA A156.3 Grade 1
  • ANSI A117.1 Section 404.2.6 Accessibility Code (ADA compliant)
  • UL/cUL listed (3 hour) for "A" label door applications (8 ft by 8 ft)
  • California Administrative Code Title 24 compliant for Sierra and Summit lever trims

Sizing and measurements

  • 36 in. device field sizeable to a 32 in. door
  • 48 in. device field sizeable to a 36 in. door
  • Standard door thickness: 1-3/4 in. (44.5 mm); doors up to 2-3/4 in. (70 mm) thick with a thick door kit
  • Standard backset: 2-7/8 in. (73 mm) to face of doorstop
  • Rim stile width: 4-1/4 in. (108 mm) minimum
  • SVR and CVR stile width: 3-1/2 in. (89 mm) minimum
  • SVR and CVR door height: 7 ft (2,134 mm) and 8 ft (2,438 mm) options

Keying

  • Keyway options: BF (SFIC "F"), KW (Kwikset), WE (Weiser), SC (Schlage), GA (Yale), LA (Sargent), LC (less cylinder)

Applications

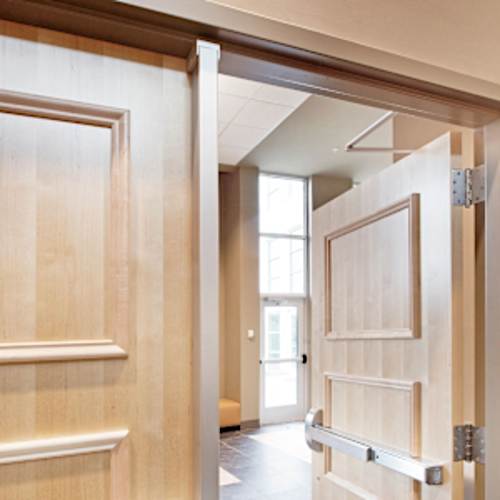

With a wide range of device types, trim selections and enhanced security features available, the QED100 Series can be configured for a wide range of commercial applications.
