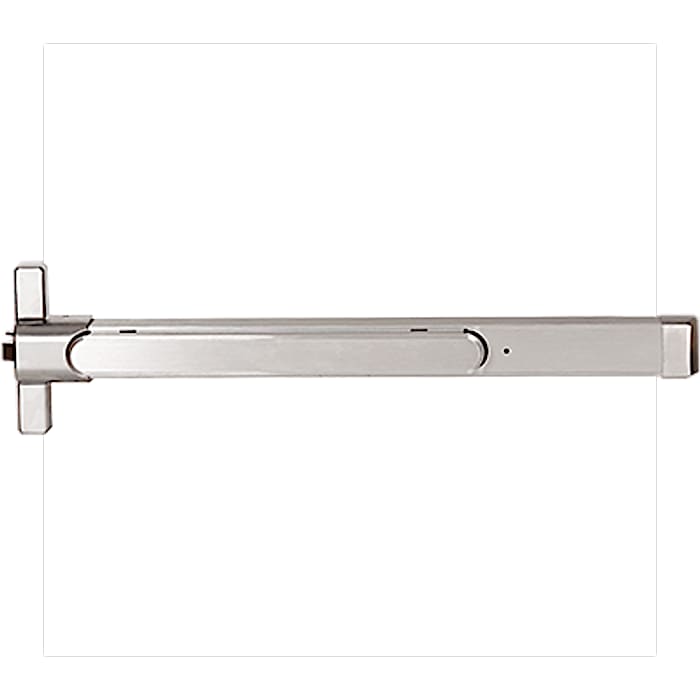

QED200

The dormakaba Commercial Hardware QED200 Series is a heavy duty narrow stile exit device for a wide range of wood, steel and aluminum narrow stile doors, ANSI/BHMA Grade 1 certified. It is available in rim, surface vertical rod (SVR) and concealed vertical rod (CVR) types, with a minimum stile width of 2 in. for rim (with ALS strike) and SVR devices.

Non-handed, field reversible and field sizeable devices make installation quick and easy, and the thru bolt design adds security and durability. The QED200 is a cost-effective option for aluminum storefront doors in non-institutional applications such as retail, hospitality and commercial office space.

  • Narrow stile design: 2 in. (50.8 mm) minimum stile width for rim (ALS strike) and SVR devices
  • Available in rim, surface vertical rod (SVR) and concealed vertical rod (CVR) types
  • ANSI/BHMA A156.3 Grade 1 certified, with a thru bolt design

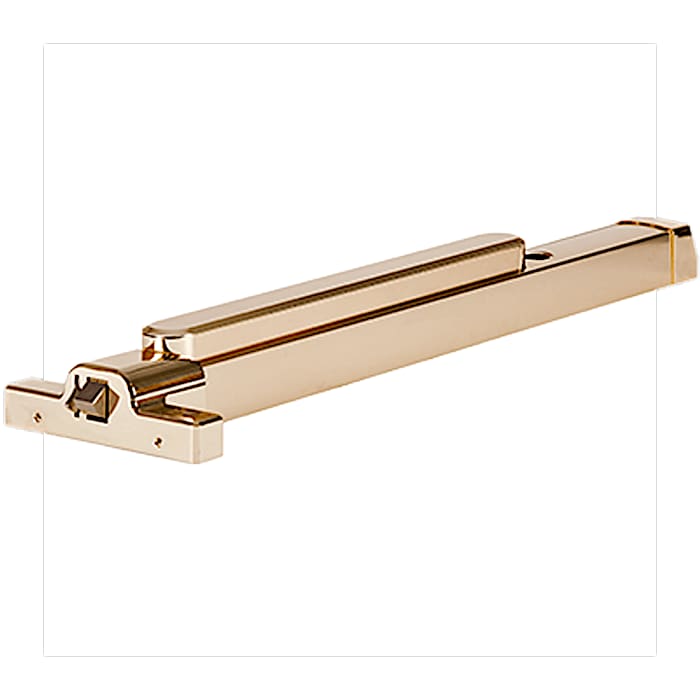

  • Finishes: 313AN Anodized, Duranodic Bronze, 605 Bright Brass, 626 Satin Chrome
  • Accommodates 26 in. to 48 in. wide doors; 36 in. and 48 in. devices are field sizeable
  • Non-handed, field reversible and field sizeable
  • UL/cUL listed (3 hour) for "A" label doors when used with the HMS strike

Product Details

Consistent styling

dormakaba Commercial Hardware products are designed with the same aesthetic features, so it is easy to maintain consistent styling throughout your facility.

Safety and security

The QED200 Series is ANSI/BHMA Grade 1 certified. The series includes a thru bolt design for enhanced security and durability.

Easy installation

The QED200 Series is non-handed and field reversible, and is field sizeable to fit non-standard doors.

Warranty

  • Lifetime mechanical warranty
  • 3 year finish warranty

Technical Details

Certifications

  • ANSI/BHMA A156.3 Grade 1
  • ANSI A117.1 Section 404.2.6 Accessibility Code (ADA compliant)
  • UL/cUL listed (3 hour) for "A" label door applications (8 ft by 8 ft) when used with the HMS strike
  • California Administrative Code Title 24 compliant for lever trims

Sizing and measurements

  • 36 in. device field sizeable to a 32 in. door
  • 48 in. device field sizeable to a 36 in. door
  • Standard door thickness: 1-3/4 in. (44.5 mm); doors up to 2-3/4 in. (70 mm) thick with a thick door kit
  • SVR and CVR door height: 7 ft (2,134 mm) standard with 84 in. (2,134 mm) rod; 8 ft (2,438 mm) with 96 in. (2,438 mm) rod
  • Rim stile width: 2 in. (50.8 mm) minimum for ALS strike; 3-1/2 in. (89 mm) minimum for HMS strike option
  • SVR stile width: 2 in. (50.8 mm) minimum
  • CVR stile width: 3-1/2 in. (89 mm) minimum

Keying

  • Keyway options: BF (SFIC "F"), KW (Kwikset), WE (Weiser), SC (Schlage), GA (Yale), LA (Sargent), LC (less cylinder)

Applications

The QED200 is a cost-effective option for aluminum storefront doors in non-institutional applications such as retail, hospitality and commercial office spaces.
