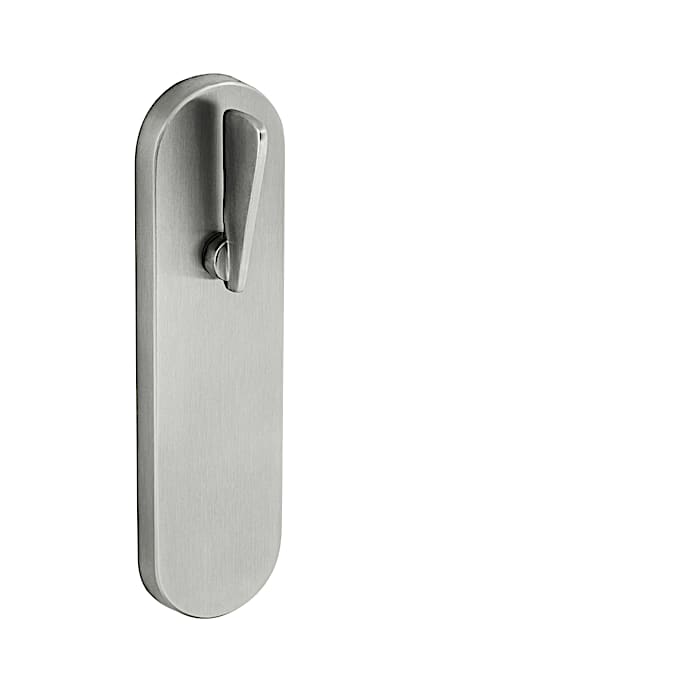

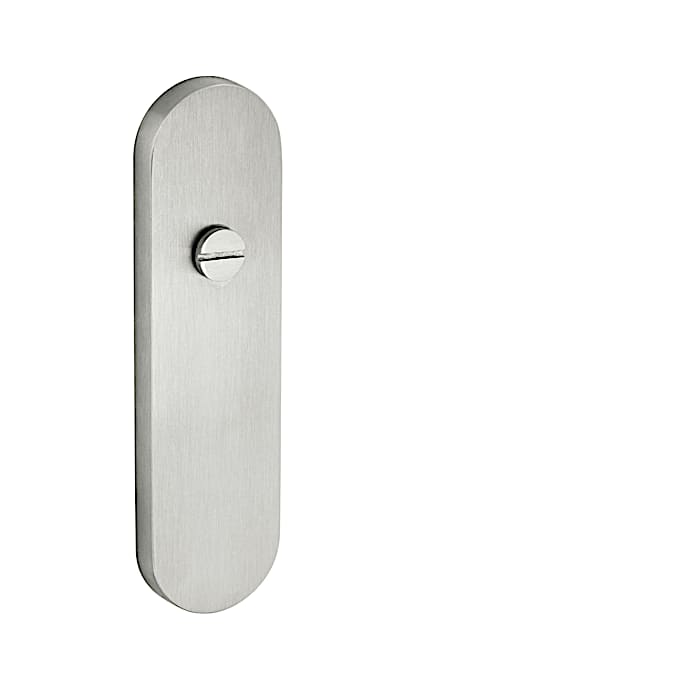

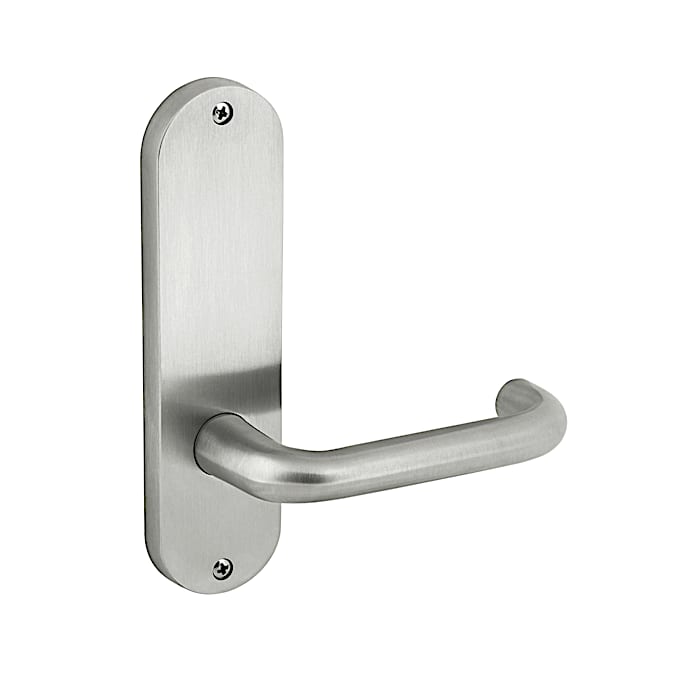

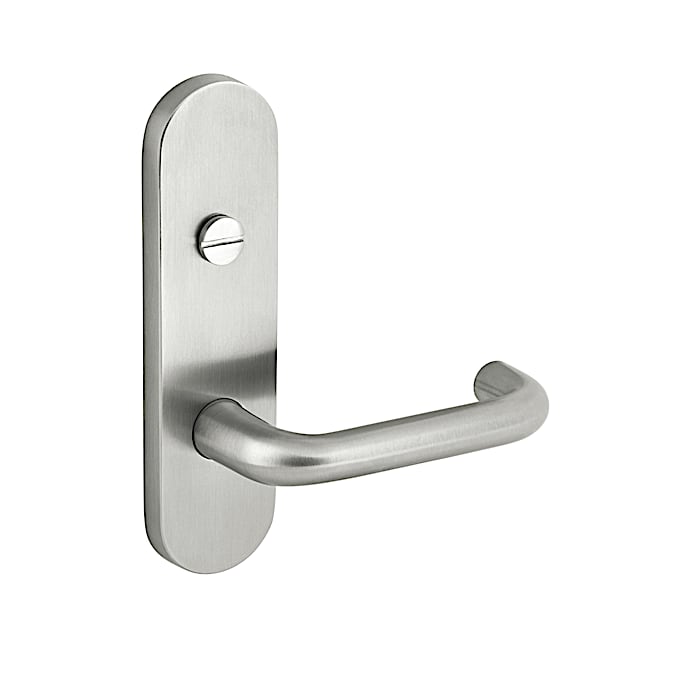

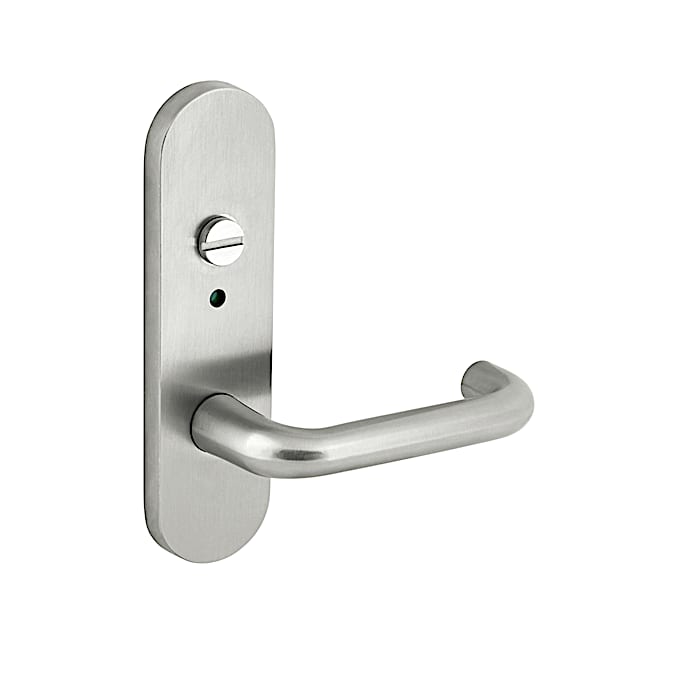

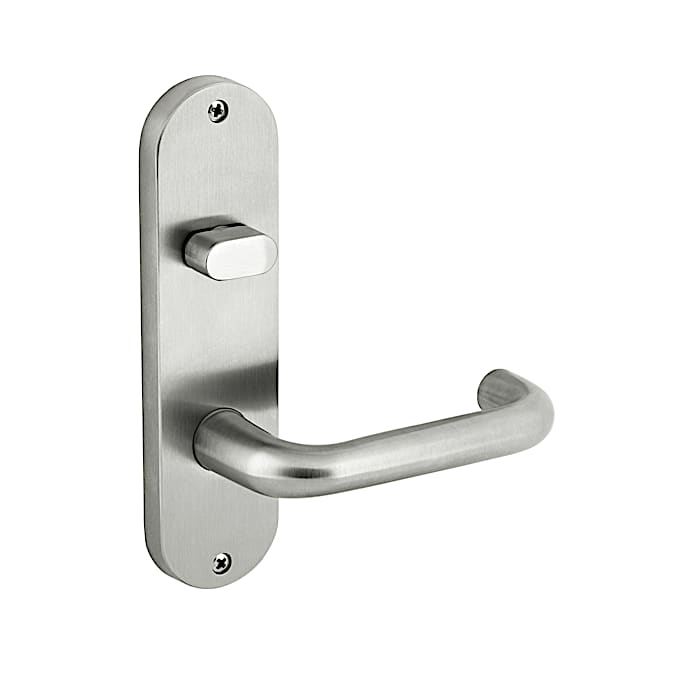

6700 Series 316 Grade Stainless Steel Plate Furniture

Made from 316 grade stainless steel; the traditional rounded end 6700 Series door furniture is best suited for commercial applications due to its hard wearing design and features.

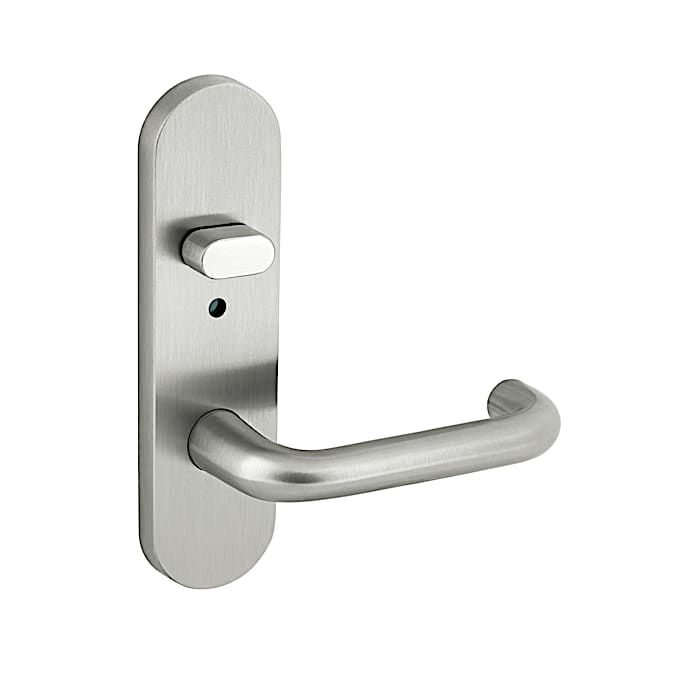

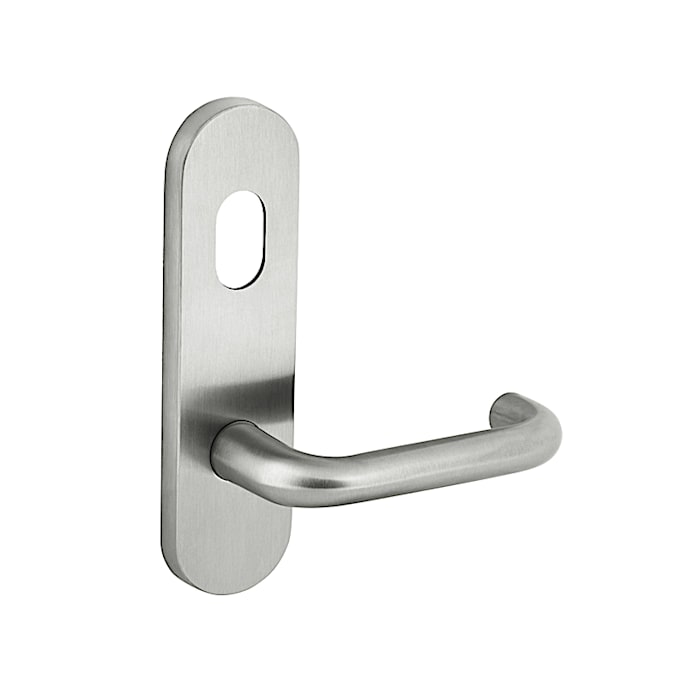

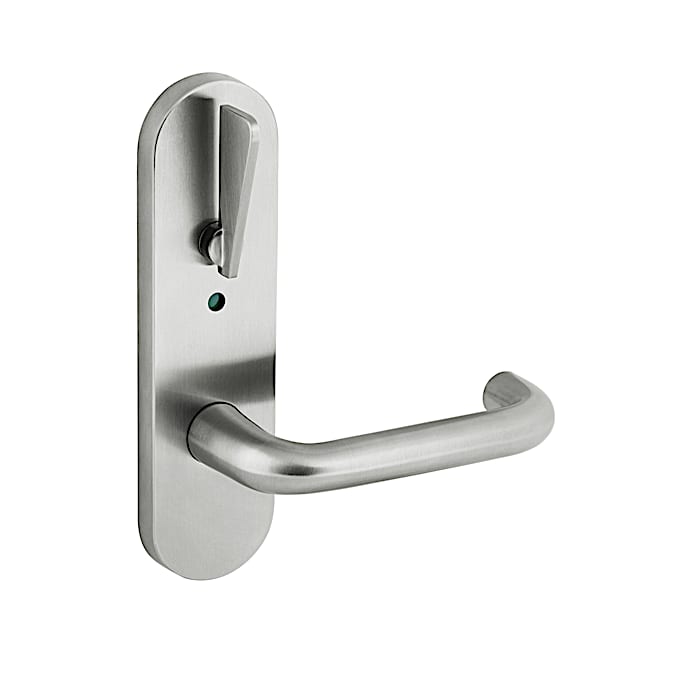

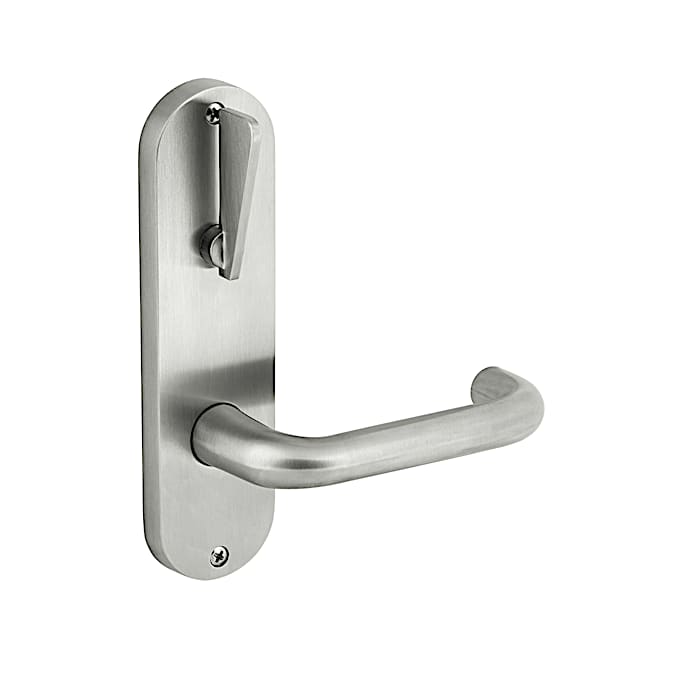

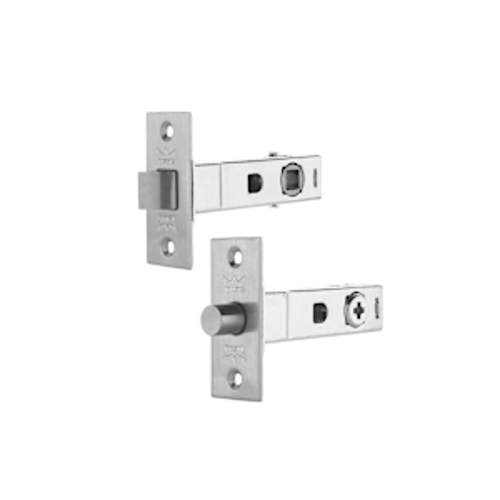

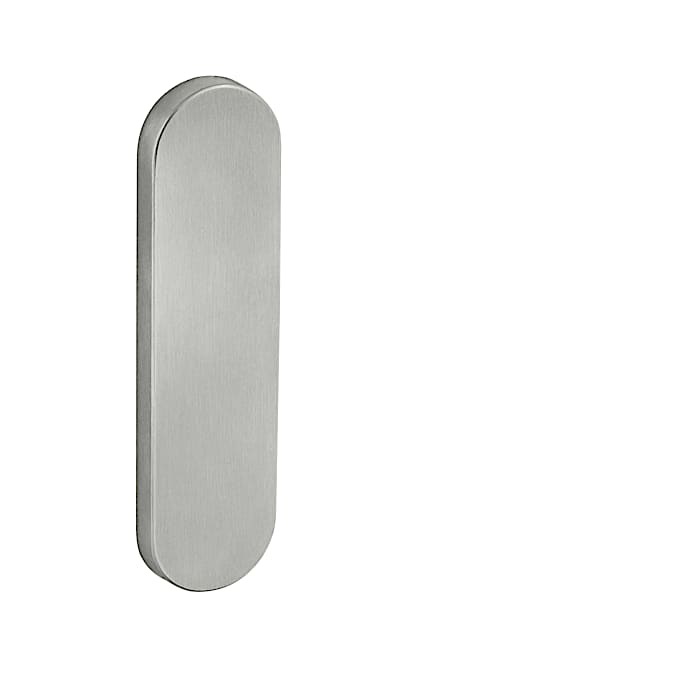

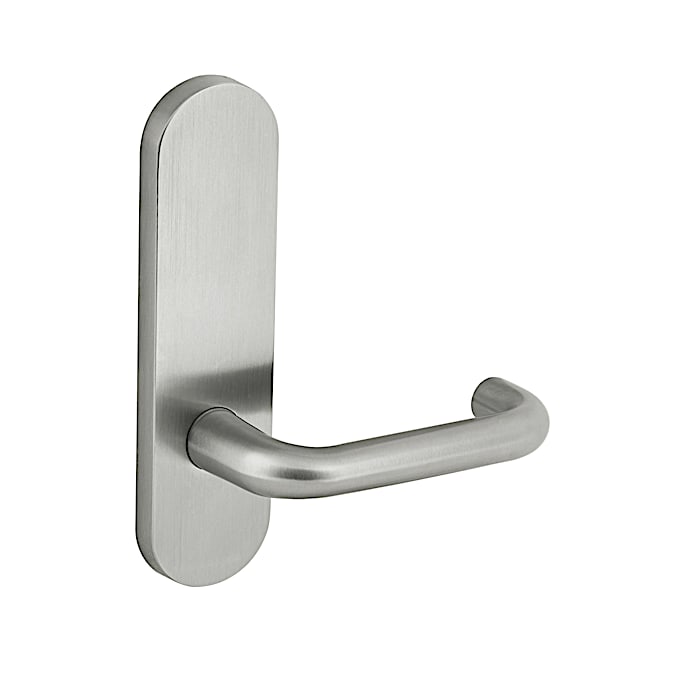

The levers are mounted on a 165mm high x 44mm wide solid 316 grade stainless steel plate projecting 10mm and are designed for use with dormakaba mortice locks and latches and are also compatible with similar locks and tubular latches.

Product Details

Construction
The 6700 series plate furniture is constructed of 316 grade stainless steel.

Fire Rating
The 6700 Series plate furniture is Fire Rated and complies with Australian Standard AS1905-1-2005 Part 1.

Disabled Access
A selection of the 6700 Series plate furniture complies with AS1428.1 - Design for Access and Mobility, depending on lever handle and turn snib selection.

Technical Details

Dimensions
165mm high, 45mm wide, 10mm thick and 149.25mm fixing centres.

Fixing

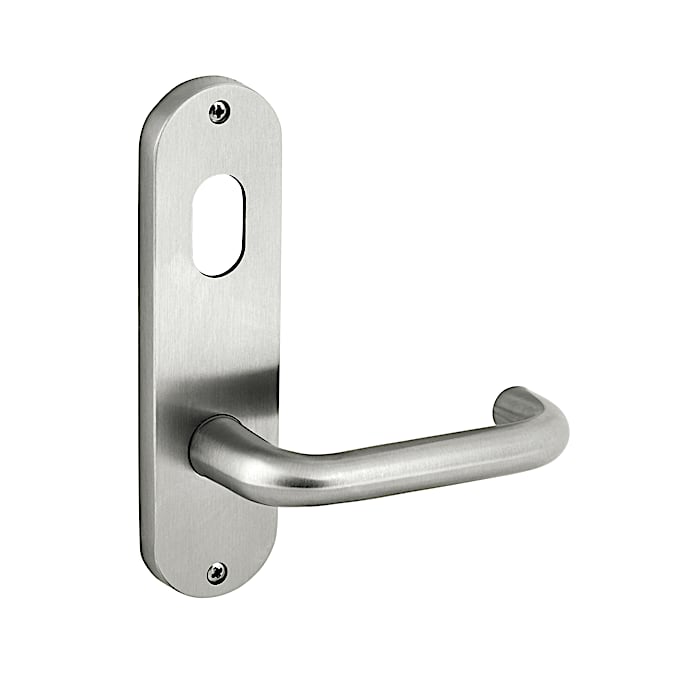

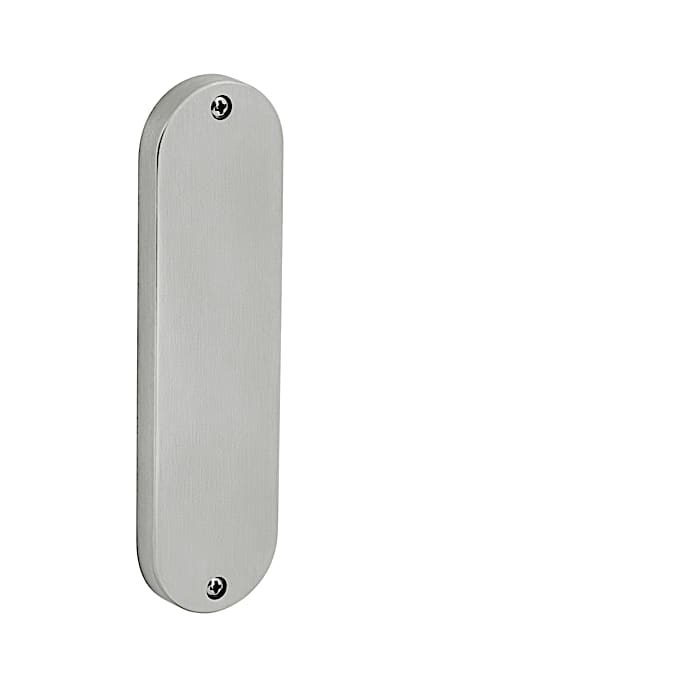

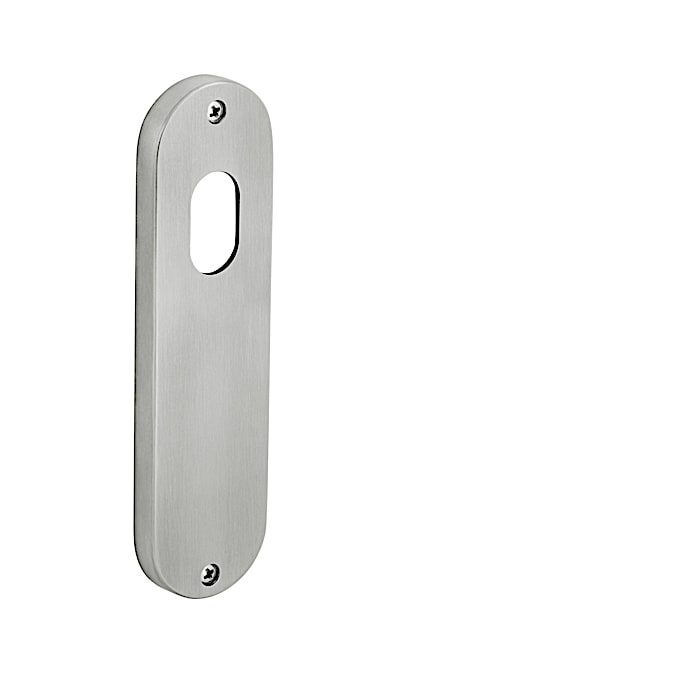

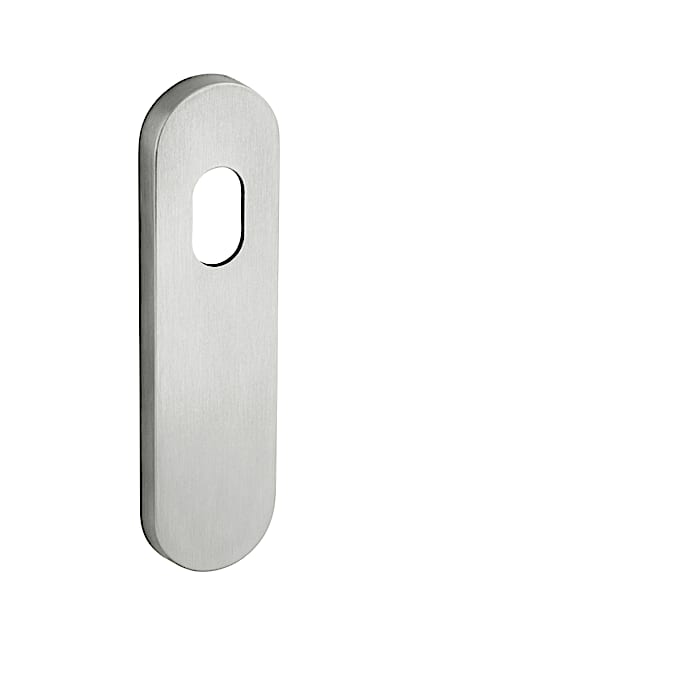

Plates are designed to fit back to back with the outside plate having concealed fixing. Secured by two M4 cross recessed countersunk screws. Fixings screws supplied in concealed fixing package only.

Handing
Levers and knobs on the 6700 series plates are non-handed and in most cases the levers can be reversed on site.

Door Thickness
Standard model is designed to suit 35mm-50mm thick door as standard.
