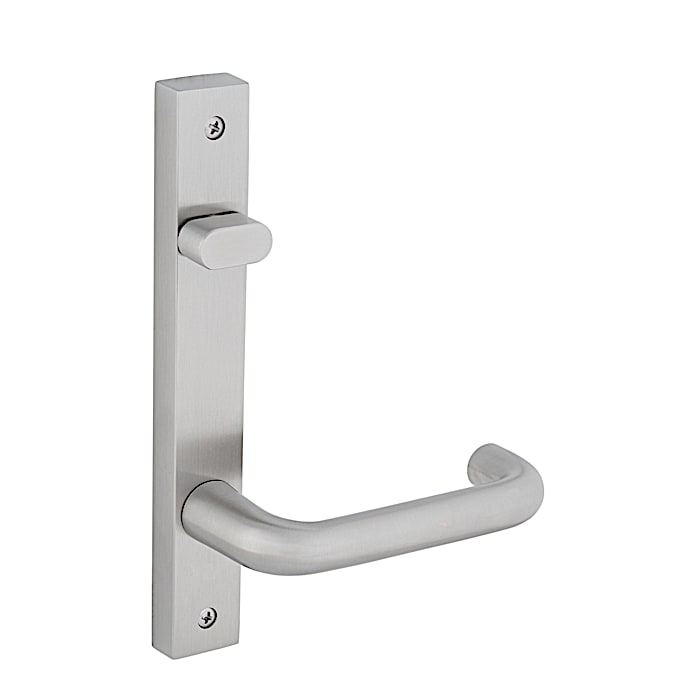

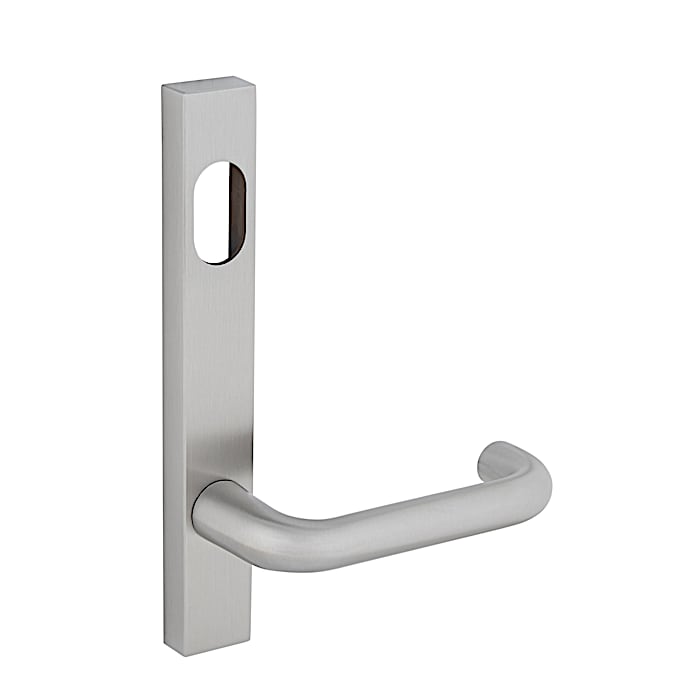

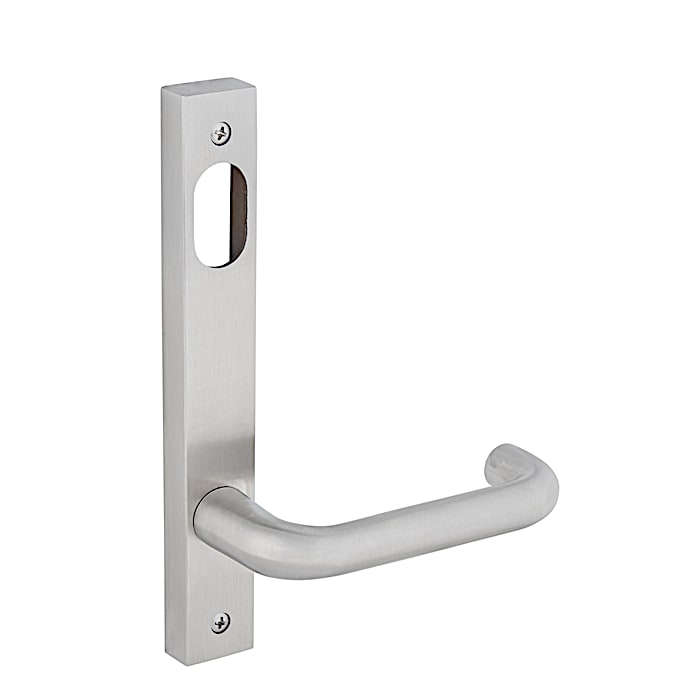

6400 Series 316 Grade Stainless Steel Narrow Stile Plate Furniture

Made from 316 grade stainless steel, the narrow stile furniture is designed for use with dormakaba short backset mortice latch and similar products.

The 6400 series is a square-end design and is supplied with a 30 lever as standard.

Other lever designs are available on request.

Special finishes are available on request.

Product Details

Construction
Constructed from 316 Grade stainless steel.

Disabled Access
A selection of the narrow stile Series plate furniture complies with AS1428 - Design for Access and Mobility, depending on turn snib selection.

Technical Details

Dimensions
185mm high, 26mm wide, 12mm thick and 159mm fixing centres.

Fixing
Plates are 12mm thick and are designed to fit back to back with 2 x M4 through fix screws. Concealed fixing to outside and visible fixing to inside. Screws supplied with concealed plates only.

Handing
The levers are non-handed & easily converted on site by rotating lever 180º.

Door Thickness
Supplied with 2 x M4, 55mm stainless steel screws and 2 x M4, 68mm stainless steel screws, the 6400 narrow style furniture series is supplied to suit door thickness 32mm to 50mm. Thicker doors require extended spindles, turn bars & fixing screws.
