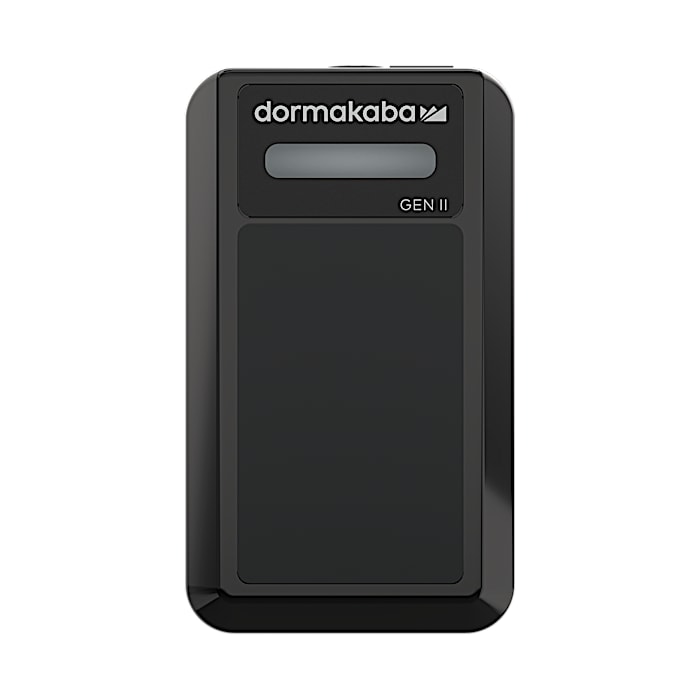

RFID Encoder GEN II

The dormakaba RFID Encoder GEN II is a hotel key card encoder that operates with dormakaba hotel access management platforms to authorize access throughout the property. The encoder encodes radio frequency identification (RFID) keycards and other media, such as fobs and wristbands, with data and commands for both guest and staff level access.

Connectivity: The key card encoder offers USB or network connectivity, which enhances front desk efficiency and employee convenience. It is powered by the USB interface (5 V) or by Power over Ethernet (PoE). Its TCP/IP interface connects directly to an Ethernet network, with no software to install on the client workstation.

Credentials and security: The RFID Encoder GEN II supports RFID keycards or fobs (ISO 14443-A), MIFARE Ultralight C, MIFARE Plus EV2 and MIFARE DESFire EV3 credentials, and dormakaba enhanced security encryption. MIFARE Plus EV2 should be used in conjunction with the enhanced security mode available in Ambiance version 2.10 or later.

dormakaba_Encoder_GENII
  • Encodes RFID keycards, fobs and wristbands for guest and staff level access
  • Encodes access to guest rooms, common areas and back-of-house areas
  • Connects by USB or network, powered by USB (5 V) or PoE
  • Connects directly to an Ethernet network over TCP/IP, with no software to install on the client workstation
  • Supports MIFARE Ultralight C, MIFARE Plus EV2 and MIFARE DESFire EV3 credentials
  • Supports dormakaba enhanced security encryption
  • Suits all hotel sizes

Product Details

  • Securely encodes keycards and other access media (fobs, wristbands and more)
  • Power source: USB interface (5 V) or Power over Ethernet (PoE)
  • TCP/IP interface connects directly to an Ethernet network (no software to install on the client workstation)
  • Supports RFID keycards or fobs (ISO 14443-A)
  • Supports MIFARE Ultralight C, MIFARE Plus EV2 and MIFARE DESFire EV3 credentials (MIFARE Plus EV2 should be used in conjunction with the enhanced security mode available in Ambiance version 2.10 or later)
  • Supports dormakaba enhanced security encryption

Technical Details

Physical characteristics

  • USB 2.0 Full Speed device interface (micro type B)
  • 10/100 Mbit Ethernet interface (RJ-45)
  • Dimensions: 3.15 W x 0.97 H x 5.37 L in. (80 W x 25 H x 136 L mm)
  • Weight: 0.275 lb (0.125 kg)
  • Operation LED
  • Configurable audio indicator

Power source

  • USB interface (5 V) or Power over Ethernet (PoE)

Certifications, approvals and testing

  • RoHS compliant
  • Complies with FCC Part 15C Class A and RSS 210
  • Complies with CE Radio Equipment Directive 2014/53/EU

Applications

  • Suitable for all hotel sizes
  • Encodes a variety of RFID accessories, including keycards, fobs and wristbands
  • Encodes access to guest rooms, common areas and back-of-house areas
