RAC5 Multi-Floor Controller and Perimeter Access Control

dormakaba RAC5 Multi-Floor Controller and Perimeter Access Control is an elevator access control system and controller for perimeter doors and common areas. RAC5 functions with RAC5 Series radio frequency identification (RFID) readers and dormakaba Ambiance Access Management Software.

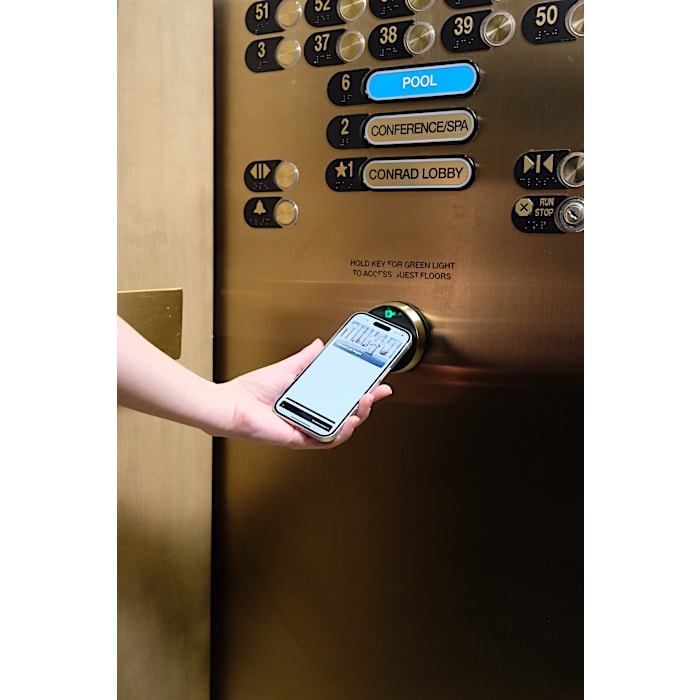

Elevator access control: The RAC5 Multi-Floor Controller (MFC) is designed to connect to a property network and provides secure stops for up to 64 floors.

Perimeter access control: RAC5 offers LT for offline use or XT for online use. RAC5 also offers optional online functionality, real-time remote cancellation of credentials, remote audit pulls and remote firmware updates.

Mobile access: RAC5 functions with dormakaba RFID readers that are Bluetooth Low Energy (BLE) capable. These readers can operate using dormakaba Mobile Access Solutions for guest suite doors and perimeter access, and with RAC5 for all elevator applications.

RAC5
  • Provides secure stops for up to 64 floors with the RAC5 Multi-Floor Controller (MFC)
  • Offers optional online functionality
  • Cancels credentials remotely in real time
  • Pulls audits and updates firmware remotely
  • Supports near field communication (NFC) programming and auditing
  • Improves security with a secure bootloader and Transport Layer Security (TLS) over Ethernet
  • Supports MIFARE Ultralight® C, MIFARE Plus® EV2 and MIFARE® DESFire® EV3 credentials

Product Details

RAC5 Multi-Floor Controller

  • Access management across multiple floors

Mobile access enabled

  • Functions with dormakaba RFID readers that are BLE capable
  • Readers can operate using dormakaba Mobile Access Solutions for guest suite doors and perimeter access, and with RAC5 for all elevator applications

Ease of use

  • NFC programming and auditing
  • Functions with dormakaba access management software and RAC5 Series RFID Readers
  • Supports MIFARE Ultralight® C, MIFARE Plus® EV2 and MIFARE® DESFire® EV3 credentials
  • Optional online functionality
  • Simplifies maintenance by updating firmware remotely

Additional features

  • Remotely cancel credentials in real time
  • Remotely pull audit
  • Secure bootloader and TLS over Ethernet for improved security
  • MFC relays expanded from 1 to 64

Technical Details

  • Standalone and online mode
  • Up to 4,000 audit records
  • Up to 2 readers (egress and ingress) for one locking device
  • Up to 1,000 ft (305 m) reader distance
  • BLE support
  • LAN interface (802.3)
  • Online secure firmware upgrade
  • TLS encrypted functionality
  • NFC programming and auditing
  • Reader status indicators
  • Locking device manual bypass
  • Fire alarm override
  • Tamper alarm
  • CE, UL, FCC, CSA and ULC certified

Applications

  • Garages
  • Parking lots
  • Pools and fitness centers
  • Locks with electric strikes or electromagnetic locks
  • Elevator access control
