Quantum Pixel+

Name: Quantum Pixel+
Brand: dormakaba
SKU: DK_92100

Quantum Pixel+ is a hotel smart lock from dormakaba that combines a sleek, minimalist design with card and mobile access for hotels of all sizes. The lock electronics are hidden within the door, and the hardware design matches the dormakaba range of rose and lever options, so the lock blends into any hotel decor.

Access options: Quantum Pixel+ supports radio frequency identification (RFID) keycards, fobs and wristbands, plus mobile keys over near field communication (NFC), Bluetooth® Low Energy (BLE) and digital wallets (Apple Wallet and Google Wallet, via a firmware update). This makes Quantum Pixel+ a smart lock for hotel teams that want more flexibility and control and a welcoming guest experience.

Operation: Quantum Pixel+ works offline with dormakaba Ambiance software as standard, with optional online control through Ambiance RX. Batteries last up to two years, with low-battery alerts.

Minimalist design: the flat, modern lock style blends with any hotel design scheme
Multiple access technologies: supports NFC, RFID, Bluetooth® and digital wallets for fast, secure access
Flexible operation: offline functionality with optional online control
Energy efficiency: batteries last up to two years, with low-battery alerts

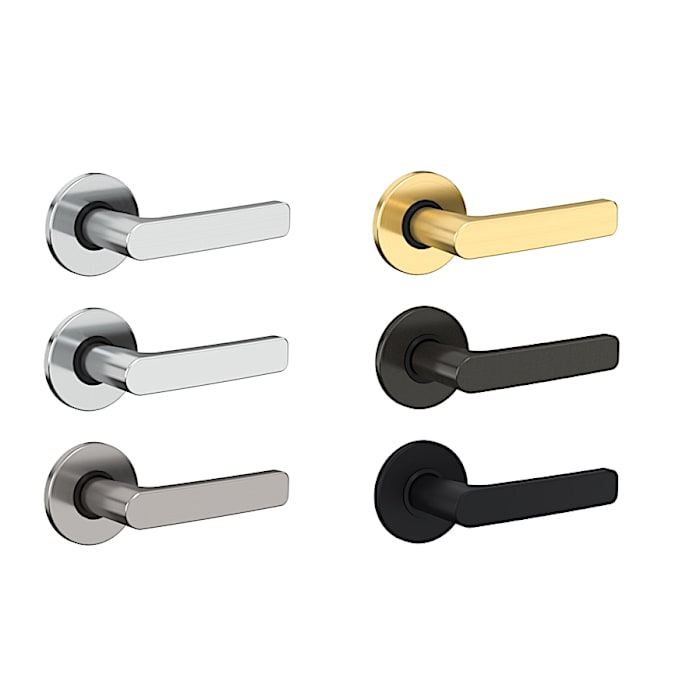

Customization: multiple finishes, lever styles and a choice of two rose designs, including a sleeker modern option
Durability: built for wear resistance and robust performance

Product Details

Access and credentials

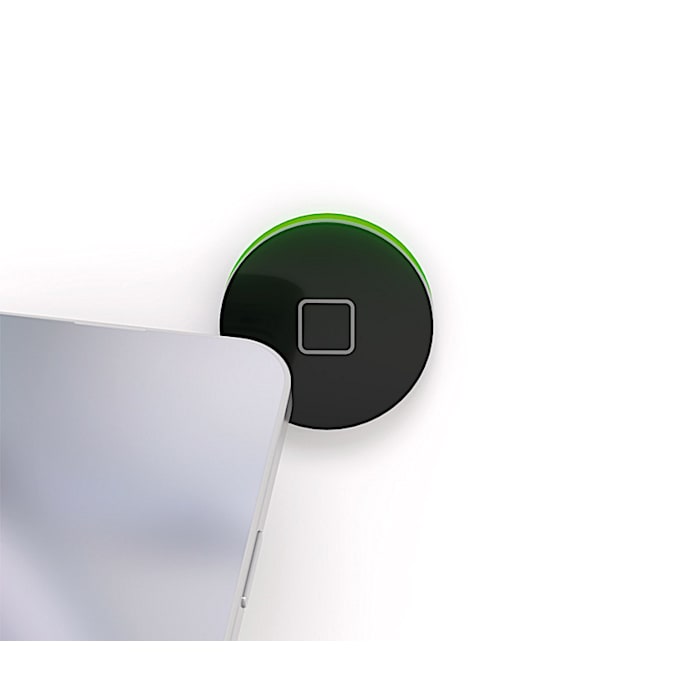

Mobile access via NFC, Bluetooth® and digital wallets (Apple Wallet and Google Wallet, via a firmware update), which can be activated at any time
RFID credentials, including keycards, fobs and wristbands

Audit and programming

Real-time date and time stamp
Audit trail memory for up to 4,000 events
Lock programming and audit records are not erased during battery replacement
Contactless NFC programming and auditing
Light indicator on the reader and handheld display for lock feedback and diagnostics

Connectivity

Standard offline operation with Ambiance, and online-ready and online-enabled configurations with optional Ambiance RX

Technical Details

Lock type: mortise door lock with 1 in. (25.4 mm) solid deadbolt (optional auto deadbolt)
Variants: interior, exterior and oceanfront
Reader materials: black polycarbonate (PC) and polycarbonate/acrylonitrile styrene (PC/ASA)
Lever materials: brass, zinc or stainless steel
Door thickness: 1 3/8 in. (35 mm) to 3 in. (76 mm)
Operating temperature: -31 °F to 151 °F (-35 °C to 66 °C)
Ingress protection: IP54
Battery life: up to 2 years with dormakaba battery pack
Privacy and security: emergency and electronic privacy override features
Certifications: ADA-compliant, UL fire-rated, tested to ANSI/BHMA Grade 1 standards

Components

Core package

Mortise lock, inside and outside levers, reader and electronic reading unit, battery pack, and Ambiance software

Optional

Ambiance RX
Auto deadbolt
Additional RFID credential types

Applications

Quantum Pixel+ suits small to large-scale hotels, for new construction or when replacing existing doors.

Access control for hotels of all sizes: seamless access for staff and a welcoming access experience for guests
New builds and door replacements: Quantum Pixel+ integrates into new projects or door upgrades
Upgrades from the previous generation: engineered for easy retrofitting and a smooth transition from the previous Quantum Pixel generation
