E-Plex 7900 RFID Wireless Lock for Keyscan Aurora Integrations

With a streamlined design this heavy duty, Grade 1, RFID electronic lockset is built for performance. The most versatile E-Plex model to date, it functions in standalone or wireless modes for cylindrical, mortise and exit device applications.

The E-Plex 7900 when used with Keyscan Aurora or LUNA software, offers the same trusted function and reliability customers have come to love with other E-Plex product offerings.

With variable models each designed to function with a designated list of credential types, E-Plex 7900 can be trusted in many access control environments.

Compatible credentials include:

  • MiFare: Keyscan K-SECURE, or CSN with public key
  • Proximity 125 kHz  
  • iCLASS Classic, SE and Seos (CSN, public key
  • and elite/custom key)
  • Farpointe Conekt Mobile (BLE) and smartcard 13.56MHz
7900
  • Proximity (125kHz)
  • MiFare
  • iCLASS Legacy

Product Details

  • Integrated with Keyscan Aurora software for wireless online or offline applications
  • Integrated with Keyscan LUNA software or Keyscan Aurora software for offline mode (with M-UNIT handheld)
  • Designed for cylindrical, mortise and exit device applications
  • Can be utilized in conjunction with E-Plex 3x00 Series and E-Plex 5x00 series electronic wireless locks
  • Compatible with most credential technologies, including Keyscan, and Farpointe BLE mobile credentials
  • Integrated RFID reader
  • Now featuring new Generation 2 zigbee gateway

Certifications:

  • ADA compliant
  • BHMA/ANSI Grade 1
  • Florida Windstorm (mortise)
  • UL10/UL10C, ULC S104
  • FCC Part 15 Class C and CE directive 2014/53/EU and industry Canada compliant.



  • Standard backset: 2 3/4” (70mm) backset
  • Key override: Ilco KIL cylinder, keyed different. Best (SFIC) and equivalents (core not included).
  • Deadbolt: 1” (25 mm) (for ASM mortise) solid metal, projected by inside thumbturn and retracted with the latch by the interior handle, emergency key override or authorized keycards.
  • Door Thickness: From 1 ⅜” to 2 ½” (35mm to 66mm)
  • Shipping Weight: 8.5 lbs (3.8 kg)
  • Housing Construction: Cast zinc alloy (outside housing levers and thumbturn), stainless steel  inside housing
  • Finishes: 626 Satin chrome, 625 Bright Chrome, 606 Satin Brass, 605 Bright Brass, 613 Oil Rubbed Bronze, 618 Bright Nickel, 619 Satin Nickel, U26 Ultra Satin Chrome, U05 Ultra Bright Brass, U06 Ultra Satin Brass, U13 Dark Bronze
  • Battery powered: Alkaline batteries (4 AA). Low battery indicator in software and on lock. Battery life up to 1 year (based on optimal usage).
  • Programming and audit trail: Lock memory stores 30,000 audits, max 10,000 users, wireless locks using Aurora software stream lock; transactions in real time with on-line programming.
  • Stand-alone lock programming and audit retrieval (requires M-Unit).

Technical Details

  • E-Plex 7900 functions in both wireless and offline mode with Keyscan Aurora
  • E-Plex E7900 functions in offline mode only with Keyscan LUNA.
  • Also functions with third-party software (see ACS partner integration) 

Zigbee configuration changes:

  • Generation 2 - Fully compatible with Gen 2 E-Plex locks and wireless networks. Generation 2 hardware is not compatible with the Generation 1 wireless network; however, it will continue to function alongside Generation 1 wireless locks and networks.
  • Generation 1 - Compatible only with existing Gen 1 locks and zigbee wireless network.

Contact your sales representative for any generation 1 hardware needs.

Functionalities

The dormakaba E-Plex 7900 RFID Wireless Lock is ideal for securing offices, classrooms, healthcare facilities, government buildings, warehouses, laboratories, remote buildings, and other commercial openings where wired access control is cost-prohibitive.

It delivers enterprise-grade RFID and mobile credential security with the flexibility of standalone offline operation or real-time wireless management—without the expense and disruption of wiring every door.

Components

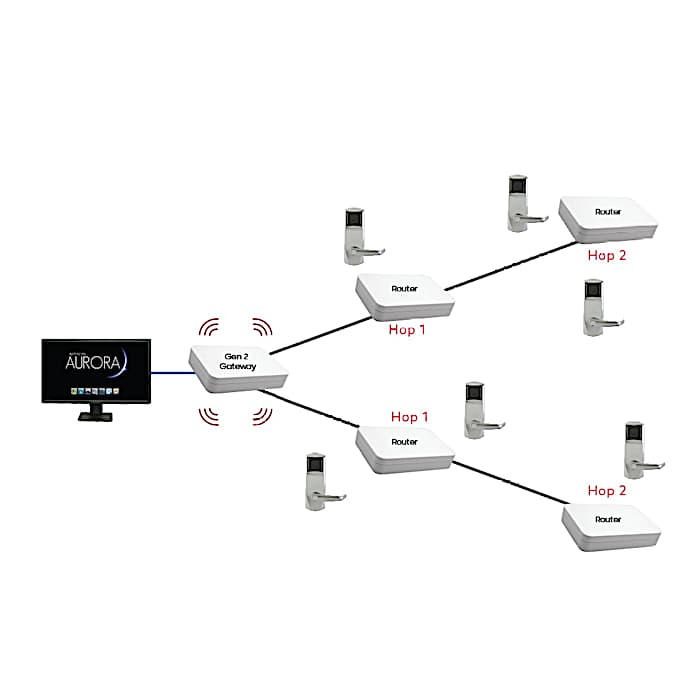

E-Plex 7900 wireless applications
Now using Generation 2 Wireless Gateway. 

  • Up to 100 gateways per network
  • 100 devices (locks/routers) per gateway
  • Up to 8 routers per gateway
  • Locks/routers can be up to 2-hops from gateway
  • Locks will ping and look for closest gateway/router

E-Plex 7900 offline applications

  • Aurora or Luna programing and audit data is transported to and from each lock directly using the M-Unit handheld

Applications

Typical applications include:

  • Corporate offices – Executive offices, HR departments, IT/server rooms, finance offices, conference rooms, and after-hours employee entrances.
  • Healthcare facilities – Medication rooms, laboratories, staff-only areas, medical records storage, administrative offices, and controlled corridors.
  • Educational campuses – Classrooms, faculty offices, research labs, residence halls, libraries, equipment storage, and administrative buildings.
  • Government and municipal buildings – Secure offices, evidence rooms, archives, records storage, utility rooms, and restricted public service areas.
  • Commercial and industrial facilities – Warehouses, maintenance shops, electrical rooms, inventory storage, production offices, and employee-only entrances.
  • Multi-tenant buildings – Individual tenant suites, amenity spaces, leasing offices, and shared building facilities.
  • Hospitality and mixed-use properties – Staff entrances, back-of-house areas, offices, storage rooms, and service corridors.
  • Critical infrastructure – Telecommunications rooms, network closets, utility spaces, and remote facilities where wiring is impractical.
