RCI F8315/F8325 MultiMag®

Name: RCI F8315/F8325 MultiMag®
Brand: dormakaba
SKU: DK_81100

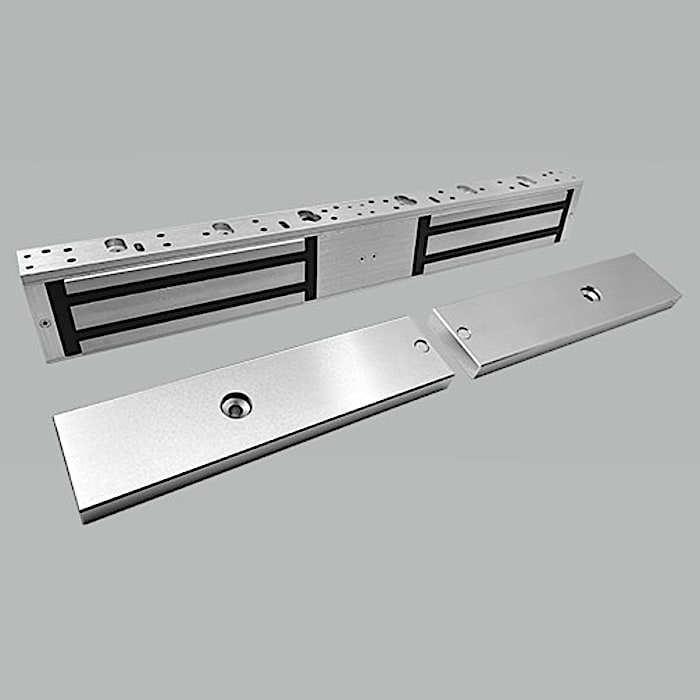

The dormakaba RCI F8315 MultiMag® is a 1500 lb maglock, a fail-safe electromagnetic lock for single inswing or outswing doors, and the RCI F8325 is the double version for pairs of inswing or outswing doors. Both meet the requirements for special locking applications and belong to the RCI MultiMag® series, designed for easy installation and multi-purpose operation on interior or perimeter doors.

Each electromagnet provides up to 1,500 lbf (6,672 N) of holding force. The locks auto-sense 12 to 24 VDC and draw 650 mA or 450 mA. Fail-safe means the lock releases the door when power is removed. A built-in time delay, plug-in wiring terminals, an easy-access wiring cavity and surge protection are standard.

Installation: the mounting bracket has keyhole mounting that supports the magnet, freeing the installer's hands to fix the magnet mounting screws. The removable cavity cover gives quick access to the wiring. Finishes are Satin Aluminum or Anodized Dark Bronze.

Monitoring and listings: an optional door status sensor (DSS) and security condition sensor (SCS) are available for security monitoring. The F8315/F8325 is a UL 294 (Underwriters Laboratories) and CAN/ULC S533 special locking arrangement component, listed to CAN/ULC S104 and UL 10C as auxiliary locks for fire doors rated up to 3 hours, and certified to ANSI/BHMA A156.23, Grade 1. It is covered by a limited lifetime warranty.

Up to 1,500 lbf (6,672 N) holding force per electromagnet
Auto-sensing 12 to 24 VDC; 650/450 mA
Fail-safe: the lock releases when power is removed
Listed for fire doors rated up to 3 hours (UL 10C and CAN/ULC S104 auxiliary locks)
UL 294 and CAN/ULC S533 special locking arrangement component
Certified to ANSI/BHMA standard A156.23, Grade 1
Limited lifetime warranty

Product Details

1,500 lbf (6,672 N) holding force
Auto-sensing 12 to 24 VDC
Keyhole mounting installation
Built-in time delay
Convenient plug-in wiring terminals
Easy-access wiring cavity
Surge protection
Available in Satin Aluminum or Anodized Dark Bronze finish

Technical Details

F8315 dimensions: 10-1/2 in. W x 2-7/8 in. H x 1-5/8 in. D (268 mm x 73 mm x 41 mm)
F8325 dimensions: 21-1/8 in. W x 2-7/8 in. H x 1-5/8 in. D (536 mm x 73 mm x 41 mm)
Armature plate(s): 7-7/16 in. W x 2-3/8 in. H x 5/8 in. D (190 mm x 61 mm x 16 mm) each
Voltage and power: 12 to 24 VDC; 650/450 mA
Monitoring: optional door status sensor (DSS) and security condition sensor (SCS) available
Holding force: up to 1,500 lbf (6,672 N) (each electromagnet)
Mode: fail-safe
Finishes: Satin Aluminum or Anodized Dark Bronze

Components

Angle Brackets

For narrow aluminum frames or center-hung single-acting doors, when inadequate space is left for mounting. Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

AB-01: 1 in. H x 1 in. W x 10-1/2 in. L (25 mm x 25 mm x 267 mm), finish 28/40, for F8315
AB-02: 1-1/2 in. H x 1 in. W x 10-1/2 in. L (38 mm x 25 mm x 267 mm), finish 28/40, for F8315
AB-03: 1-1/2 in. H x 1-1/4 in. W x 10-1/2 in. L (38 mm x 32 mm x 267 mm), finish 28/40, for F8315
AB-20: 1 in. H x 1 in. W x 21 in. L (25 mm x 25 mm x 533 mm), finish 28/40, for F8325
AB-21: 1-1/2 in. H x 1 in. W x 21 in. L (38 mm x 25 mm x 533 mm), finish 28/40, for F8325
AB-22: 1-1/2 in. H x 1-1/4 in. W x 21 in. L (38 mm x 32 mm x 533 mm), finish 28/40, for F8325

Armature Bolts

Compatible with F8315:

ARMB155: 2-1/8 in. (54 mm), for doors 1-3/4 to 2-1/4 in. (44 to 57 mm) thick
ARMB170: 2-3/4 in. (70 mm), for doors 2-1/4 to 2-3/4 in. (57 to 70 mm) thick
ARMB180: 3-1/8 in. (79 mm), for doors 2-1/2 to 3 in. (70 to 76 mm) thick

Compatible with F8325:

ARMB255: 2-1/8 in. (54 mm), for doors 1-3/4 to 2-1/4 in. (44 to 57 mm) thick
ARMB270: 2-3/4 in. (70 mm), for doors 2-1/4 to 2-3/4 in. (57 to 70 mm) thick
ARMB280: 3-1/8 in. (79 mm), for doors 2-1/2 to 3 in. (70 to 76 mm) thick

Armature Plates

AP01: 3/8 in. (9.5 mm) steel, for F8315, F8325
AP02: 5/8 in. (16 mm) steel, for F8315, F8325
AP20: 3/8 in. (9.5 mm) steel, for F8315xDSS, F8325xDSS
AP21: 5/8 in. (16 mm) steel, for F8315xDSS, F8325xDSS

Armature Plate Holders

Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

AH10: 8310 armature plate holder, finish 28/40, for F8315
AH15: 8310xDSS armature plate holder, finish 28/40, for F8315xDSS
AH20: 8320 armature plate holder, finish 28/40, for F8325
AH25: 8320xDSS armature plate holder, finish 28/40, for F8325xDSS

Conduit Mounting Bracket

Used anywhere surface-mounted conduit is required to run wires to the face of the magnetic lock.
CMB108: 1 in. D x 2-11/64 in. H x 10-9/16 in. L (25 mm x 55 mm x 268 mm), finish 28, for F8315

DSS Retrofit Kits

If a door status sensor is wanted after the magnet has been installed, it can be added on site. The kit includes both Brushed Anodized Aluminum (28) and Brushed Anodized Dark Bronze (40) cover plate screws.

DSR01: 3/8 in. (9.5 mm) steel, for F8315
DSR02: 5/8 in. (16 mm) standard steel, for F8315
DSR03: 3/8 in. (9.5 mm) steel, for F8325
DSR04: 5/8 in. (16 mm) standard steel, for F8325

Filler Bars

For frame stops narrower than 2 in. (51 mm). Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

FB-01: 1/4 in. H x 3/4 in. W x 10-1/2 in. L (6 mm x 19 mm x 267 mm), finish 28/40, for F8315
FB-02: 3/8 in. H x 3/4 in. W x 10-1/2 in. L (10 mm x 19 mm x 267 mm), finish 28/40, for F8315
FB-03: 1/2 in. H x 3/4 in. W x 10-1/2 in. L (13 mm x 19 mm x 267 mm), finish 28/40, for F8315
FB-04: 5/8 in. H x 3/4 in. W x 10-1/2 in. L (16 mm x 19 mm x 267 mm), finish 28/40, for F8315
FB-05: 1/2 in. H x 5/8 in. W x 10-1/2 in. L (13 mm x 16 mm x 267 mm), finish 28/40, for F8315
FB-20: 1/4 in. H x 3/4 in. W x 21 in. L (6 mm x 19 mm x 533 mm), finish 28/40, for F8325
FB-21: 3/8 in. H x 3/4 in. W x 21 in. L (10 mm x 19 mm x 533 mm), finish 28/40, for F8325
FB-22: 1/2 in. H x 3/4 in. W x 21 in. L (13 mm x 19 mm x 533 mm), finish 28/40, for F8325
FB-23: 5/8 in. H x 3/4 in. W x 21 in. L (16 mm x 19 mm x 533 mm), finish 28/40, for F8325
FB-24: 1/2 in. H x 5/8 in. W x 21 in. L (13 mm x 16 mm x 533 mm), finish 28/40, for F8325

Glass Door Brackets

Not recommended for F8315 or F8325.

L Brackets

Required when there is no space on the header to mount the magnetic lock. The magnet mounts on the bracket and the bracket mounts on the vertical face of the frame. Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

LB-10: 2-1/2 in. H x 2 in. W x 10-1/2 in. L (64 mm x 51 mm x 267 mm), finish 28/40, for F8315
LB-20: 2-1/2 in. H x 2 in. W x 21 in. L (64 mm x 51 mm x 533 mm), finish 28/40, for F8325

Spacers

For aluminum blade stop frames. Used to lower the magnet to align with the armature plate. Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

SP-01: 1/4 in. H x 1-1/2 in. W x 10-1/2 in. L (6 mm x 38 mm x 267 mm), finish 28/40, for F8315
SP-02: 3/8 in. H x 1-1/2 in. W x 10-1/2 in. L (10 mm x 38 mm x 267 mm), finish 28/40, for F8315
SP-03: 1/2 in. H x 1-1/2 in. W x 10-1/2 in. L (13 mm x 38 mm x 267 mm), finish 28/40, for F8315
SP-04: 5/8 in. H x 1-1/2 in. W x 10-1/2 in. L (16 mm x 38 mm x 267 mm), finish 28/40, for F8315
SP-20: 1/4 in. H x 1-1/2 in. W x 21 in. L (6 mm x 38 mm x 533 mm), finish 28/40, for F8325
SP-21: 3/8 in. H x 1-1/2 in. W x 21 in. L (10 mm x 38 mm x 533 mm), finish 28/40, for F8325
SP-22: 1/2 in. H x 1-1/2 in. W x 21 in. L (13 mm x 38 mm x 533 mm), finish 28/40, for F8325
SP-23: 5/8 in. H x 1-1/2 in. W x 21 in. L (16 mm x 38 mm x 533 mm), finish 28/40, for F8325

Split Armature Plates

Not recommended for F8315 or F8325.

Top Jamb Z Bracket

Allows horizontal adjustment of the armature plate. Mounted on the pull side of the door. Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

TJ10: 8310 Z bracket kit, finish 28/40, for F8315
TJ20: 8320 Z bracket kit, finish 28/40, for F8325

Hardware Packs

HK8310: includes Allen wrench, metal sleeve, armature bolt, sex nut, bolt, steel washers, rubber washers, flat head screws, pan head screws, plugs and TEK screws, for F8315, F8325 (buy 2 to make one F8325 hardware kit)
