ILCO ATLAS System

The ILCO ATLAS System has been discontinued. Limited parts and support may be available. Download support material below or contact a support representative for additional information using one of the phone numbers from the contact section.

Downloads

Product details

Security Features

  • Time-based access control system with user selectable keycard expiry
  • Keycard encryption: proprietary and unique to each installation
  • Encrypted keycards using a proprietary encryption algorithm (the data on the card does not reveal the room number)
  • Operator password required for any system operation
  • Operator levels: 8
  • Audit trail: unlimited keycard-making transactions, sorted by room, operator, or key type

System Features

  • Property size: Maximum 16,000 rooms and 1,000 suites (maximum of 8 inner doors per suite)
  • Common area: 8 guest and 16 staff common areas plus 64 additional common areas (V.3.1 with 790 V.2)
  • Restricted areas: 200
  • Staff Access Levels: 5 Sub-Master levels per lock: 255 sections, 255 floors, 255 areas, 255 groups, 255 zones
  • Room# Description: 64 characters (alphanumeric digits)
  • Keycards Validity: Selectable from one hour to 7 years
  • Pre-registered Guest: Keycards can be made up to 10 days in advance
  • Time Zone: Predefined time zones available for staff keycards in locks
    8 customer defined time zones available for guest, staff & passage option in RAC card reader & 790-II
  • Keycards: Low/high coercivity track 1, 2 or 3 magnetic stripe cards or Mifare Classic (4 byte NUID) Mini, 1K, or 4K RFID cards

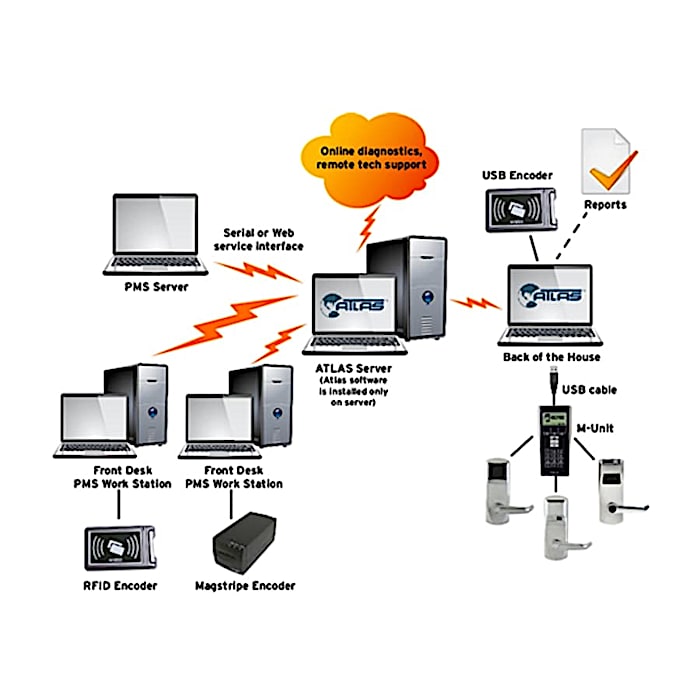

  • Keycard Handling: Motorized or RFID encoder
  • Compatibiity: POS and PMS
  • Number of Workstations: 50 maximum LAN/WAN
  • Workstation Browser: IE 6.0 and higher
  • Communication with Locks: Through the Kaba M-Unit

Kaba products are certified to a number of performance-oriented standards. In obtaining these certifications, Kaba ensures product durability and performance, giving our customers the peace of mind that comes with owning a quality solution that meets and exceeds industry standards for access control, life safety, and security

Go to document section for a complete list of Ilco product certifications

RFID Encoder

  • RFID cards or tags

Motorized Encoder

  • Magnetic card low or high coercivity
  • Connects to standard PC front desk workstations running IE 6.0
  • ISO Thrift Format
  • UL certified
  • Serial or USB connectivity

M-Unit (Maintenance Unit)

  • Wireless, standard, low cost off the shelf hand held Palm based unit (OS 4.1 or better)
  • Password Required
  • Time-Out (Auto Delete Lock Configuration)
  • Uses infrared technology to :
    • Download information
    • Program and override the lock and/or RAC
    • Synchronize clock
    • Extract and view Audit
    • Send audit file and M-Unit activity log to ATLAS

IPM (Infrared Programming Module)

  • Wireless Interface between M-Unit & lock / RAC
  • Operates on 4 AA batteries (up to 2 years life)
  • Built in proprietary encrypted protocol which provides higher lever of security​

  • Suitable for small to very large scale hotels
  • Mag Stripe and RFID systems
  • PMS/POS/Self check-in kiosk interfacing
