T300 Series Locksets

The dormakaba T300 Series offers privacy lockset, passage lockset and dummy trim functions, with lever designs that match the Saffire EVO and LX Series RFID locks throughout a suite. The T300 Series meets ANSI/BHMA Grade 3 requirements (passage and privacy) and is available in 4 finishes.

Installation: T300 locksets are non-handed and easy to install in wood or hollow metal doors with ANSI/BHMA A156.115 preparations for bored locks, with no through-bolting.

The T300 Series is recommended for high-end apartments, condos and residential multifamily facilities. Mechanical parts have a limited lifetime warranty and finishes have a 5-year warranty.

dormakaba T300
  • Lever designs that match Saffire EVO and LX Series RFID locks
  • Passage, privacy and dummy functions
  • ANSI/BHMA Grade 3 (passage and privacy)
  • Non-handed; installs in wood or hollow metal doors with no through-bolting
  • 4 finishes: satin nickel, matte black, bright chrome and satin chrome
  • Warranty: limited lifetime (mechanical); 5 years (finish)

Product Details

  • Lever designs complement full-bodied latch, mortise and panic device locks in the Saffire portfolio
  • Easy to install in wood or hollow metal doors with ANSI/BHMA A156.115 preparations for bored locks (no through-bolting)
  • Non-handed design
  • Warranty: mechanical, limited lifetime; finish, 5 years

Finishes

  • 619 Satin Nickel
  • 622 Matte Black
  • 625 Bright Chrome
  • 626 Satin Chrome

Technical Details

  • Exposed trim: brass, bronze or stainless steel; B style rose, 2 9/16 in. (65 mm) diameter
  • Handing: non-handed
  • Door thickness: 1 3/8 in. to 1 3/4 in. (35 mm to 44.5 mm) standard
  • Backset: adjustable, fits 2 3/8 in. or 2 3/4 in. (60 mm or 70 mm)
  • Latch face: 1 in. (25.4 mm) available
  • Strike: full lip

Certification and compliance

  • ADA compliant levers (passage, privacy, dummy)
  • ANSI/BHMA Grade 3 (passage and privacy)
  • UL/ULC 30-minute fire rating (passage only)

Functionalities

  • T301 Single dummy: dummy trims neither lock nor turn. They are pushed or pulled to operate a door and resemble the other lockset handles throughout a facility or suite.
  • T310 Passage/Closet: passage sets are used when doors do not need to lock. There is no key cylinder and no means to lock a passage set.
  • T340 Privacy: privacy sets are often used for single-occupant restrooms or dressing rooms which require a key or switch cylinder to enable locking.

Components

Available kits

  • Latch and strike kits include a UL rated latch assembly; round chrome and black faceplates; square chrome and black faceplates; or chrome and black screw sets

Applications

  • Recommended for high-end apartments, condos and residential multifamily facilities

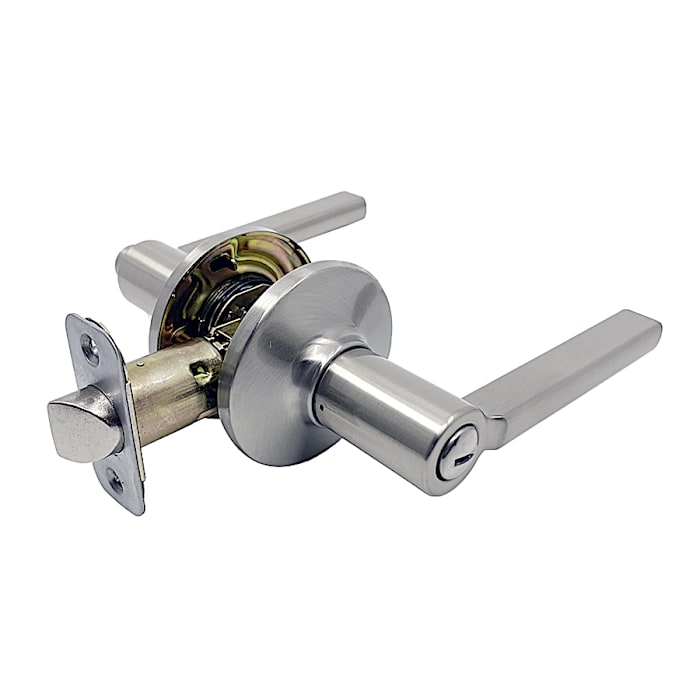

dormakaba T300
dormakaba T300
dormakaba T300
