HID Reader Series

HID 125 kHz Standard Frequency Reader Series for use with Keyscan systems are discontinued and are no longer available.

All customers impacted by this announcement are encouraged to contact their dormakaba sales representative for information about the new dual technology SIGNO KS-0 Series readers that are designed to replace all HID Proximity readers.

HID 125kHz legacy credentials for use with these standard frequency readers are still available. 

Warranty and technical support will continue to be available for the foreseeable future. 

For any questions or concerns regarding HID Signo migration plans please contact your dormakaba representative for additional information using one of the phone numbers from the contact section. 

HID Readers impacted include: 

HID-6005b Mini Prox Reader 
HID-5395 Slim Line II Reader 
HID-5455 Prox Pro Reader 
HID-5355KP Prox Pro Reader & Keypad 
HID-5375 Maxi Pro Long-range Reader

You are encouraged to scroll below to downloads and refer to our Reader and Credentials resources including the cross reference for help identifying all of our available readers and the credentials that will function with them.

Product Details

See HID Signo Reader Series

KS-1 series
KS-2 series
KS-0 series

Technical Details

HID-6005b Mini Prox Reader
Dimensions: 3.135" x 1.720" x 0.660" (7.96cm x 4.37cm x 1.68cm)

Power supply: 5-16 VDC
Standard current draw: 30 mA
Peak current draw: 75 mA
Operating temperature: -22º to 150º F (-30º to 65º C)
Operating humidity: 0-95% relative humidity noncondensing
Weight: 2.7 oz. (75 gm)
Cable distance: Wiegand Interface 500ft (150m) (22AWG). Use shielded cable for best results

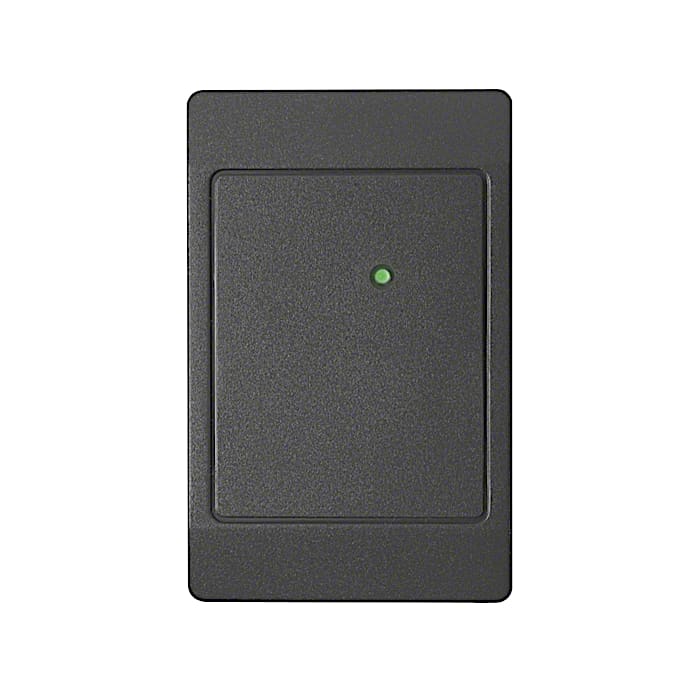

HID 5395 Slim Line II Reader
Dimensions: 4.70" x 3.00" x 0.68" (11.9cm x 7.6cm x 1.7cm)

Power supply: 5-16 VDC
Standard current draw: 20 mA (12 VDC)
Peak current draw: 115 mA (12 VDC)
Operating temperature: -22º to 150º F (-30º to 65º C)
Operating humidity: 0-95% relative humidity noncondensing
Weight: 3.3 oz. (94 gm)
Cable distance: Wiegand Interface 500ft (150m) (22AWG). Use shielded cable for best results

HID-5455 Prox Pro Reader
Dimensions: 5.00" x 5.00" x 1.00" (12.7cm x 12.7cm x 2.54cm)

Power supply: 5-16 VDC
Standard current draw: 25 mA (12 VDC)
Peak current draw: 125 mA (12 VDC)
Operating temperature: -22º to 150º F (-30º to 65º C)
Operating humidity: 0-95% relative humidity noncondensing
Weight: 13.6 oz. (385 g)
Cable distance: Wiegand Interface 500ft (150m) (22AWG). Use shielded cable for best results

HID-5355KP Prox Pro Reader & Keypad
Dimensions: 5.00" x 5.00" x 1.00" (12.7cm x 12.7cm x 2.54cm)

Power supply: 5-16 VDC
Standard current draw: 100 mA (12 VDC)
Peak current draw: 120 mA (24 VDC
Operating temperature: -22º to 150º F (-30º to 65º C)
Operating humidity: 0-95% relative humidity noncondensing
Weight: 12 oz. (336 gm)
Cable distance: Wiegand Interface 500ft (150m) (22AWG). Use shielded cable for best results

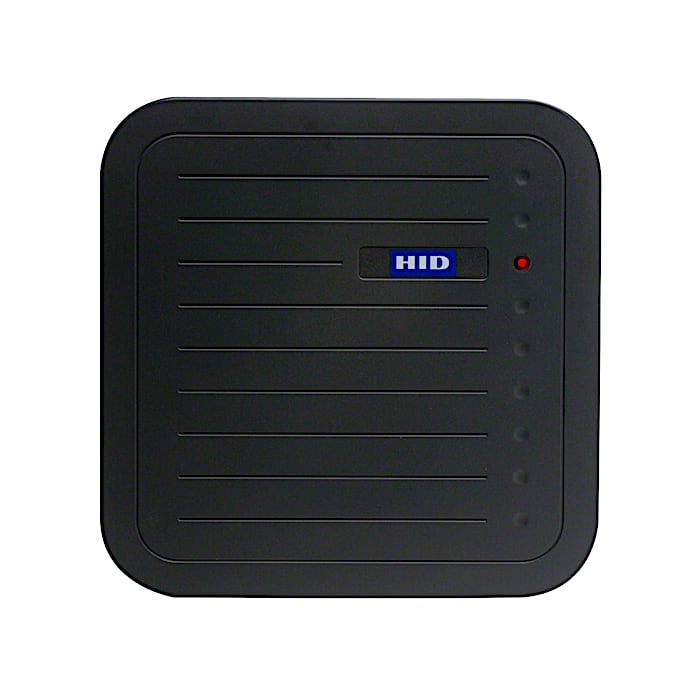

HID-5375 Maxi Pro Long-range Reader
Dimensions: 11.8" x 11.8" x 1.0" (30.0cm x 30.0cm x 2.54cm)

Power supply: 12 or 24 VDC
Standard current draw: 200 mA (12 VDC)
Peak current draw: 700 mA (12 VDC)
Operating temperature: -22º to 150º F (-30º to 65º C)
Operating humidity: 0-95% relative humidity noncondensing
Weight: 51 oz. (1.4 kgm)
Cable distance: Wiegand Interface 500ft (150m) (22AWG). Use shielded cable for best results
