RCI DKPS Power Supply Series

Name: RCI DKPS Power Supply Series
Brand: dormakaba
SKU: DK_578

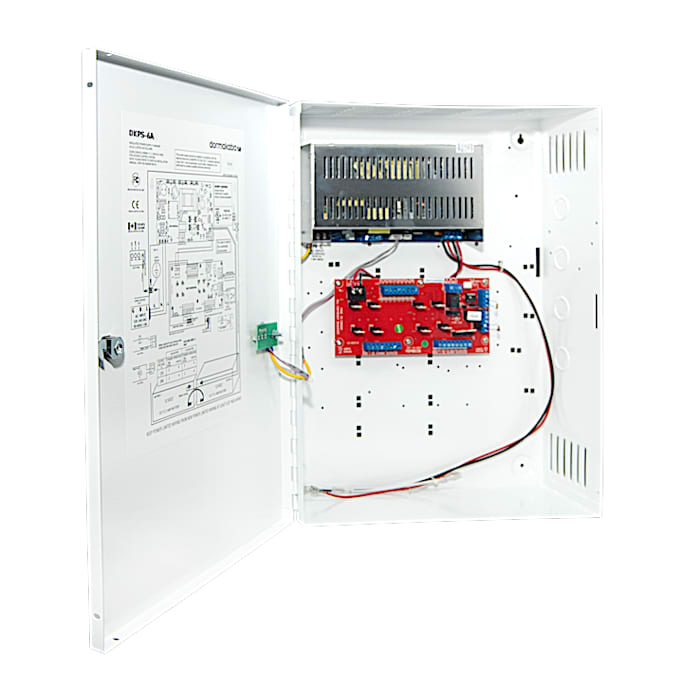

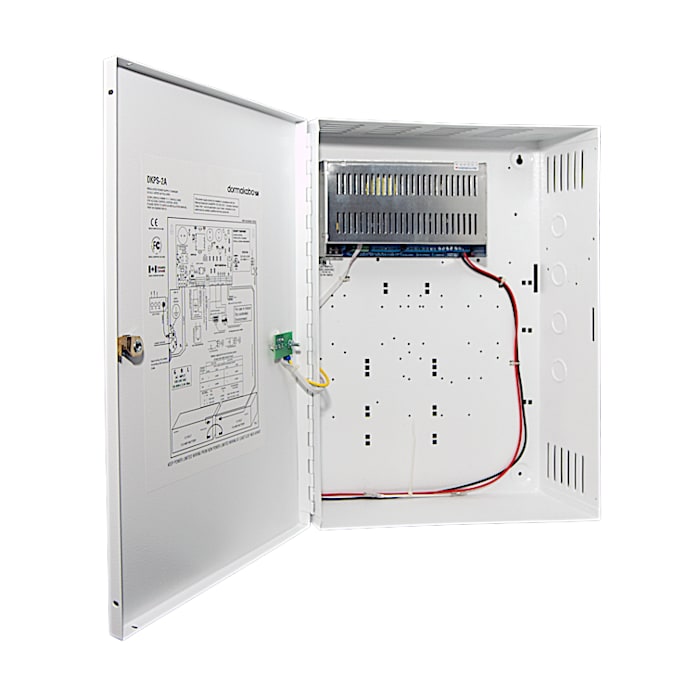

The dormakaba RCI DKPS Power Supply Series converts 120 to 240 VAC, 50 or 60 Hz input into a continuous 2, 4 or 6 amp supply at 12 or 24 VDC for access control and egress door applications. Three models are available: DKPS-2A, DKPS-4A and the DKPS-6A, a 6 amp access control power supply.

Supervised operation: each RCI DKPS power supply has two supervisory outputs (AC power fail and battery fail), and the power distribution controller board adds two more (DC fail and status). These outputs can be connected to remote access control units to monitor power supply operation. Supervisory outputs use Form C relays.

Protected outputs and standby power: the power distribution controller board provides electronic over-current protection on the voltage outputs, 4 on the 2 amp model and 8 on the 4 and 6 amp models. Where the application permits, the DKPS series offers several standby battery options to keep power flowing for a specified period during an AC power failure.

Continuous 2, 4 or 6 amp output at selectable 12 or 24 VDC
4 protected outputs (DKPS-2A) or 8 protected outputs (DKPS-4A and DKPS-6A) with electronic over-current protection
Supervisory Form C relay outputs for AC failure, battery fault and DC output failure
Built-in charger for sealed lead acid or gel cell standby batteries, with immediate switch-over on AC failure
Fire Panel Disconnect Board (FPDB) included as a standard feature

Product Details

Supplies 4 outputs (8 for the 4A and 6A models) of nominal, continuous power ideal for a wide range of electronic and access devices, including:

Electromagnetic locks
Electric strikes
Specialty locks
Access control systems
Motorized latch retraction (MLR)
Egress doors and exit devices

Technical Details

DKPS-2A

Input voltage: 110 to 220 VAC, 50 to 60 Hz, 2.4 A
Output voltage: selectable 12 or 24 VDC; 4 voltage outputs, each output max 2.0 A, with electronic over-current protection set at 2 amp

DKPS-4A

Input voltage: 110 to 220 VAC, 50 to 60 Hz
Output voltage: selectable 12 or 24 VDC; 8 voltage outputs, each output max 2.0 A, with electronic over-current protection set at 4 amp

DKPS-6A

Input voltage: 110 to 220 VAC, 50 to 60 Hz, 2.5 A
Output voltage: selectable 12 or 24 VDC; 8 voltage outputs, each output max 2.0 A, with electronic over-current protection set at 6 amp

Shared features

Built-in dedicated charger for sealed lead acid or gel cell type batteries
Battery load and charge test every 48 hours
Battery reversal protection
Low battery indication at 11.40/22.80 V
Low battery disconnect at 10.10/20.30 V
Immediate switch-over to standby battery upon AC failure
Common ""Batt. Fault"" CMOS relay and indicator for all battery and charger faults, 30 VDC at 60 mA
CMOS relay output and indicator for AC failure within 60 seconds, 30 VDC at 60 mA
Light-emitting diode (LED) status display on the enclosure door
Common ""Out Fault"" CMOS relay for DC failure on any of the outputs, 30 VDC at 60 mA
Battery charging leads included
Fire Panel Disconnect Board (FPDB) included as a standard feature
Tamper switch optional (required when the installation must meet Underwriters Laboratories (UL) 294 Edition 6 or higher)
