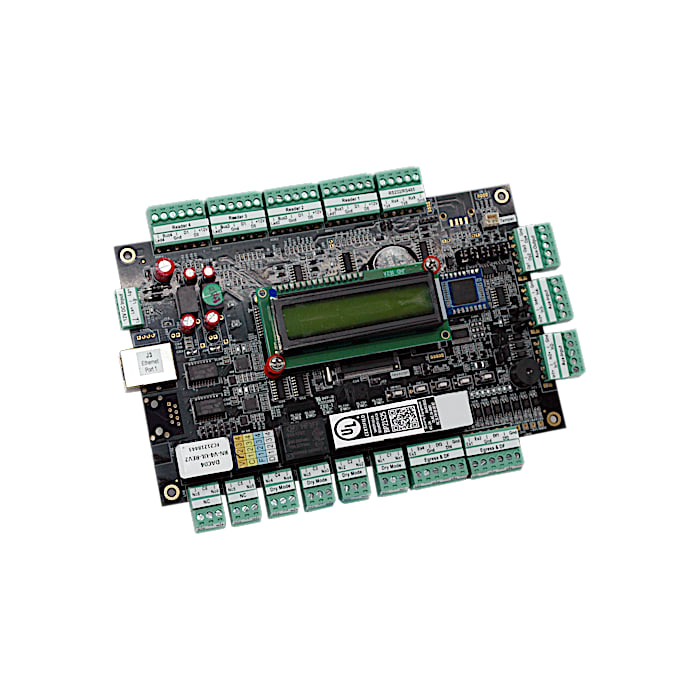

Keyscan KC Series Door Control Panels

Keyscan KC series panels are designed to be compatible with their legacy CA Series predecessors - with one major difference. Communications with Keyscan Aurora software PC or Server and amongst multiple panels will move to TCP/IP protocol (CAT5 ethernet) from the legacy protocol. NETCOM TCP/IP modules are no longer required for KC Series panels.

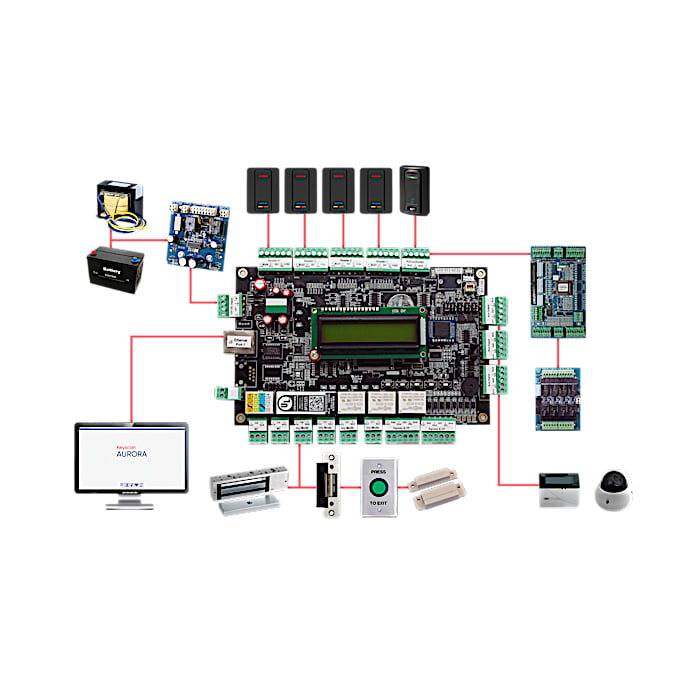

The KC Series control panels will continue to support peripheral and expansion devices (IOCB1616, OCB8) plus a host of readers, contacts, electronic/wireless locks, strikes, electromagnetic locks, and request to exit touch or touchless actuator devices.

The Keyscan KC series next generation control panels will usher in a new spectrum of innovative functions, including:

• Functions with Keyscan Aurora 2.0 (or higher)
• LCD screen display for instant troubleshooting
• Menu selections for at-board programming
• Built in TCP/IP (ethernet) port
• Credential capacity up to 100,000
• Support for wiegand and OSDP V2.1.5 reader protocol
• Network firmware updates
• GUI embedded browser for hardware set up
• Half the size of CA legacy panels
• At least 4 off board peripherals now built on-board
• 5 year warranty

Backward compatible

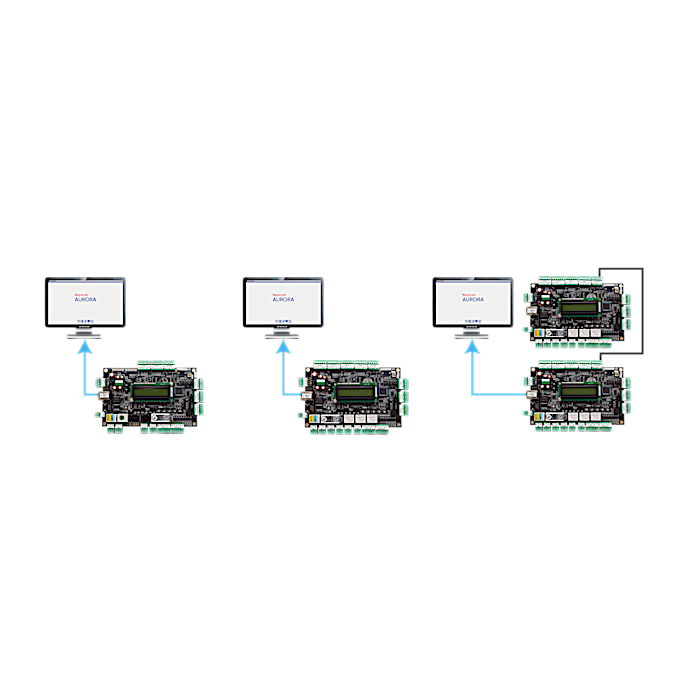

New KC series panels will function in tandem with legacy CA250; CA4500 and CA8500 panels via TCP/IP connection to the same Aurora software platform. Communications between software and panels is 128 Bit AES.

Existing daughter boards remain available for expansion:

• IOCB1616 input/output boards;
• OCB8 relay boards;
• WIEEX2 wiegand extenders remain compatible

Important: New firmware will allow communication with existing OCB8 relay boards and IOCB1616 input/output boards both used to augment system expansion.
