Orthos security interlocks

Orthos Personal Interlocks combine effective single-person access control with flexible security options to meet a wide range of protection requirements. Available in round and square, they can be equipped with biometric verification, weight detection, contact mats, or sensor technology for tailored security solutions.

Certified burglary- and bullet-resistant versions up to RC4 provide enhanced protection for critical infrastructure and other high-security environments where controlled access is essential.

They are used across highly sensitive sectors such as data centers, research facilities, nuclear power plants, financial institutions, and secured areas of government buildings, corporate sites, and airports.

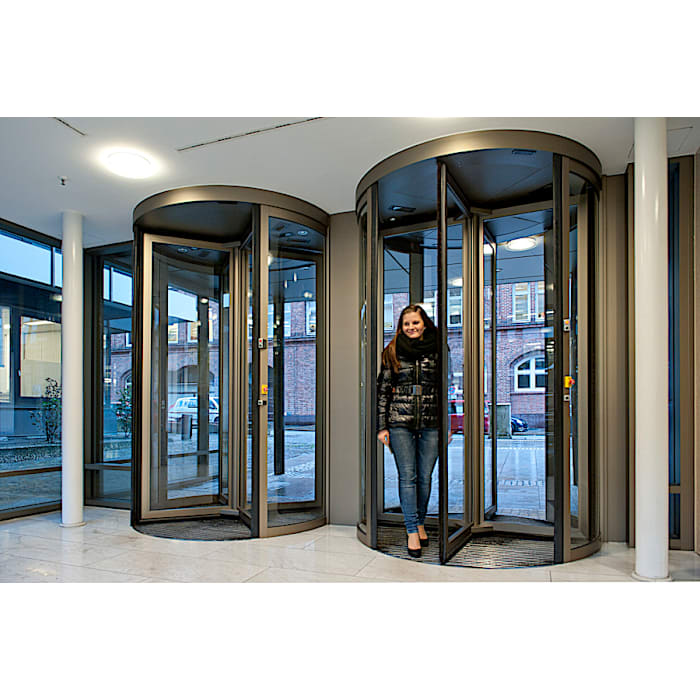

Orthos security interlocks 1
  • Maximum security through reliable single-person access control and authorization verification.
  • Customizable security levels with biometric authentication, weight verification, contact mats, sensors, or interior monitoring.
  • Versatile product range including round and square interlocks for different security concepts.
  • Certified protection with burglary- and bullet-resistant versions.
  • Flexible anti-tailgating technology using weight detection, sensors, or mid-interlock identity verification.
  • Ideal for high-security facilities such as data centers, financial institutions, government buildings, and airports.

Product Details

Orthos Personal Interlocks offer highly flexible, electronically monitored access control designed for maximum security. They ensure reliable single-person passage and prevent tailgating through a combination of authorization checks and optional mid-zone verification. Depending on requirements, the systems can be equipped with biometric identification, weight or presence detection, contact mats, and sensor-based interior monitoring.

Technical Details

Orthos PIL round (S01)

  • Pre-configured dimensions
  • High level of security owing to contact mats, weight scales or sensor systems
  • Burglary-resistant up to RC2
  • Sliding doors as a standard

Orthos PIL cubic (M01)

  • Fully customizable dimensions
  • High level of security owing to contact mats, weight scales or sensor systems, additional light barriers as an option
  • Burglary-resistant up to RC4,  bullet-resistant up to FB4
  • Optional wings and folding wing doors and automatic locking
  • Optional fire door, emergency exit function

Further technical details in the Technical Folder.

Functionalities

  • Locking door leaves with defined default position (inside and outside closed)
  • Sequential automatic opening and closing of both doors
  • Emergency release switch (PMA) inside the interlock for outer door release
  • Presence detection via light curtain or contact mat
  • Tailgating detection via sensor systemsLocking door leaves with defined default position (inside and outside closed)
  • Configurable power failure behavior of doors
  • Flexible door control with external input signals for entry/exit direction
  • Sequential door release ensuring only one door opens at a time
  • Optional integrated lighting inside the interlock

Applications

Designed for maximum security in critical environments, including:

  • Data centers
  • Research facilities
  • Nuclear power plants
  • Financial institutions
  • Restricted areas in government buildings, corporate campuses, and airports
Orthos security interlocks 1
Orthos security interlocks 2
Orthos security interlocks 3
