Product Summary

Security and safety meet elegance

Accommodating a wide range of door sizes and applications, the GP Series panic hardware offers a customizable design with simplicity in specification. Working with our small format interchangeable core cylinders makes control and rekeying of an existing system a breeze.

  • +/- 1/2” adjustability height and width to accommodate opening variances

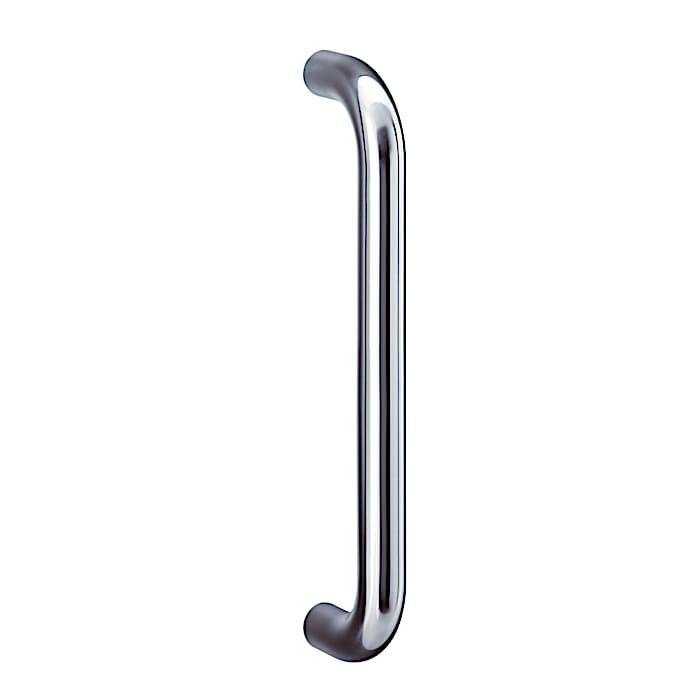

  • Full range of exterior pull options
  • Dogging functionality
  • 3-year warranty

Product Details

Design fits to any application
The new exit hardware series includes variations designed to accommodate the widest possible range of access requirements.

Available Functions

  • GP 1000 Series top latching bolt with manual and electric strikes (fail safe or fail secure)
  • GP 1100 Series bottom latching panic with manual strikes

UL and BHMA-certified

dormakaba's GP1000 Exit Devices are UL and BHMA certified (ANSI/BHMA Grade 1, Type 2). Available in stainless steel and brass, polished or satin finishes, they are used with 1/2" to 3/4" thick tempered safety glass. Also available are complementing, non-functioning dummy handles.

Technical Details


  • Satin Stainless Steel
  • Polished Stainless Steel
  • Oil Rub Bronze Equivalent (613E)
  • Black (693)
  • Powder Coating available upon request


  • For 3/8" through 13/16" glass doors
  • Additional options for Aluminum and wood doors upon request (please specify thickness).
  • Supports up to 120” tall doors
  • Non-standard thickness please specify


Commercial, Retail, Hospitality, Entertainment, Education.

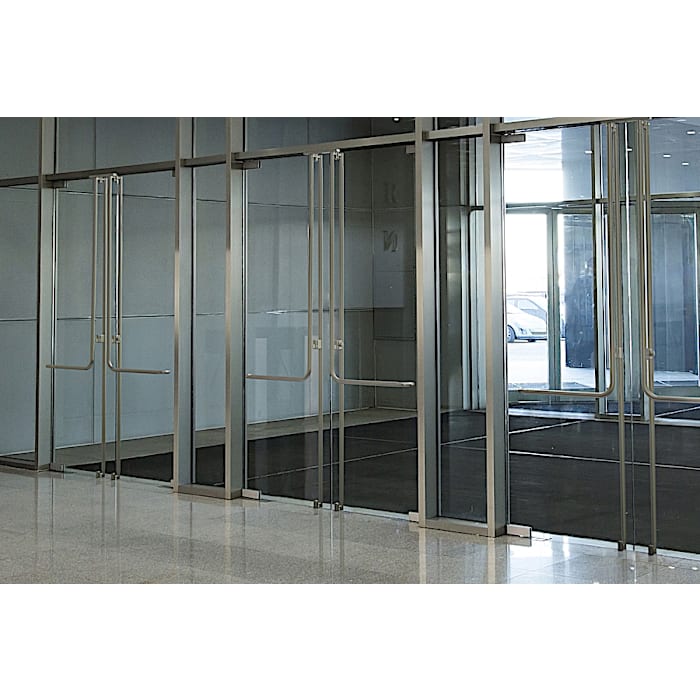

Glass Panic Image 1

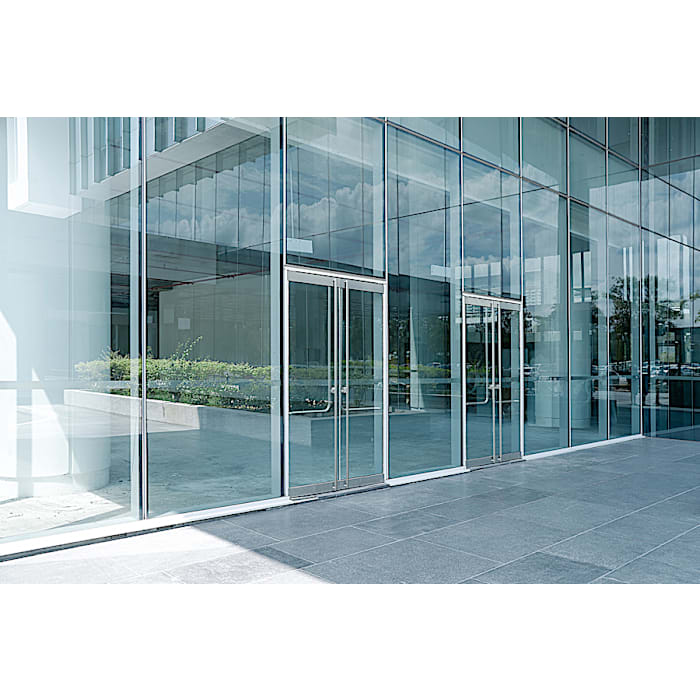

Glass Panic Image 2
