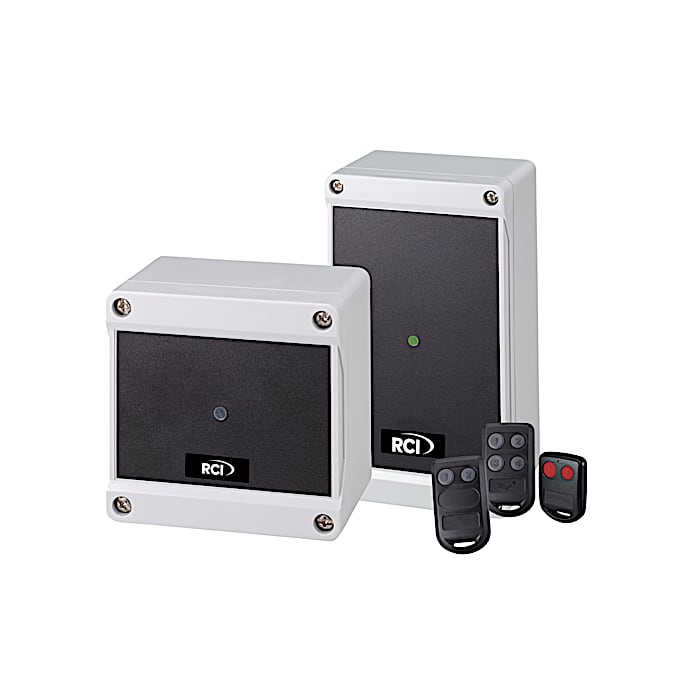

RCI WRR Series Long Range Wireless Receivers

The RCI WRR series is a line of long-range wireless receivers from dormakaba for parking garage, gate and other long-range access control applications. The RCI WRR-22 is a 2-channel wireless receiver for gates and garages with a fob range of up to 100 ft (30.5 m); the RCI WRR-44 is a 4-channel receiver with a range of up to 200 ft (61 m).

Both receivers transmit a signal via hardwired Wiegand (26-bit industry standard) or the Open Supervised Device Protocol (OSDP) for access control panel authentication, and they install and configure with a wide range of access control units. When paired with access control units and software, the wireless receiver permits tracking, usage reporting and assigning access privileges.

The receivers operate at 433 MHz with rolling code plus encryption, run on 12 VDC and function with RCI WRT-2, WRT-4 and WRT-2M series transmitters. The electronics are sealed in a weather-resistant, UL listed enclosure for indoor and outdoor installation.

RCI WRR Series Long Range Receivers
  • Transmits a signal via hardwired Wiegand or OSDP for access control panel authentication
  • Fobs function from up to 100 ft (30.5 m) (WRR-22) or 200 ft (61 m) (WRR-44)
  • Functions with WRT-2, WRT-4 and WRT-2M series transmitters
  • All transmitters may act as a regular fob when used within your facility
  • Electronics sealed in a weather-resistant, UL listed enclosure for indoor and outdoor installations
  • Certifications: FCC, ICC, CE, UL Standard 294, ULC 60839-11-1

Product Details

Technical Details

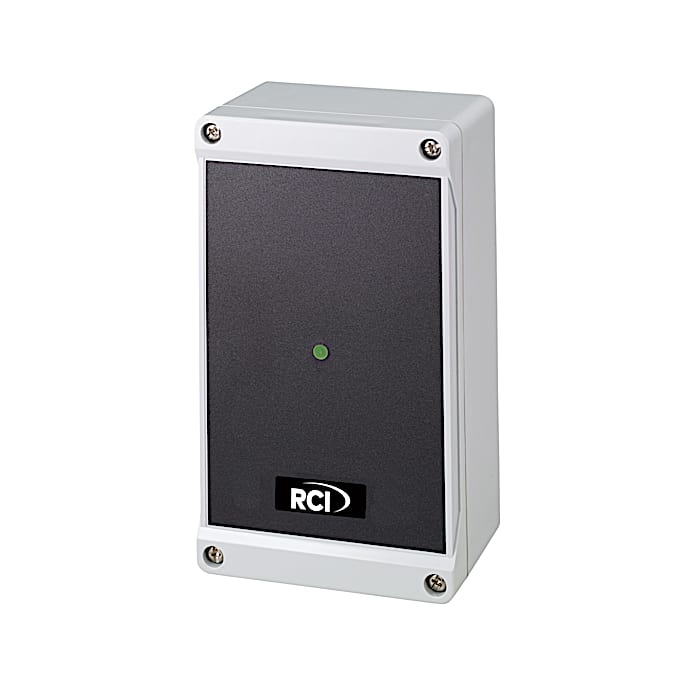

RCI WRR-44

  • Output RF: 433 MHz
  • Transmission: rolling code plus encryption
  • Input power: 12 VDC nominal
  • Current draw: 120 mA typical at 12 VDC
  • Interface: Wiegand (26-bit industry standard) or OSDP
  • Read range: up to 200 ft (61 m)
  • Enclosure: plastic, weather resistant
  • Dimensions: 3.4 in. W x 6.3 in. H x 2.3 in. D (86.4 mm x 160 mm x 58.4 mm)
  • Operating temperature: -40 °F to 149 °F (-40 °C to 65 °C)
  • Weight: 12 oz (340 g)

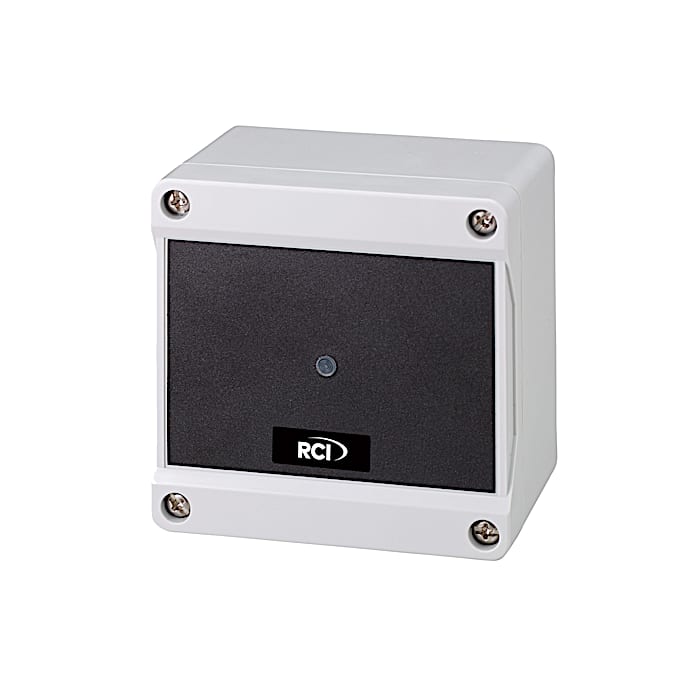

RCI WRR-22

  • Output RF: 433 MHz; UHF proximity: 125 kHz
  • Transmission: rolling code plus encryption
  • Input power: 12 VDC nominal
  • Current draw: 80 mA typical at 12 VDC
  • Interface: Wiegand (26-bit industry standard) or OSDP
  • Read range: up to 100 ft (30.5 m)
  • Enclosure: plastic, weather resistant
  • Dimensions: 3.3 in. W x 3.3 in. H x 1.9 in. D (84 mm x 84 mm x 48.3 mm)
  • Operating temperature: -40 °F to 149 °F (-40 °C to 65 °C)
  • Weight: 8 oz (227 g)

Components

  • RCI WRR-44: 4-channel long-range wireless receiver.
  • RCI WRR-22: 2-channel long-range wireless receiver

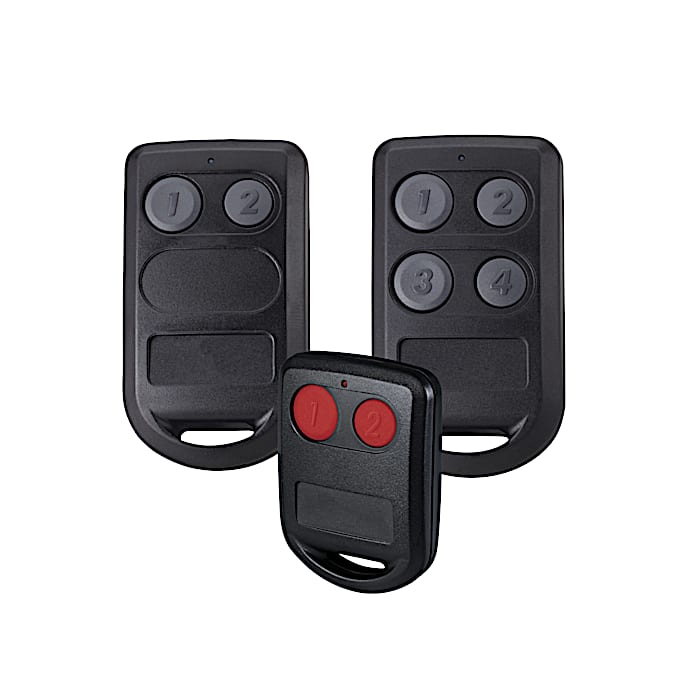

Functions with these transmitters:

  • WRT-2 (all variants)
  • WRT-4 (all variants)

Applications

RCI WRR series receivers and WRT transmitters are suitable for interior or exterior doors, parking lots and gates, as well as entrance systems in a wide range of applications, including retail and commercial, industrial, education and healthcare facilities.
