Credential & ID badge printers

The dormakaba K-SLD series is an entry-level ID card printer and credential printer from IDP, designed for small and mid-size organizations. It is fully compatible with Keyscan Aurora software and prints full-color or monochrome ID cards and customer-branded access control credentials.

The printers deliver reliable printing speeds, quality image reproduction and cost savings. Optional features include Ethernet, smartcard encoding and ultraviolet (UV) printing. The dye-sublimation print engine produces 300 dpi edge-to-edge output, and dual-sided printing is available as an option with the flipper module.

Keyscan Aurora offers simple tools for card design, or you can upload pre-designed corporate templates directly into Aurora to create a customized card within minutes. This makes the K-SLD series a practical badge printer for small businesses that want to produce their own credentials and ID badges in-house.

  • Fully compatible with Keyscan Aurora software (version 1.0.25 or later) for card design and credential printing
  • Full-color or monochrome single-side printing at 300 dpi, edge to edge
  • Monochrome cards in 5 seconds (720 cards/hour); color YMCKO cards in up to 20 seconds (180 cards/hour)
  • Ultraviolet (UV) printing adds a low-cost security layer; smartcard encoding and Ethernet available as options
  • Small, lightweight unit with a single light-emitting diode (LED) button for front operation
  • Upgradable modules and replacement ribbons available

Product Details

Keyscan Aurora software offers simple tools for card design, or you can upload pre-designed corporate templates directly into Aurora so the user can create a customized card within minutes. Small businesses can produce their own customized credentials and ID badges.

  • Use with Aurora Version 1.0.25 or later
  • Small and lightweight
  • Low-cost printing
  • FINE™ imaging technology
  • Color and mono single-side printing
  • 300 dpi with edge-to-edge printing
  • LED button for front operation
  • UV printing provides a low-cost security layer
  • Upgradable modules available
  • Replacement ribbons also available

Technical Details

  • Print type: Dye-sublimation
  • Print area: Edge to edge
  • Resolution: 300 dpi (color and mono); 600 and 1200 dpi (mono only)
  • Dual-sided printing: Optional (with flipper)
  • Monochrome print speed: 5 sec/card (720 cards/hour)
  • Color (YMCKO) print speed: Max. 20 sec/card (180 cards/hour)
  • Memory: 64 MB RAM
  • Display: 1 LED button
  • Supported platforms: Microsoft Windows 2000/2003/XP/Vista/7/8/10, Mac OS, Linux
  • Communication: USB; Ethernet (optional)
  • Power supply: Free voltage (AC 100/200 V, 50 to 60 Hz)
  • Operating temperature: 59 to 95 °F (15 to 35 °C)
  • Operating humidity: 35 to 70%
  • Card feeding: Automatic
  • Card size: ISO CR80, 2.12 x 3.38 in. (54 x 86 mm)
  • Card thickness: 15 mil (0.38 mm), 30 mil (0.76 mm)
  • Card type: PVC, PET, composite PVC
Credential & ID badge printers

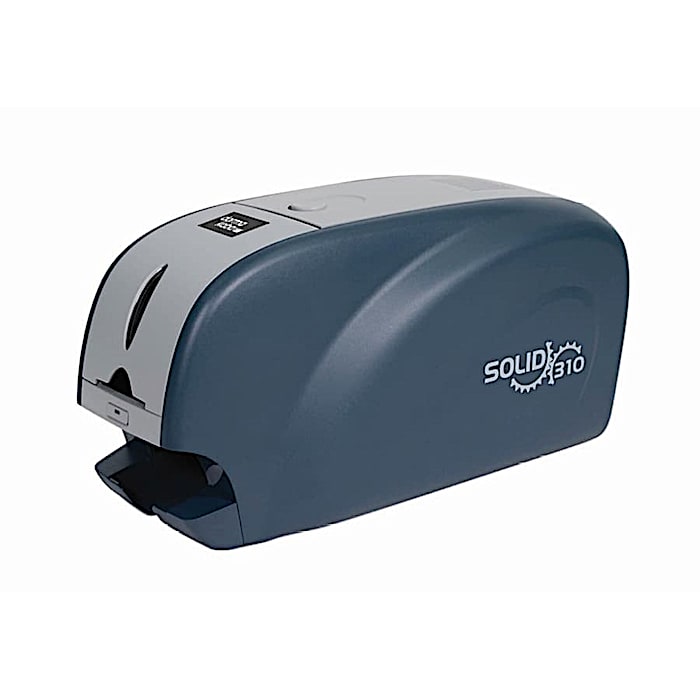

IDP SOLID-310S dormakaba

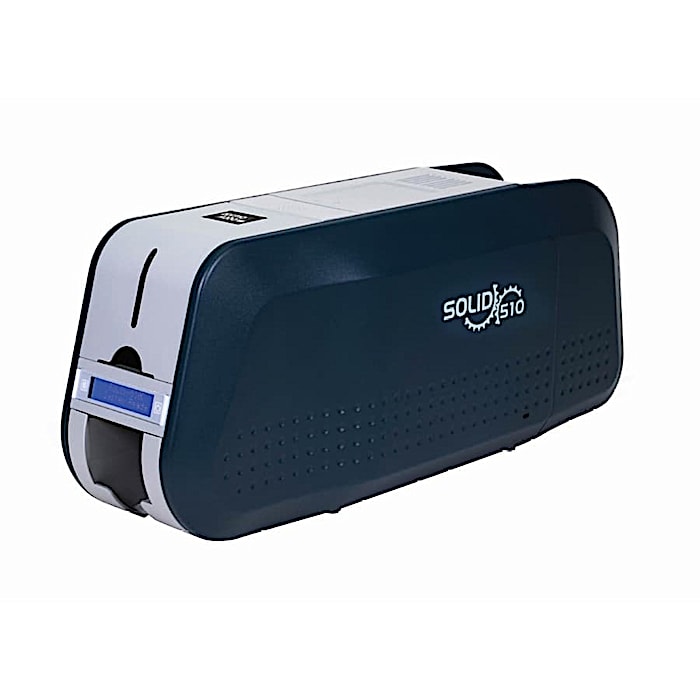

IDP SOLID-510D dormakaba
