Product Summary

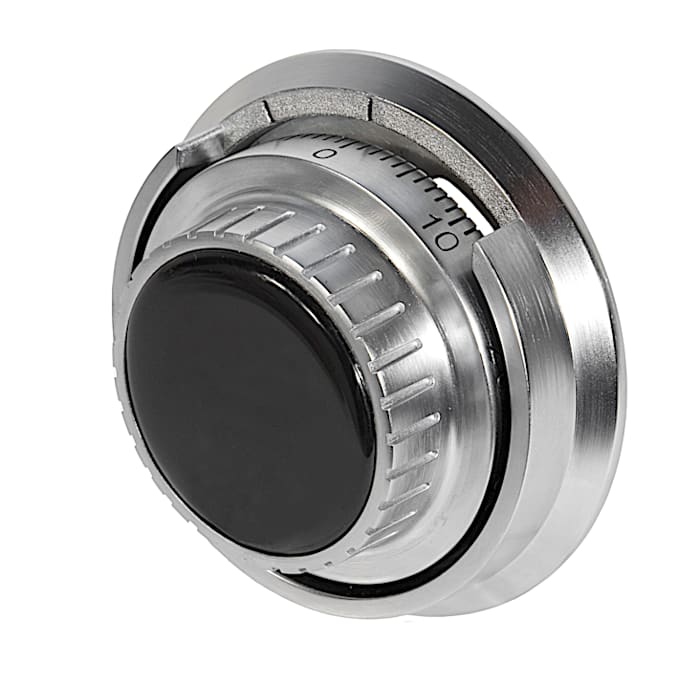

The conical dial and ring combination LA GARD 2085 / 2090 is for the operation of mechanical combination locks.

Product Details

Dial and ring combination

  • External diameter 96 mm
  • Die-cast with satin chrome finish
  • Hardware pack: 2 screws 8-32 x 5/16 PH (8mm)

Scale

  • Top reading
  • Separate change and opening marking

Spindle

  • Thread UNS 5/16"-40, die-cast
  • Projecting 102 mm
  • Usable length: 79 mm for 3 wheels,
  • 73 mm for 4 wheels
  • Dial splined on 43
  • Suitable for all LA GARD mechanical combinations

Weight

  • Approx. 550 g

Technical Details

Options

  • Spindle, steel, projecting 192 mm (usable length: 169 mm for 3 wheels, 162 mm for 4 wheels) - Option code: SPV192

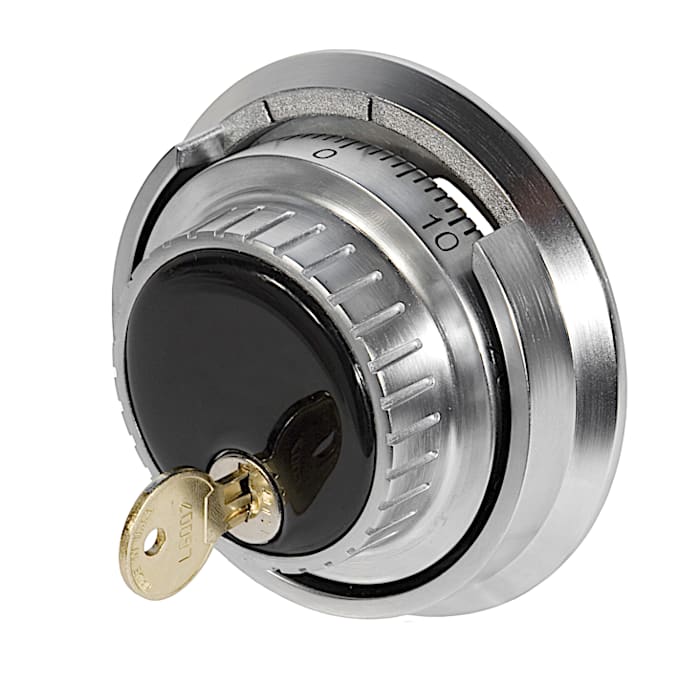

  • With Hudson key lock and 2 numbered keys (LA GARD 2090) - Option code: MPZ002
  • Surface black with white numbers - Option code: OSW
  • Surface brass - Option code: OMS
  • Without logo - Option code: LOL

Accessories

  • Mounting screw M4 x 8 mm (2 pieces needed per dial)
