ED 100/250 LE

The ED 100/250LE is an elegant electromechanical swing door operator ideal for room access and assistance on demand for various fields of application. Tested to 1,000,000 cycles, this robust low-energy door operator is suitable for emergency escape routes as well as use on fire and smoke check doors. The dormakaba low-energy swing door operator system design provides an operator height of only 70 mm.

To ensure uninterrupted operation of the ED 100/250LE in the event of mains power failure an integrated emergency power supply is available.  This battery backup unit is fitted within the cover of the operator.  Suitable for both new and existing ED 100/250 installations for single or double doors.


ED 100 / 250 LE Electromechanical Swing Door Operator
  • Manual operation with assistance on demand
  • Suitable for use on emergency escape and fire doors
  • Swing door operator tested to 1,000,000 cycles
  • Push or Pull version for single or double leaf doors
  • Door widths up to 1100mm (ED100) and 1600mm (ED 250)
  • Door weights up to 160kg (ED 100) and 400kg (ED 250)
  • Operation in the event of mains power failure available with the addition of integral ED UPS

Product Details

Benefits

  • Electromechanical swing door system has an elegant visual appearance: dormakaba XEA design provides an operator height of only 70mm
  • Low noise levels through multi-stage gearing
  • Efficient closing due to an electronic latching action enabling the motor to support the spring to overcome doors seals, room to room pressure differentials and wind loads
  • Optional additional safety: Compatible with IRS safety sensors where applications are for particularly vulnerable users
  • Optional integrated door co-ordinator to ensure the correct closing of rebated double doors

Field of Application

  • Automatic door entry system for single or double-leaf swing doors
  • Manual use or activation push pad, linking to access control systems and other actuation devices
  • Swing door system suitable for use on projects to meet EN 16005 - "Power operated pedestrian doorsets. Safety in use. Requirements and test methods"
  • Suitable for room access and entrance doors to meet the relative legislative requirements for disabled access
  • The pull version with slide channel and the push version with standard arm are both suitable for use on emergency escape and fire doors
  • When fitted to fire doors with safety sensors please refer to certifire certificate CF844.
ED 100 / 250 LE Electromechanical Swing Door Operator

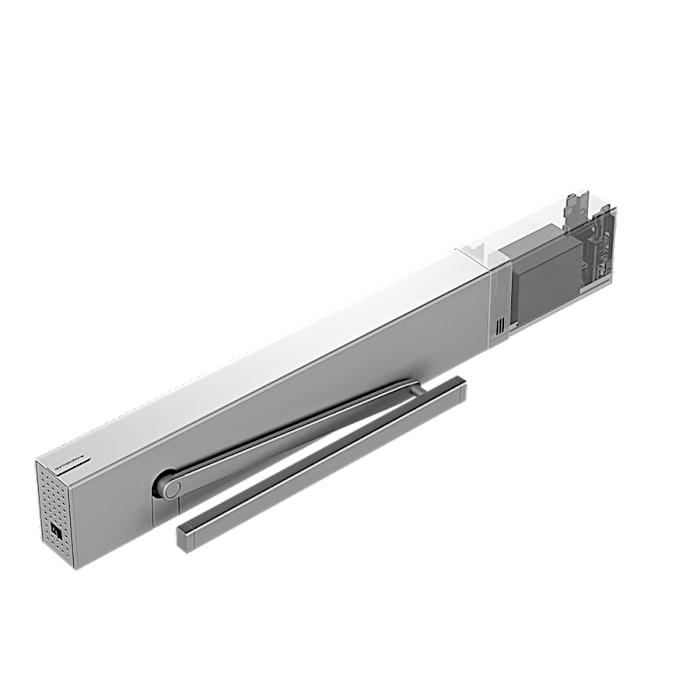

ED Single with UPS
ED with UPS Double
