RC Touch

RC Touch enables intuitive on-site control of automated doors and security gates via a modern 10" touchscreen. Connected through Ethernet or Wifi, it allows operators to supervise and manage up to 10 Connector One equipped entrances from a single, easy-to-use interface. RC Touch simplifies day-to-day door management in reception areas and other supervised environments.

RC Touch Front view
  • Control and monitor up to 10 automated doors or security gates from a single interface
  • Automatic door detection that automatically configures the appropriate control functions for the detected door type
  • One-touch operation to open or lock all connected entrances simultaneously
  • Flexible connectivity via Ethernet or Wi-Fi
  • Secure communication through OPC UA technology
  • Flexible installation options with wall mounting or table stand placement

Product Details

Supported Products:

Tripod turnstiles
Kerberos TPB

Turnstiles
Charon HTS, Kentaur FTS

Swing doors
Charon HSD, Kentaur FGE-Mxx

Sensor barriers
Argus HSB, Argus 40/60/80, Argus V60

Revolving doors
Geryon SRD

Security interlocks
Orthos PIL-M02

Swing door operators
ED 100/250

Sliding door operators
ES PROLINE

Technical Details

Screen size                                   10.1” LCD touchscreen (16:10)

Resolution                                     1280 x 800

Brightness                                     280 cd/m²

Touch technology                          PCAP

Dimensions                                   259.4 mm x 178.4 mm x 28 mm

Weight                                           927 g without table stand

Power supply                                12 V DC / 1.5 A

Operating temperature                 0°C to 40°C

Connectivity                                  Ethernet, WiFi (802.11a/b/g/n/ac)

Other interfaces                            USB, SD card

Communication protocol               OPC UA

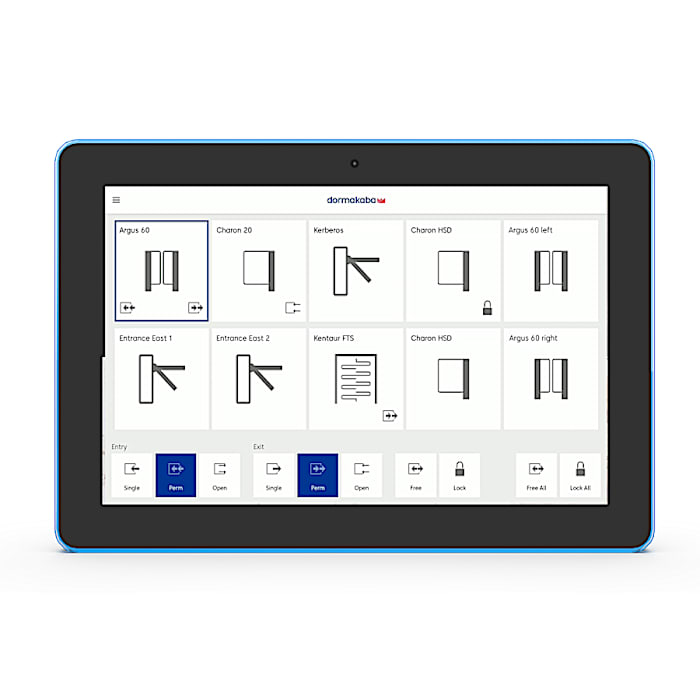

RC Touch Front view

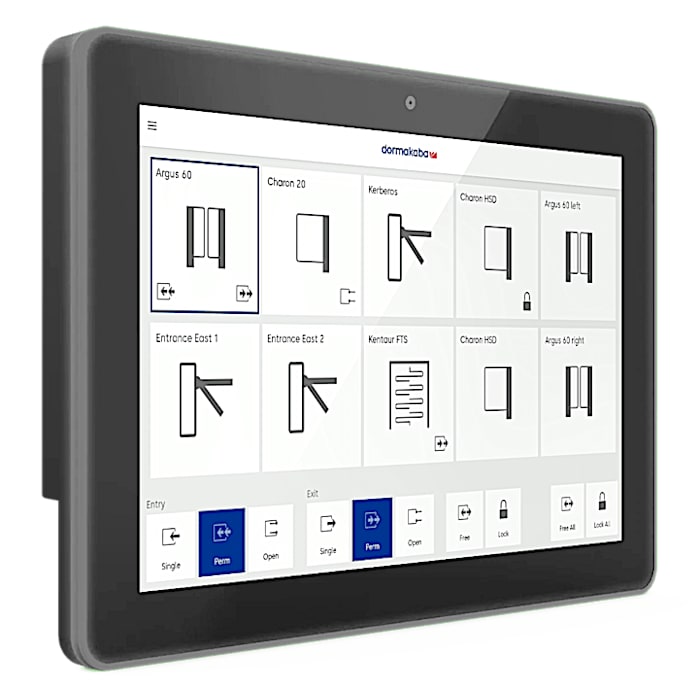

RC Touch Perspective view
