ST FIRE sliding fire protection door in wood with glass insert

Automatic sliding fire protection door EI30 made of wood with glass insert for sophisticated interior concepts. The combination of a natural wood surface and tested fire protection technology creates a warm, high-quality atmosphere and combines design with functional protection. Ideal for projects where architectural quality and safety need to harmonize.

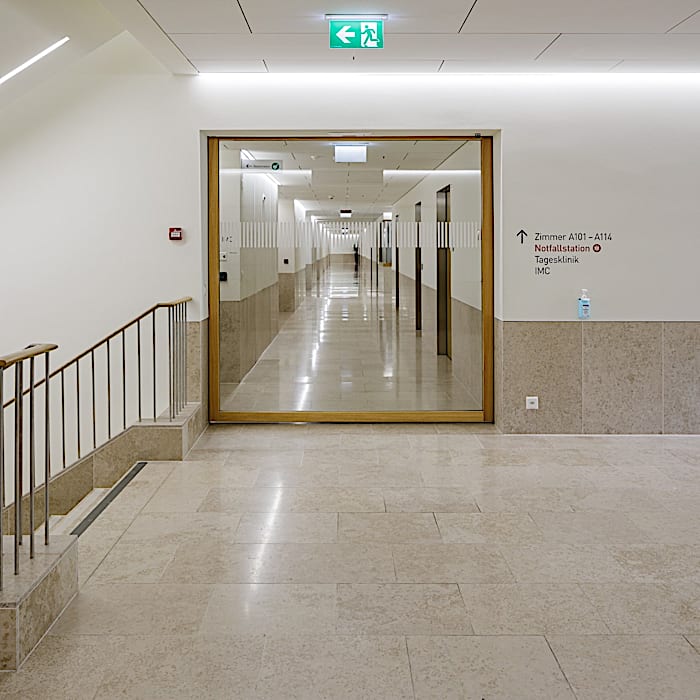

ST Fire with ES Proline (Wood/Glas)
  • Natural wood look
  • surface as desired
  • threshold free
  • high-quality workmanship
  • combination of design and safety

Product Details

System Variants

  • Single- and double-leaf
  • Telescopic
  • With and without side panel

Technical Details

Maximum Door Dimensions

  • Single-leaf clear opening max. W 2,353 mm × H 3,000 mm
  • Double-leaf clear opening max. W 3,000 mm × H 3,000 mm

Functionalities

Escape Route Options

  • System 3: Emergency button and release rod/Bowden cable
  • System 4: Swing-out/swing-in
  • Escape route safety device as per SN EN 13637 with SafeRoute

Options

  • Insulating glazing
  • Multi-point locking
  • Radiation protection

Applications

The ST FIRE in wood/glass is especially suitable for use in

  • high-quality office and company buildings
  • high-rise buildings
  • laboratories
  • hospitals
  • retirement homes
  • listed buildings
  • educational facilities
ST Fire with ES Proline (Wood/Glas)
ST Fire with ES Proline 2 (Wood/Glas)
